Timing Belt

  1. Check the belt for oil or dust deposits. Replace, if necessary.

    Small deposits should be wiped away with a dry cloth or paper. Do not clean with solvent.

  2. When the engine is overhauled or belt tension adjusted, check the belt carefully. If any of the following flaws are evident, replace the belt.
    NOTE:
    • Do not bend, twist or turn the timing belt inside out.
    • Do not allow the timing belt to come into contact with oil, water and steam.

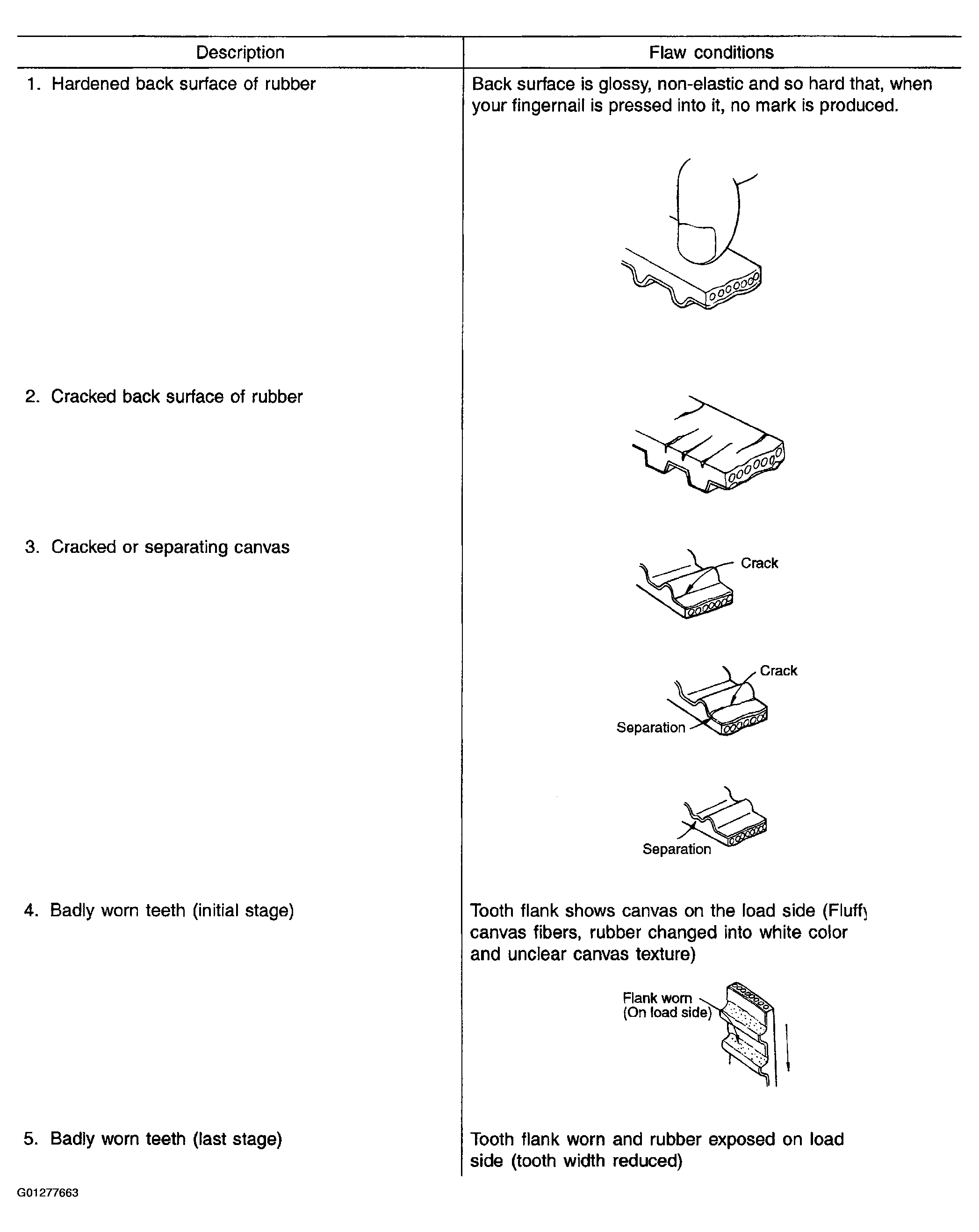

    Fig 1: Inspecting Timing Belt (1 Of 2)
    G01277663Courtesy of HYUNDAI MOTOR CO.

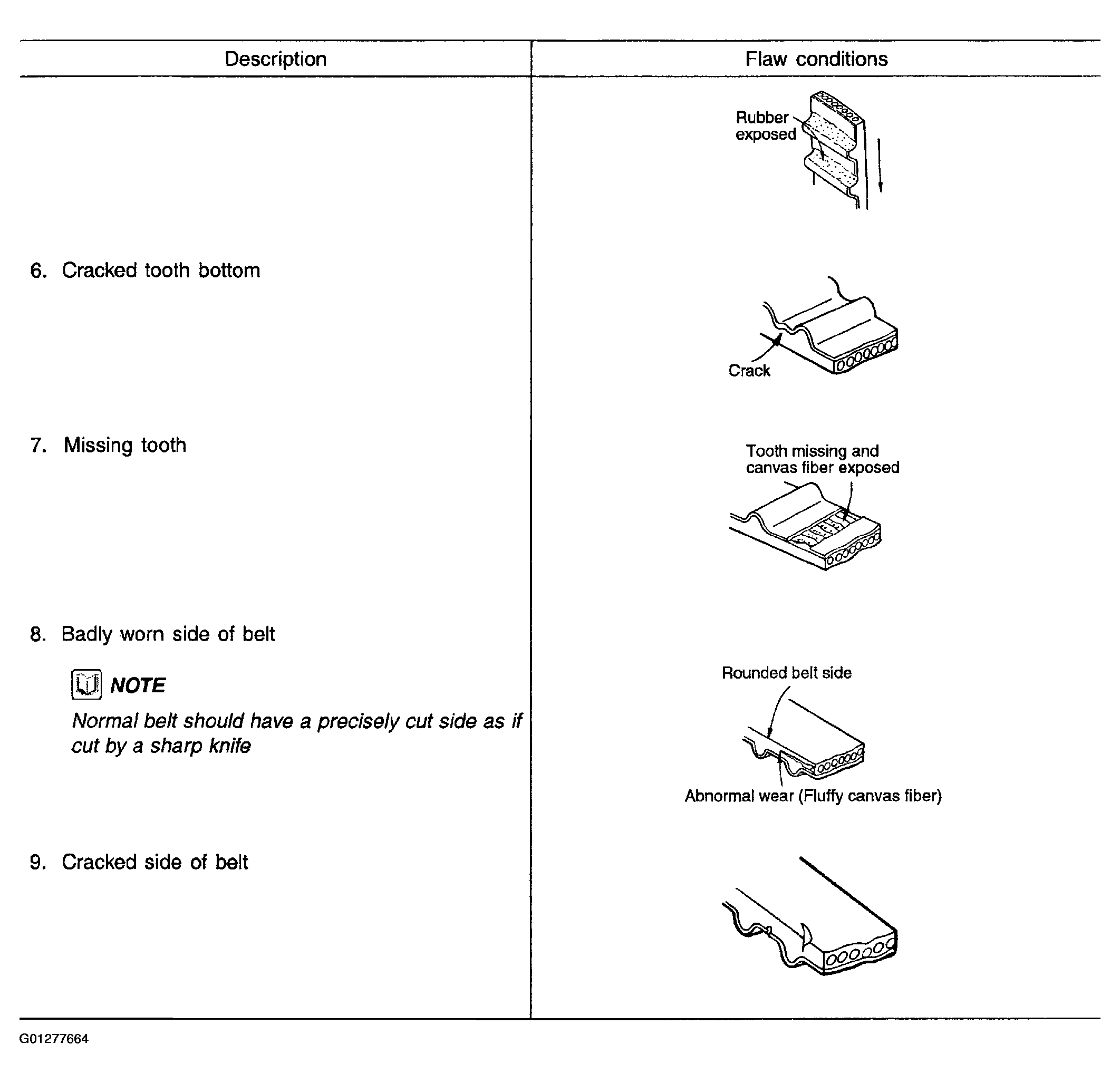

    Fig 2: Inspecting Timing Belt (2 Of 2)
    G01277664Courtesy of HYUNDAI MOTOR CO.
