Home >> Hyundai >> 2002 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.0L DOHC Engine >> Main Moving System >> Flywheel >> Components

Main Moving System: Flywheel: Components

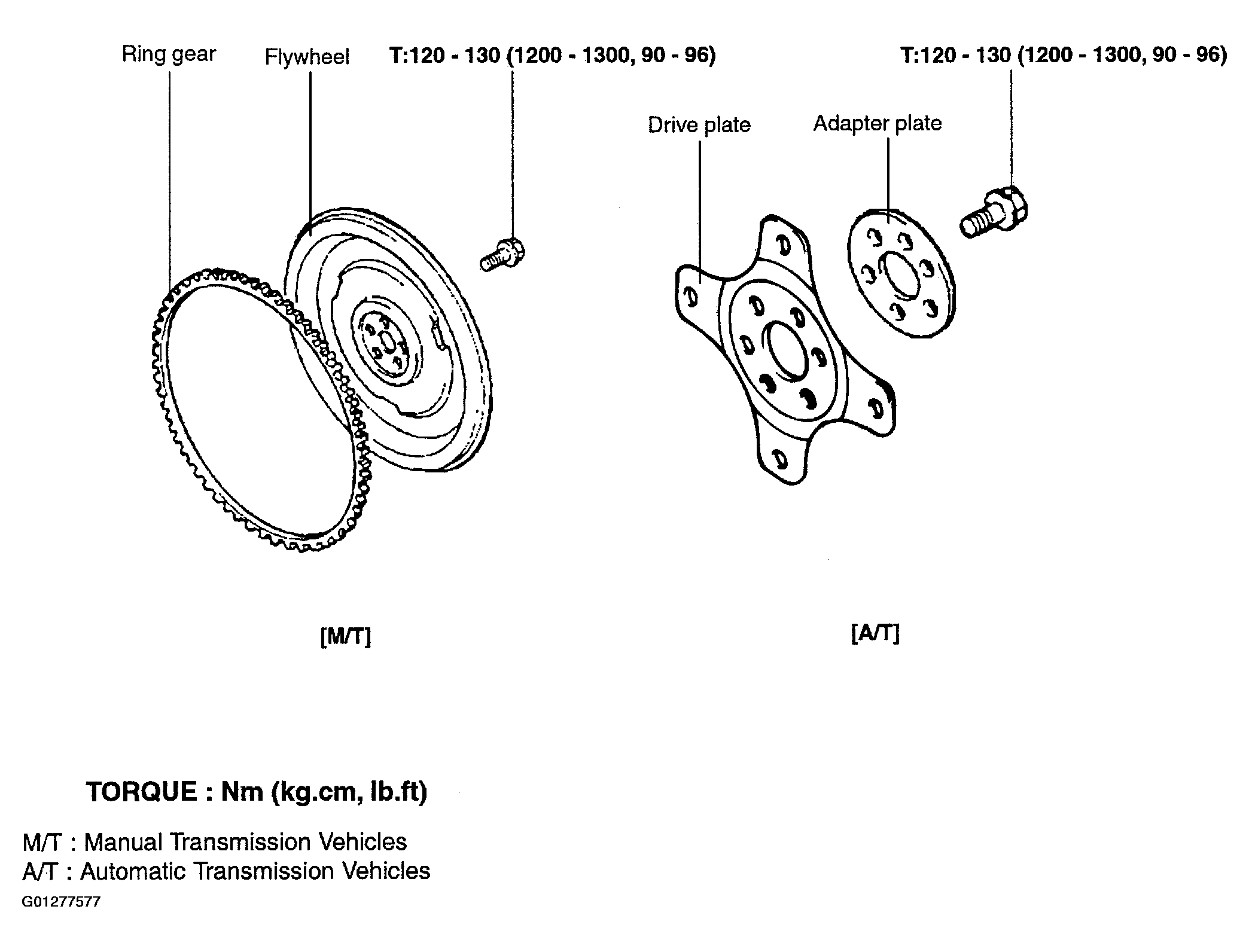

Fig 1: Flywheel Components

G01277577

Courtesy of HYUNDAI MOTOR CO.
