Main Moving System: Crankshaft: Components

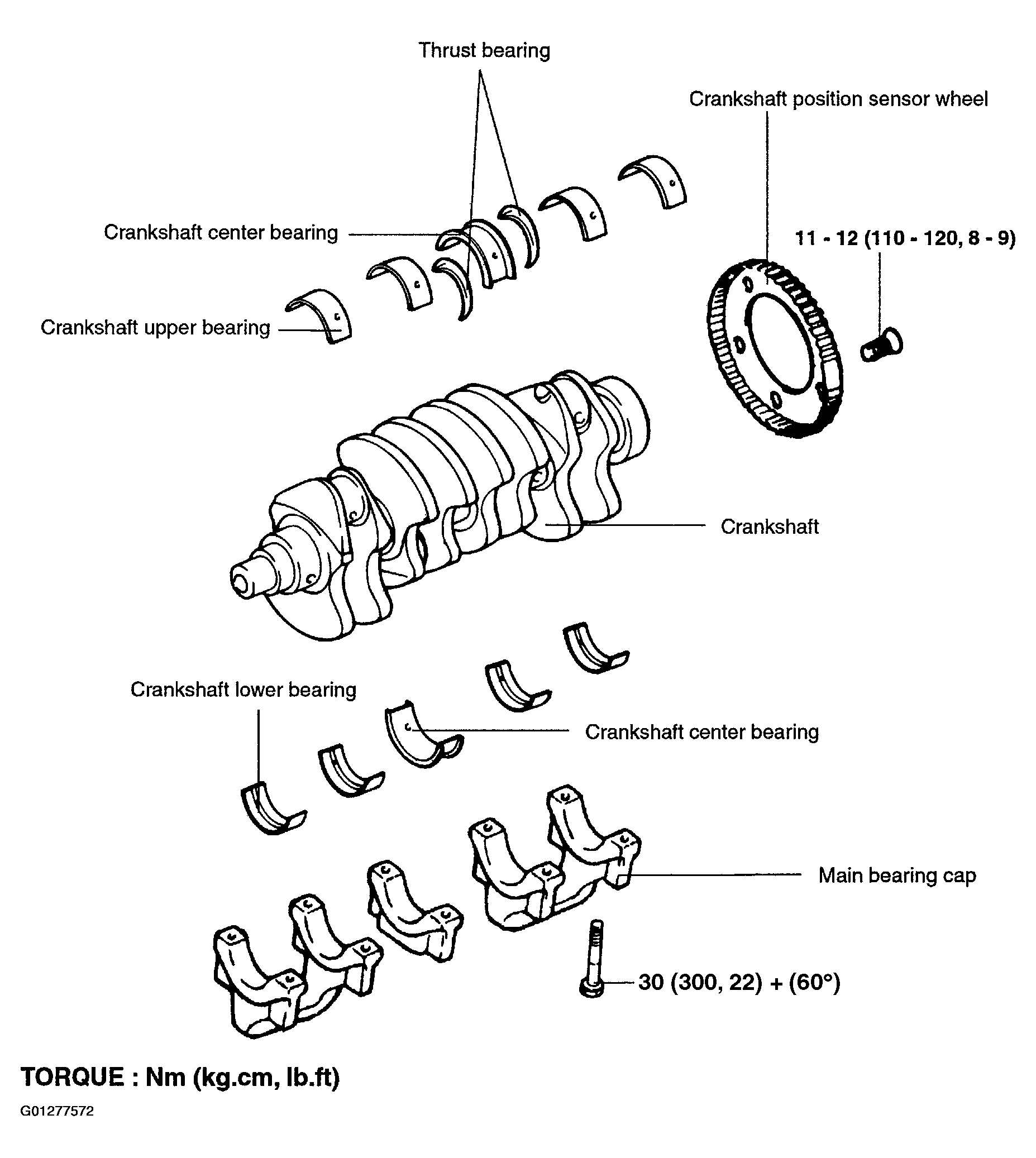

Fig 1: Crankshaft Components

G01277572

Courtesy of HYUNDAI MOTOR CO.
