Chain Guide

  1. Check the chain guide for bend, crack or damage, Replace if necessary.
  2. Check the rubber part of chain guide for abnormal wear.

    Replace if necessary.

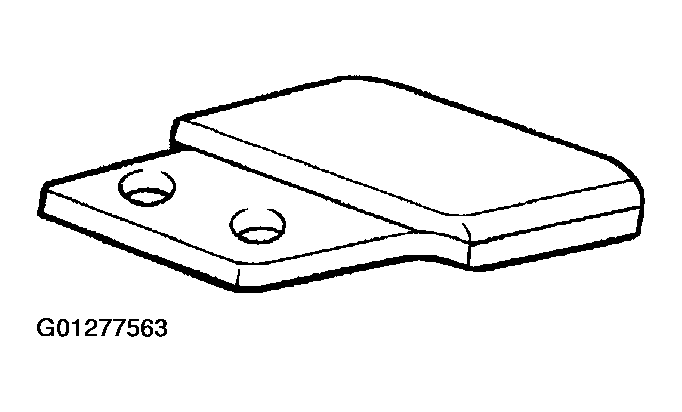

    Fig 1: Identifying Chain Guide
    G01277563Courtesy of HYUNDAI MOTOR CO.
