Main Moving System: Camshaft: Components

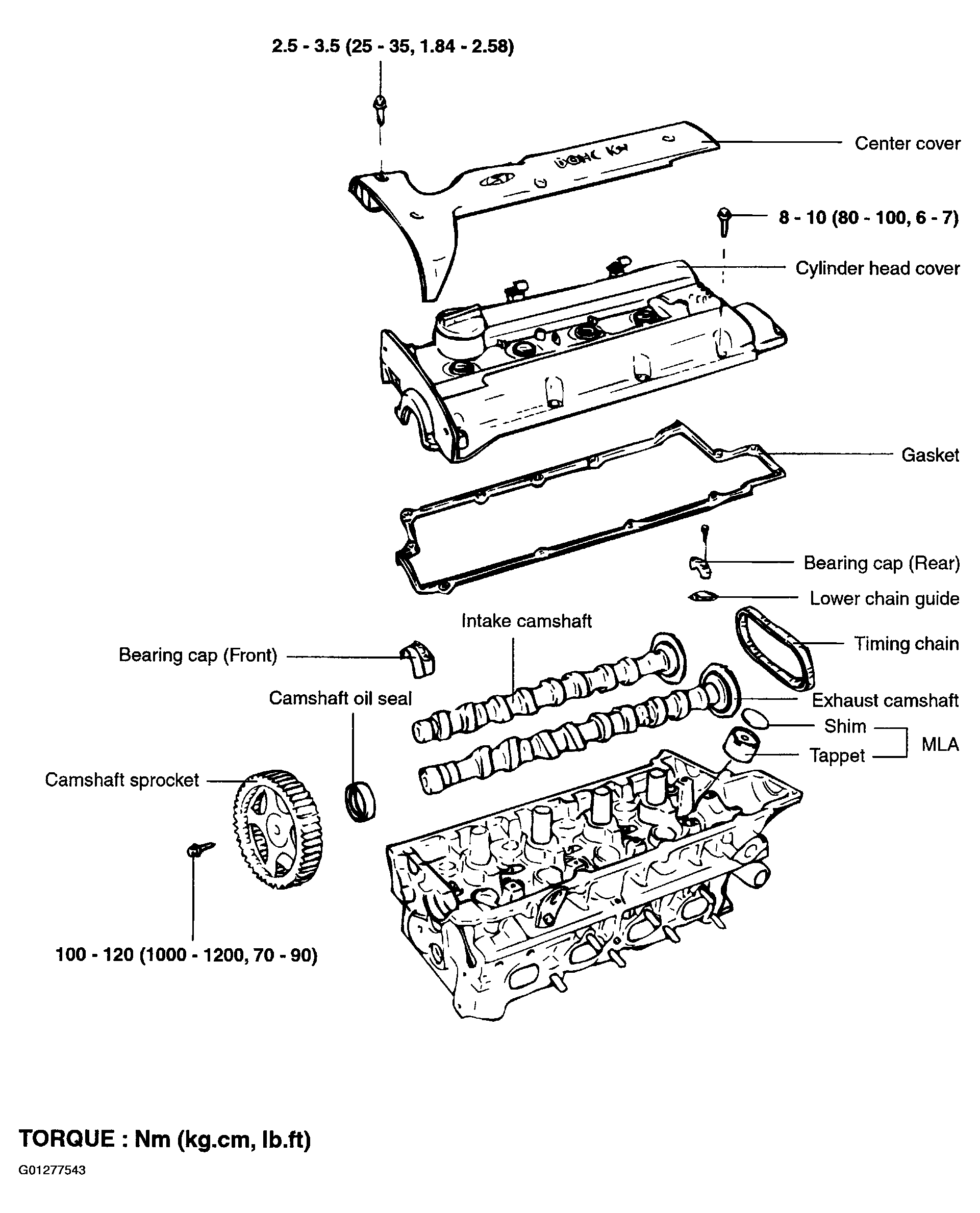

Fig 1: Camshaft Components

G01277543

Courtesy of HYUNDAI MOTOR CO.
