Intake Manifold: Removal

  1. Remove the engine cover.
  2. Remove the intake air hose connected to the throttle body.
  3. Remove the accelerator cable.
  4. Remove the P.C.V. hose and brake booster vacuum hoses.
  5. Disconnect the vacuum hose connections, ISA and TPS connector.
  6. Disconnect the high pressure fuel hose connection after relieving pressure in the fuel rail to prevent fuel from spilling.
  7. Remove the intake manifold.
  8. Remove the intake manifold assembly and gasket.
  9. Disconnect the fuel injector harness connector.
  10. Remove the delivery pipe with the fuel injectors.
    CAUTION: Be careful not to drop the injectors when removing the delivery pipe.

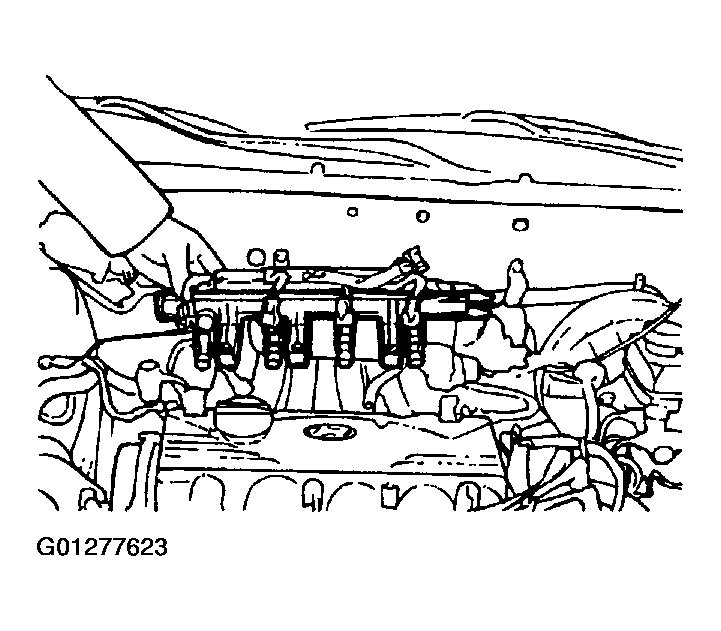

    Fig 1: Removing Fuel Delivery Pipe
    G01277623Courtesy of HYUNDAI MOTOR CO.
