Intake Manifold: Installation

  1. Replace the intake manifold gasket and install the intake manifold.
    CAUTION: Be careful not to drop the injectors when removing the delivery pipe.

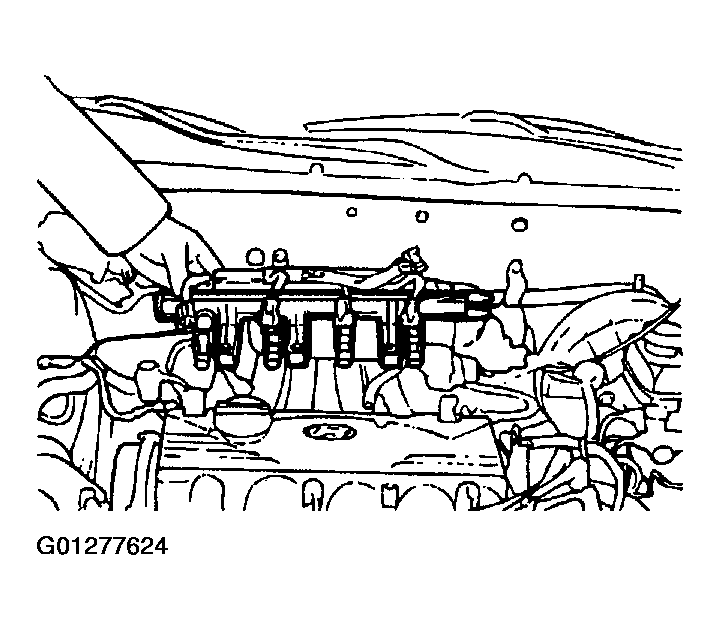

    Fig 1: Installing Fuel Delivery Pipe
    G01277624Courtesy of HYUNDAI MOTOR CO.
  2. Install the delivery pipe with the fuel injectors.
  3. Connect the fuel injector harness connector.
  4. Install the intake manifold stay.
  5. Connect the high pressure fuel hose connection.
  6. Install the P.C.V hose and brake booster vacuum hose.
  7. Install the intake air hose to the throttle body.
  8. Install the accelerator cable.
  9. Connect the ISA and TPS wire harness connector.
