Intake Manifold: Components

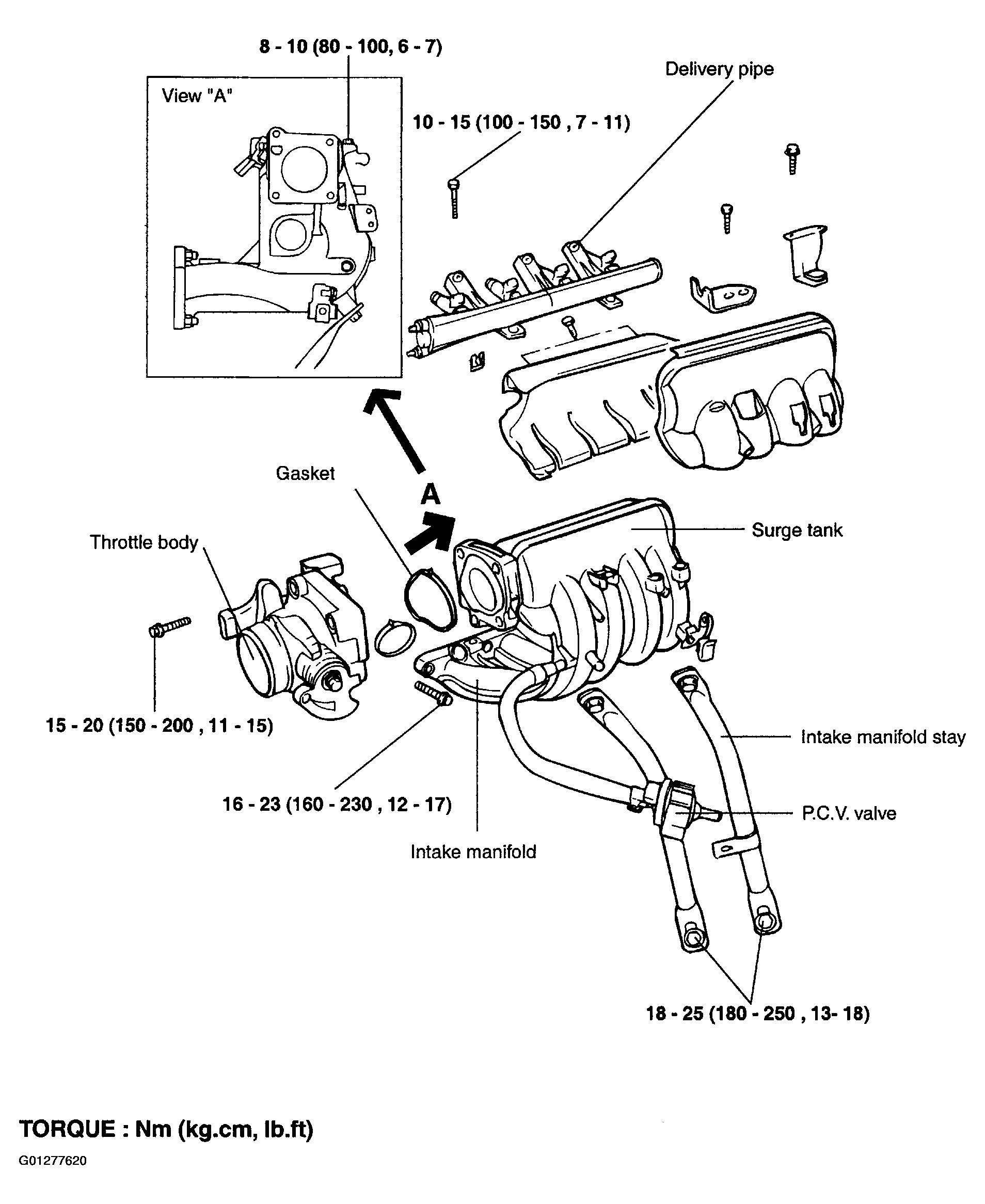

Fig 1: Intake Manifold Components
G01277620Courtesy of HYUNDAI MOTOR CO.
