2.0L DOHC Engine: General: Troubleshooting

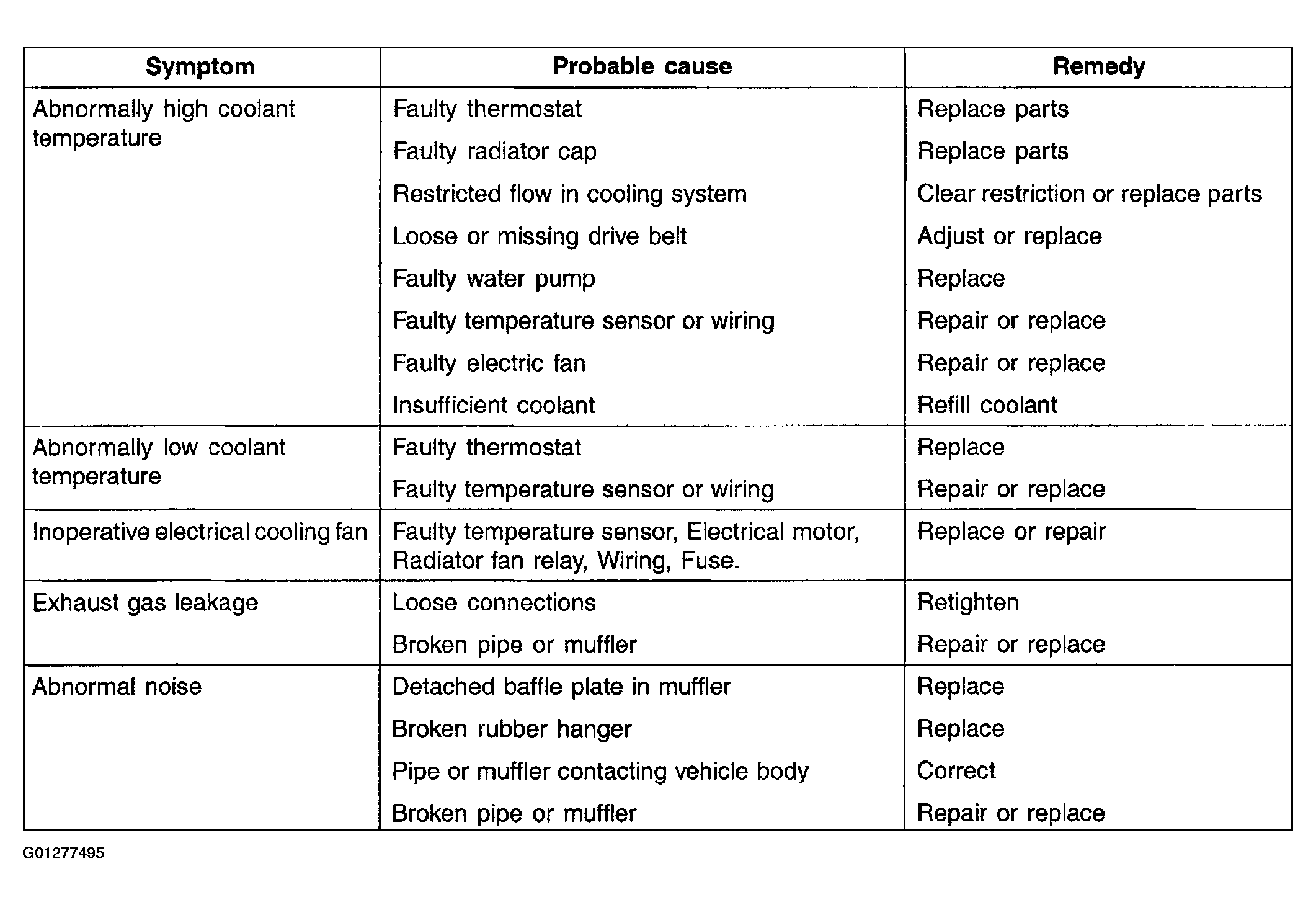

Fig 1: Troubleshooting Symptom Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

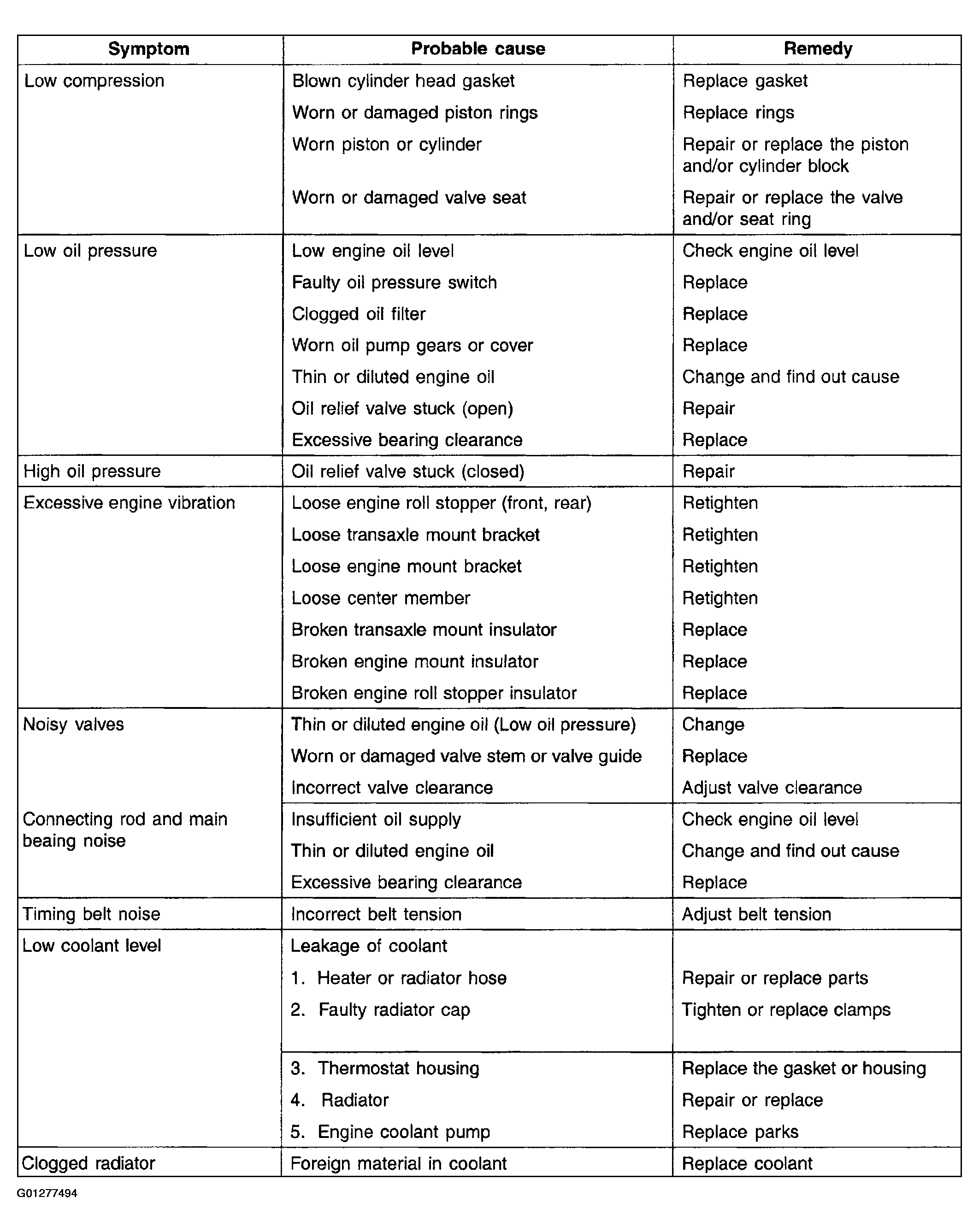

Fig 2: Troubleshooting Symptom Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
