Specific Gravity Test: Notes

  1. Measure the specific gravity of the coolant with a hydrometer.
  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature, using the following table for reference.

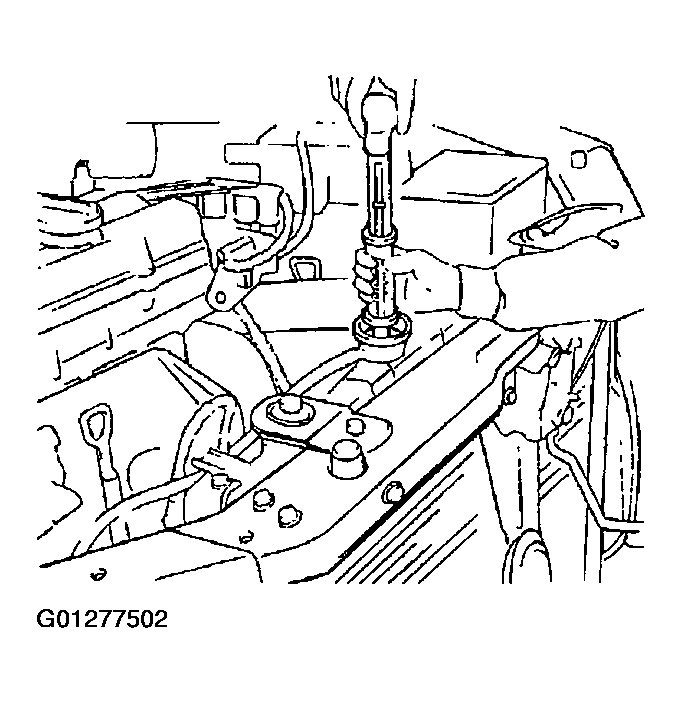

    Fig 1: Measuring Coolant Specific Gravity
    G01277502Courtesy of HYUNDAI MOTOR CO.
