Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
2.0L DOHC Engine
>>
General
>>
Special Tools
Special Tools

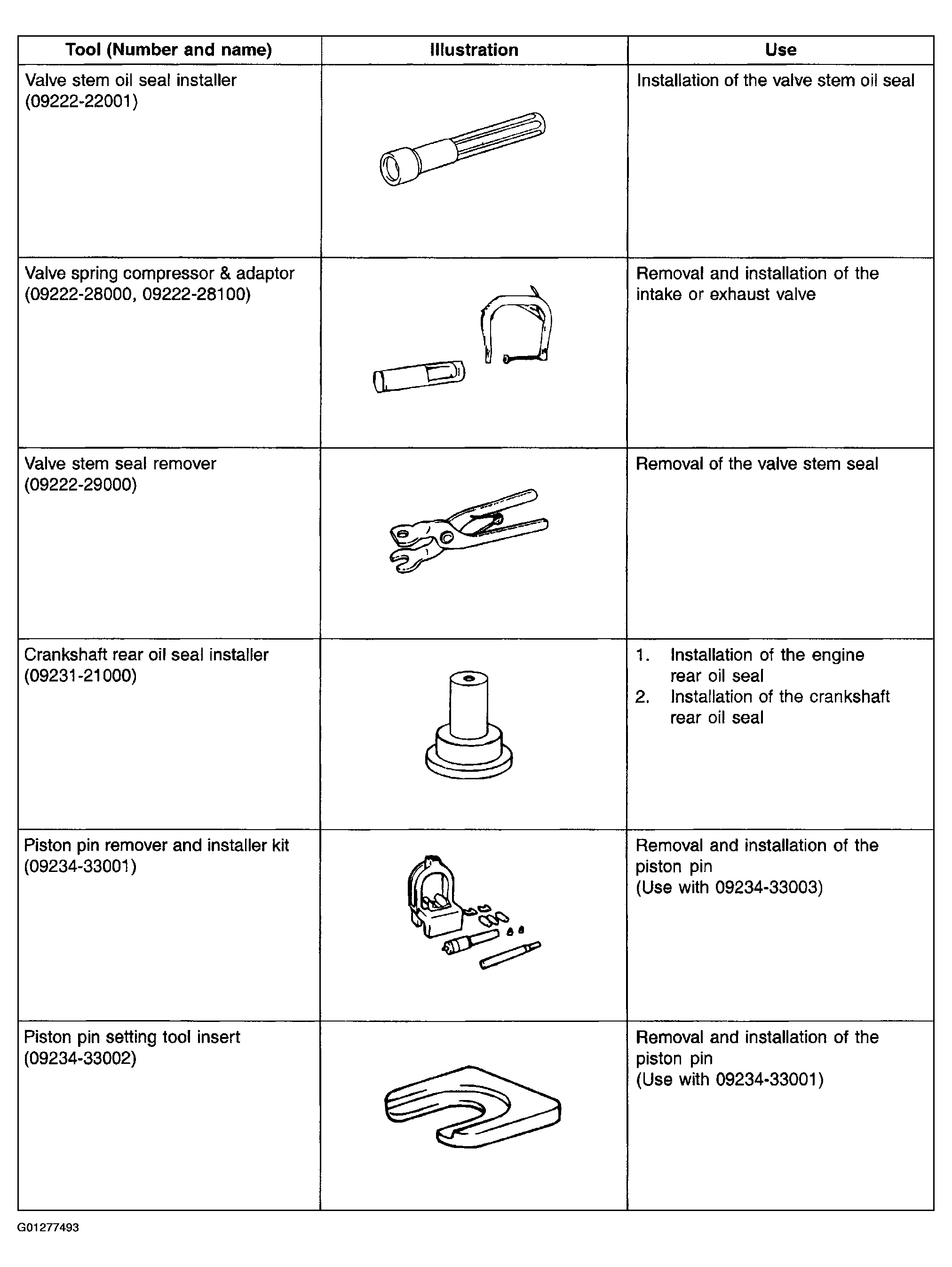

Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

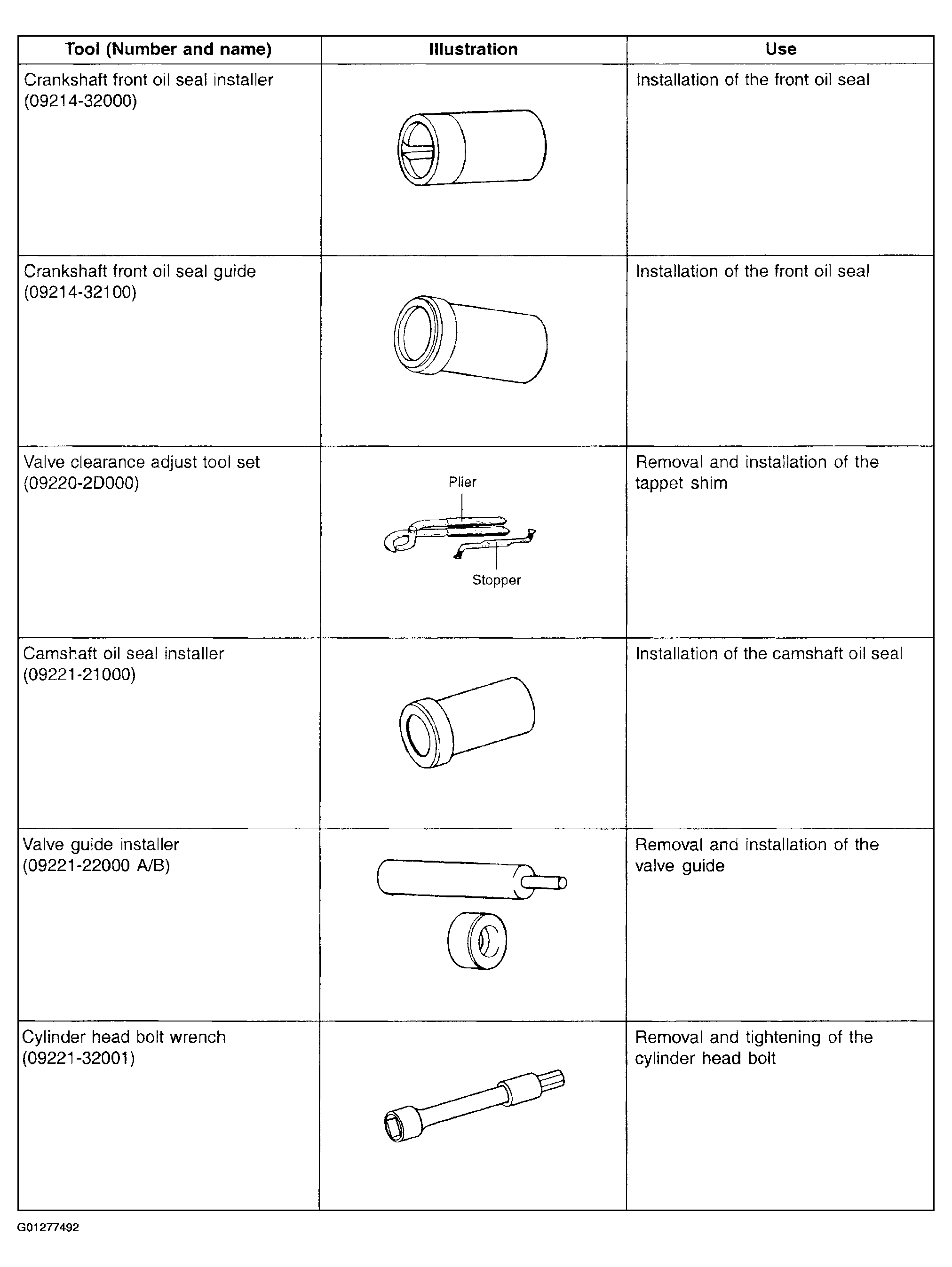

Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
