Transmission Mounting

  1. Verify that the stopper is correctly inserted into the inner pipe in order not to move.
  2. Install the stopper after making sure it is positioned correctly.

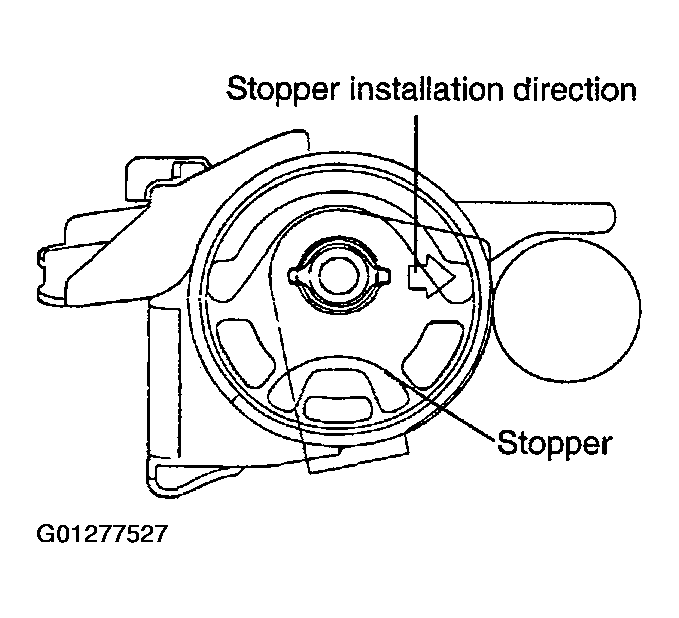

    Fig 1: Identifying Proper Stopper Installation
    G01277527Courtesy of HYUNDAI MOTOR CO.
