Rear Roll Stopper

  1. Install the insulator in the correct angle.

    A/T: 33 +/- 3°

    M/T: 20 +/- 3°

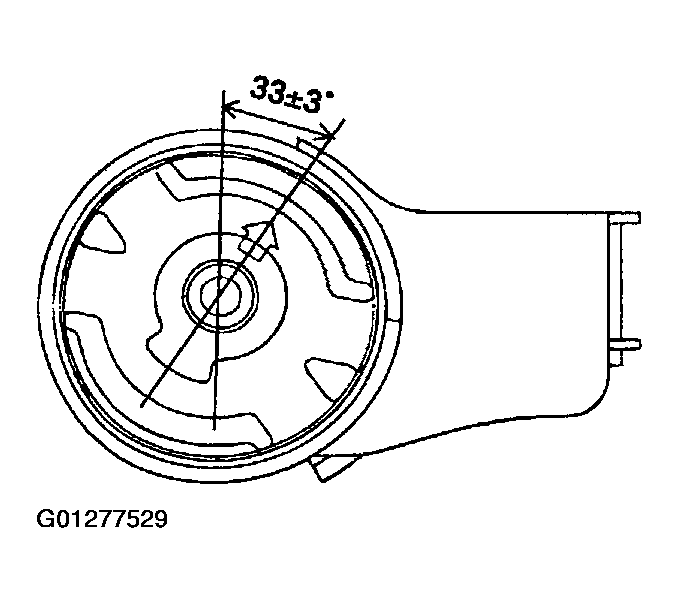

    Fig 1: Identifying Proper Rear Roll Stopper Installation
    G01277529Courtesy of HYUNDAI MOTOR CO.
