(F4A42 Model)

  1. Remove the battery terminal and battery.
  2. Remove the drain plug and drain the automatic transaxle fluid.

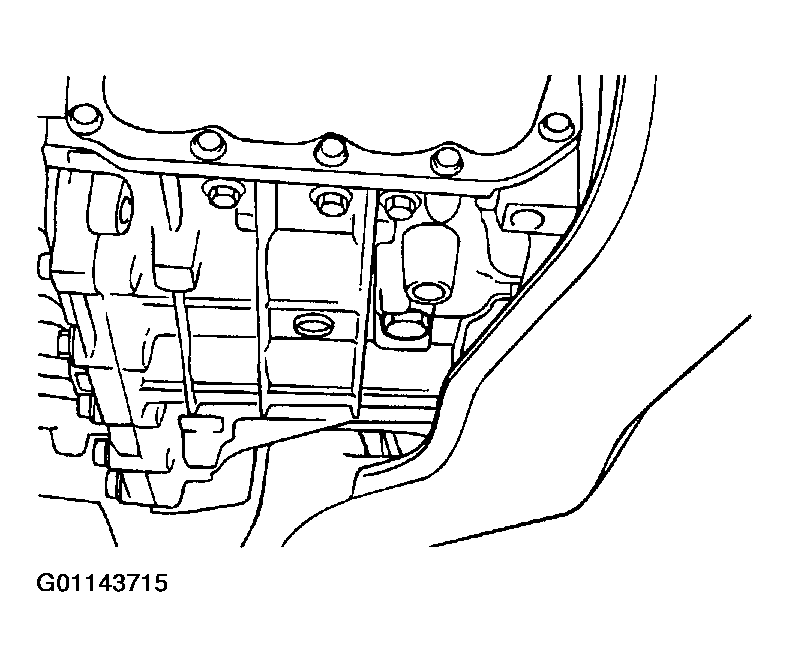

    Fig 1: Identifying Drain Plug
    G01143715Courtesy of HYUNDAI MOTOR CO.
  3. Remove the air cleaner assembly.
  4. Disconnect the speedometer sensor connector.
  5. Disconnect the transaxle range switch connector, solenoid connector, and oil temperature sensor connector.

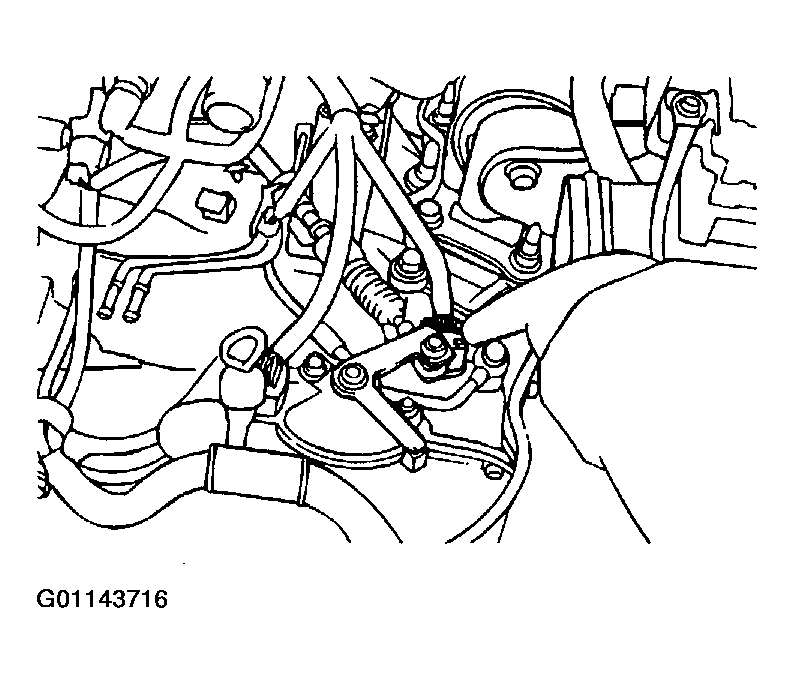

    Fig 2: Identifying Solenoid Connector
    G01143716Courtesy of HYUNDAI MOTOR CO.
  6. Remove the oil cooler hose.

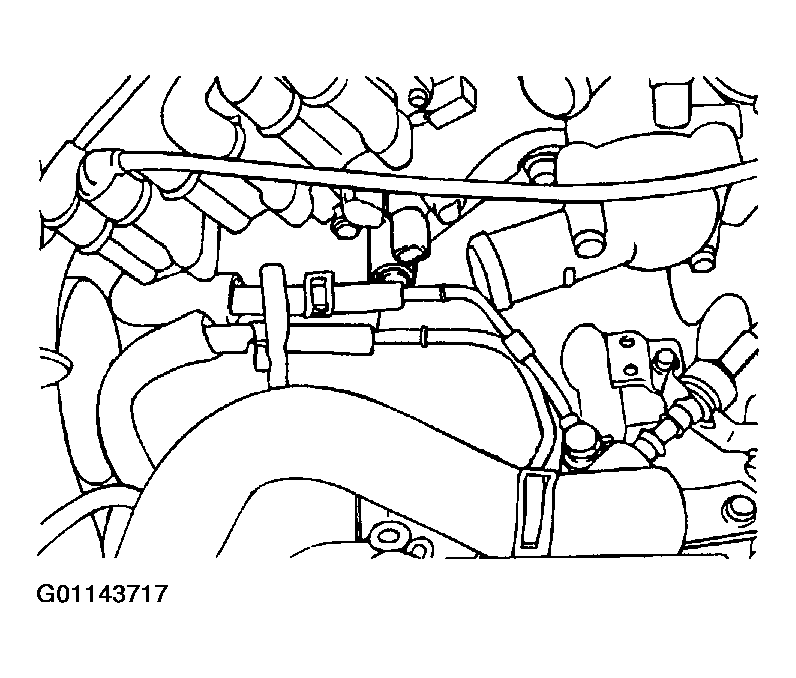

    Fig 3: Identifying Oil Cooler Hose
    G01143717Courtesy of HYUNDAI MOTOR CO.
  7. Remove the control cable.

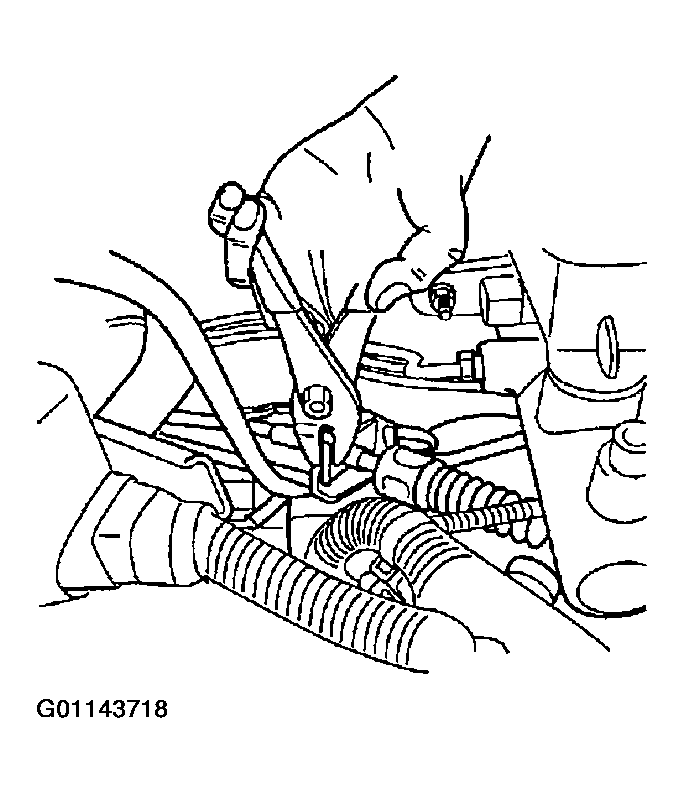

    Fig 4: Removing Control Cable
    G01143718Courtesy of HYUNDAI MOTOR CO.
  8. Remove the steering u-joint bolt and return tube mounting bolts.
    NOTE: Mark a mating line on the steering column universal joint and the gear box before disassembling to make the installation easier.
    Fig 5: Identifying Mating Line On Steering Column Universal Joint
    G01143719Courtesy of HYUNDAI MOTOR CO.
  9. Separate the power steering oil pump hose.

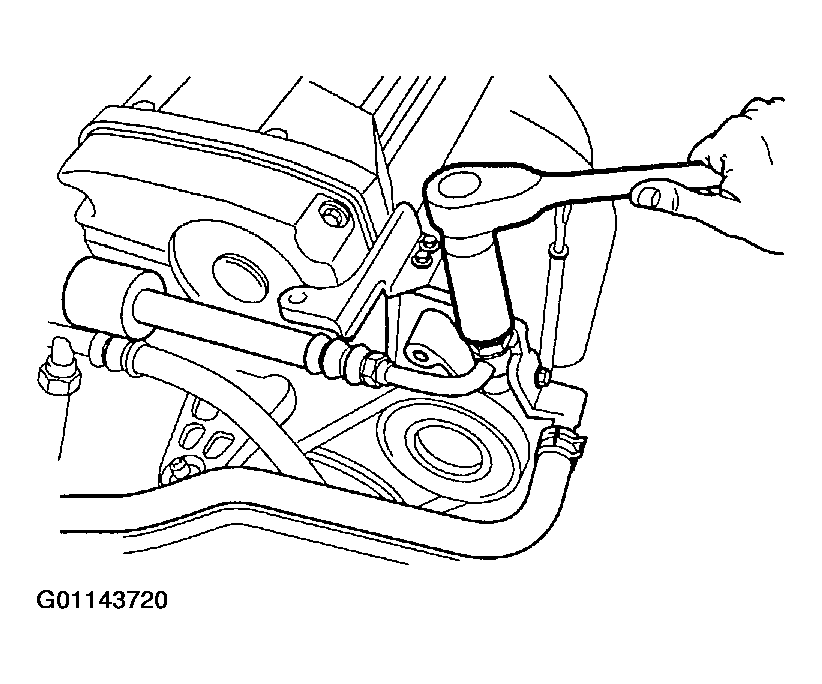

    Fig 6: Separating Power Steering Oil Pump Hose
    G01143720Courtesy of HYUNDAI MOTOR CO.
  10. Separate the power steering return hose.

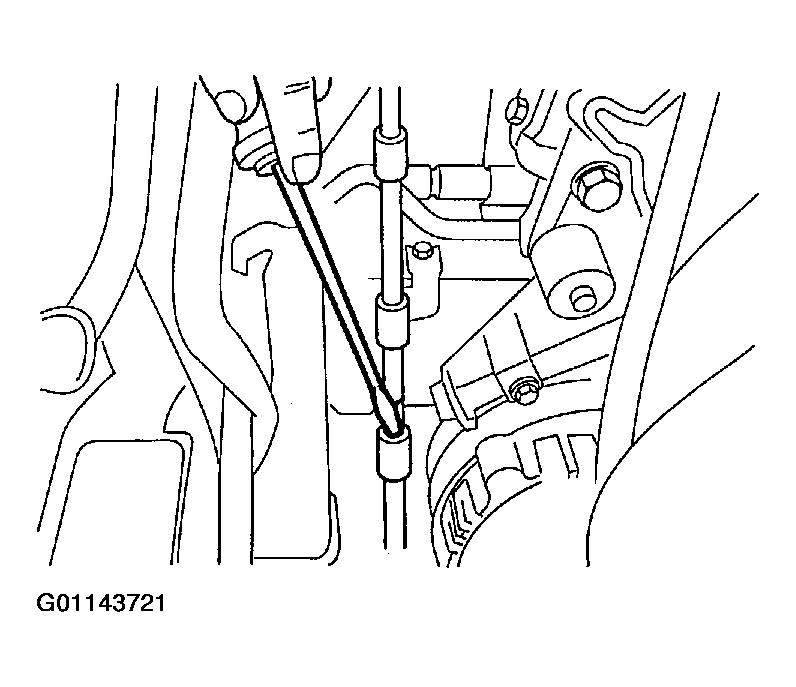

    Fig 7: Separating Power Steering Return Hose
    G01143721Courtesy of HYUNDAI MOTOR CO.
  11. Remove the upper connecting transaxle bolt.
  12. Attach the special tool, engine support fixture, (09203-08001) to the engine hooks.

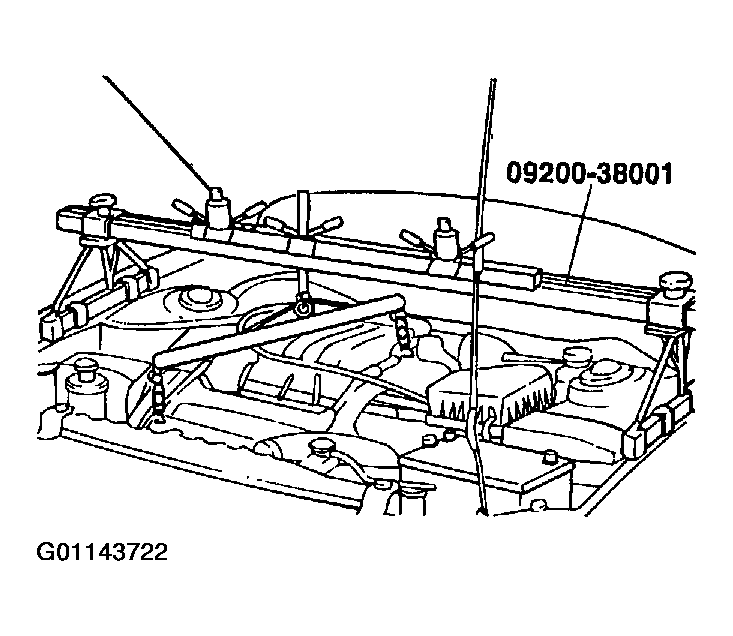

    Fig 8: Attaching Engine Support Fixture
    G01143722Courtesy of HYUNDAI MOTOR CO.
  13. Remove the tire and caliper

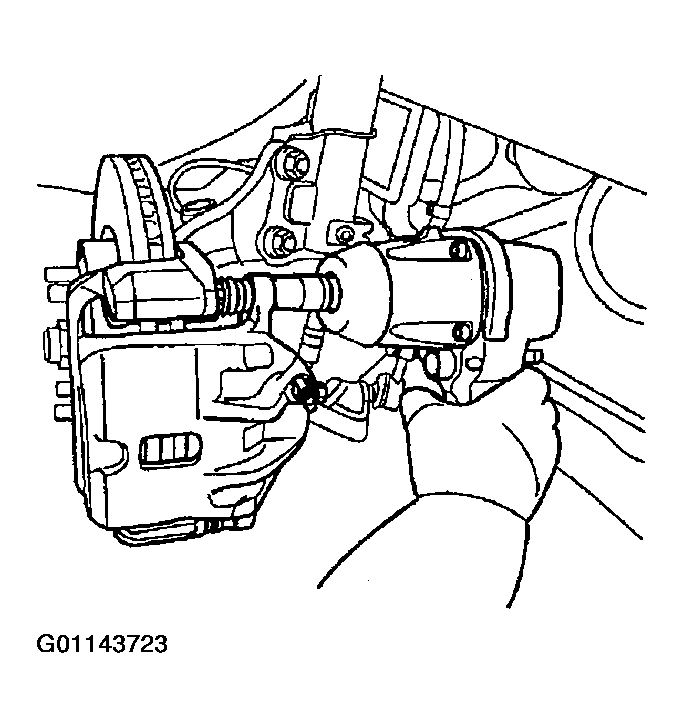

    Fig 9: Removing Brake Caliper
    G01143723Courtesy of HYUNDAI MOTOR CO.
  14. Separate the tie rod end.

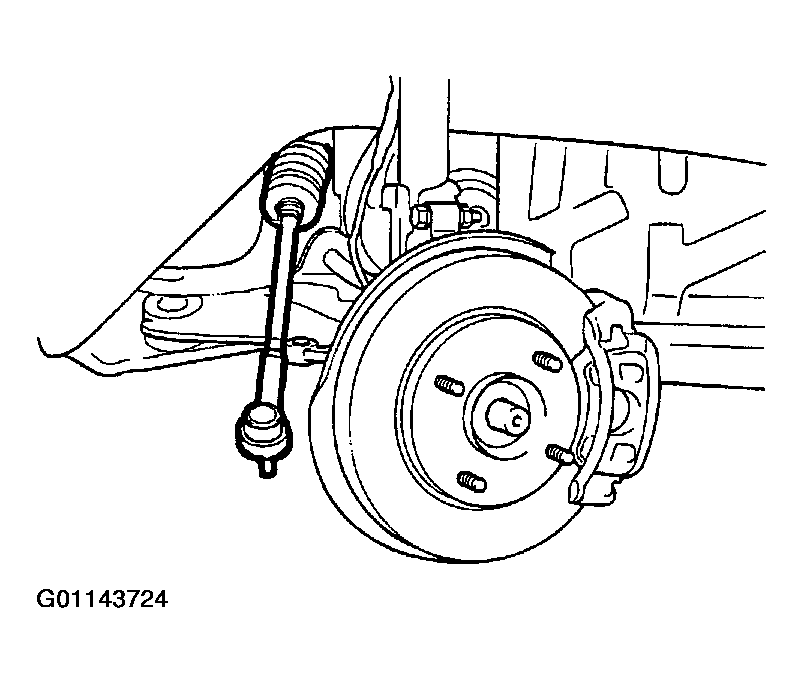

    Fig 10: Identifying Tie Rod End
    G01143724Courtesy of HYUNDAI MOTOR CO.
  15. Remove the wheel speed sensor and the knuckle mounting bolt.

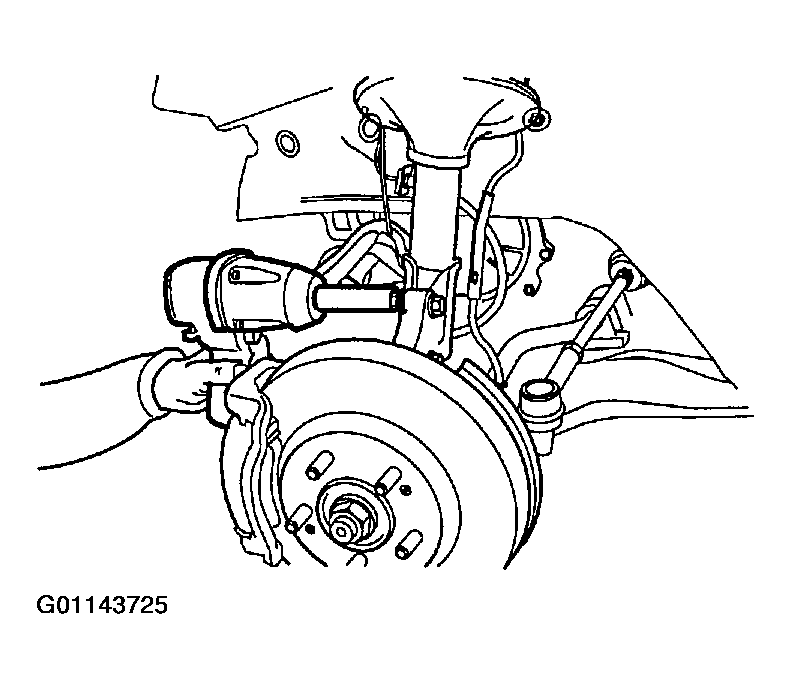

    Fig 11: Removing Upper Wheel Knuckle Bolt
    G01143725Courtesy of HYUNDAI MOTOR CO.
  16. Remove the transaxle mounting bracket.
    1. Insulator bolt

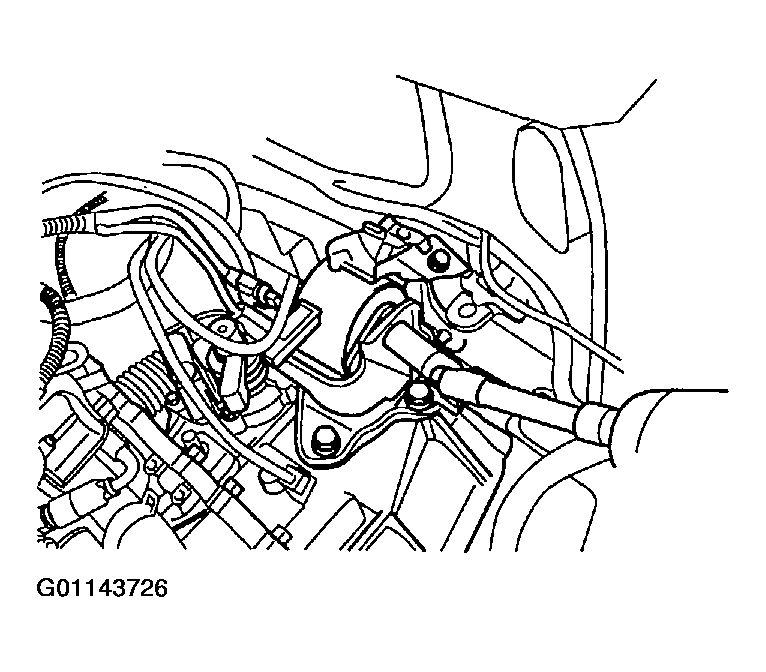

      Fig 12: Removing Transaxle Mounting Bracket Insulator Bolt
      G01143726Courtesy of HYUNDAI MOTOR CO.
    2. Body mounting bolt (Upper)

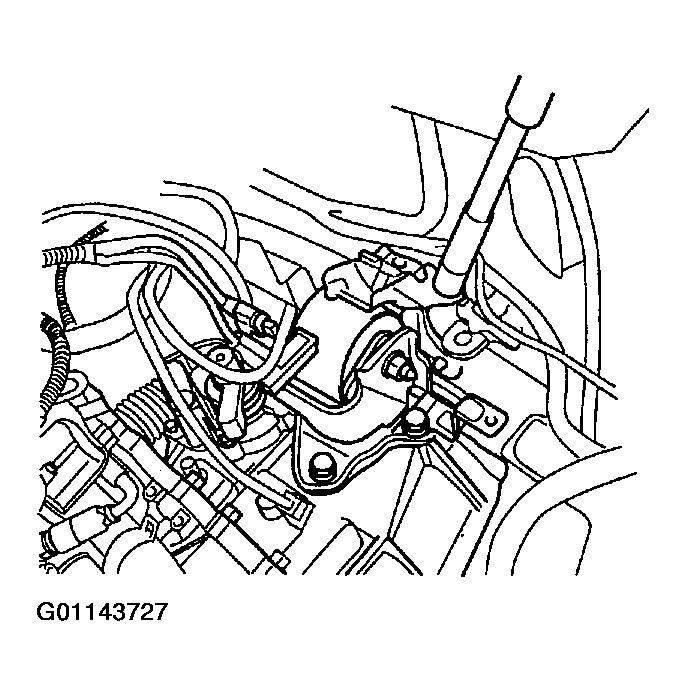

      Fig 13: Removing Upper Body Mount Bolt
      G01143727Courtesy of HYUNDAI MOTOR CO.
    3. Body mounting bolt (Side)

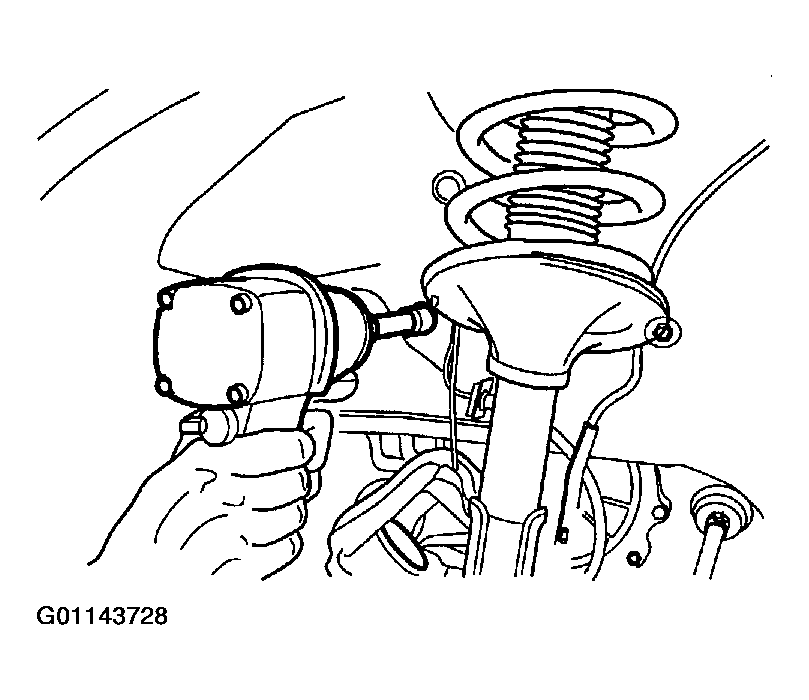

      Fig 14: Removing Side Body Mount Bolt
      G01143728Courtesy of HYUNDAI MOTOR CO.
    4. Transaxle side mounting bolt.

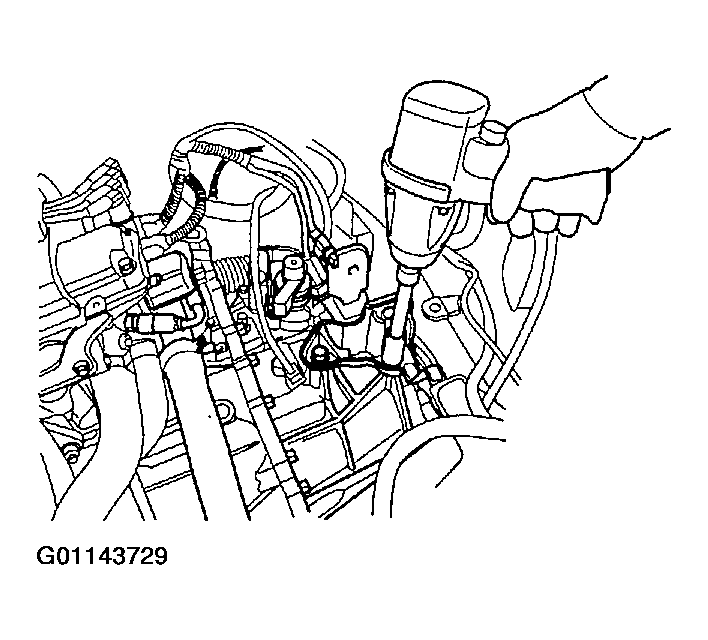

      Fig 15: Removing Transaxle Side Mounting Bolt
      G01143729Courtesy of HYUNDAI MOTOR CO.
  17. Remove the front roll stopper.
    1. Insulator bolt
      Fig 16: Removing Front Roller Stopper Insulator Bolt
      G01143730Courtesy of HYUNDAI MOTOR CO.
    2. Stopper bolt (Upper)
      Fig 17: Removing Upper Stopper Bolt
      G01143731Courtesy of HYUNDAI MOTOR CO.
    3. Stopper bolt (Lower)
      Fig 18: Removing Lower Stopper Bolt
      G01143732Courtesy of HYUNDAI MOTOR CO.
  18. Remove the rear roll stopper.
    1. Insulator bolt

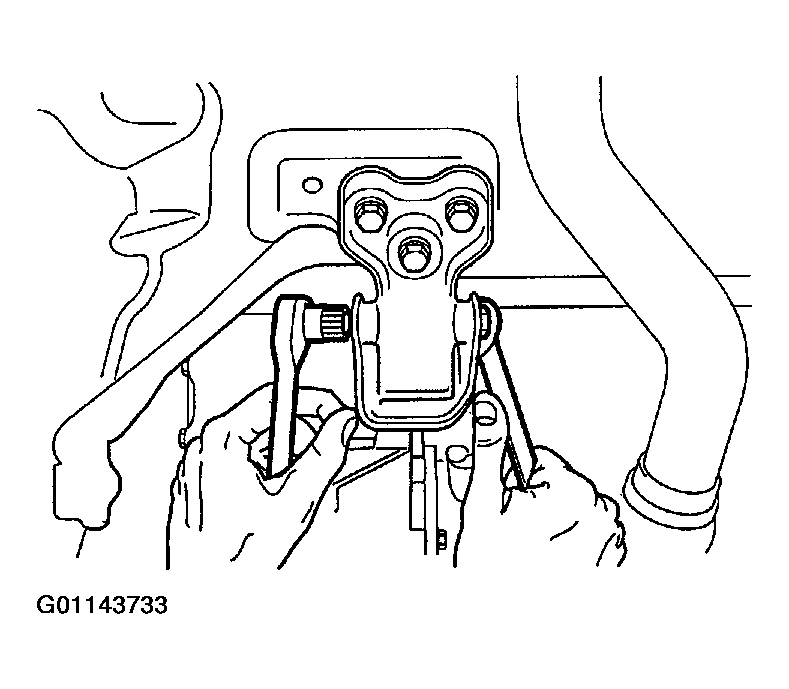

      Fig 19: Remove The Rear Roll Stopper Insulator Bolt
      G01143733Courtesy of HYUNDAI MOTOR CO.
    2. Stopper bolt

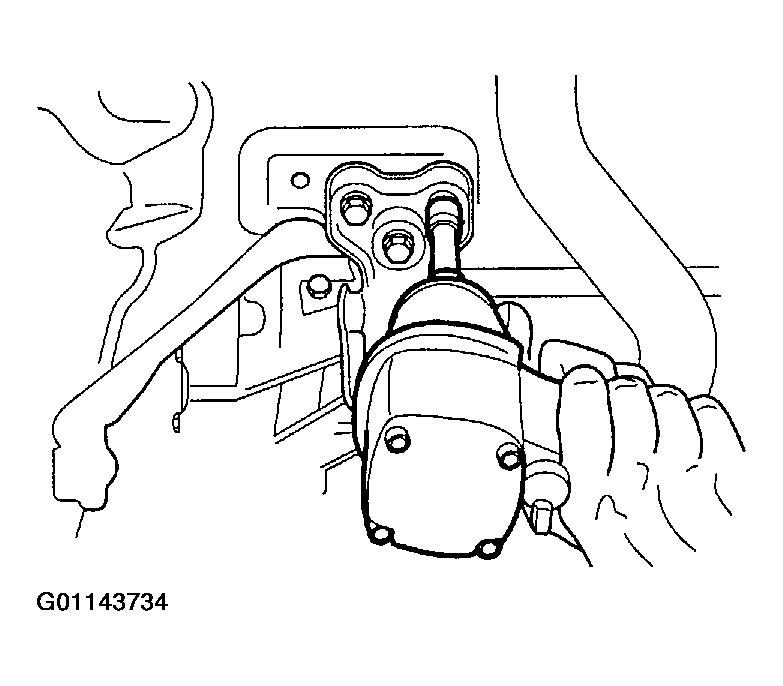

      Fig 20: Removing Stopper Bolt
      G01143734Courtesy of HYUNDAI MOTOR CO.
  19. Remove the drive shaft.
  20. Remove the subframe mounting bolts and the subframe.

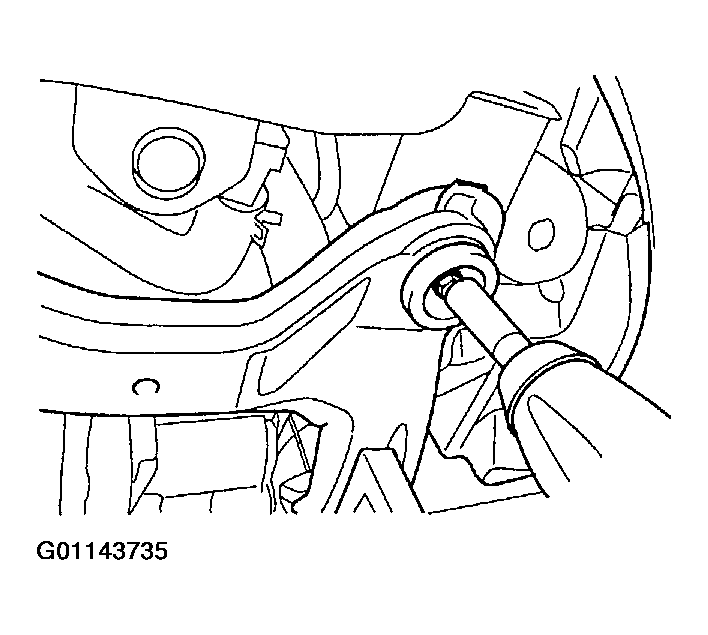

    Fig 21: Removing Subframe Mounting Bolts
    G01143735Courtesy of HYUNDAI MOTOR CO.
  21. Install the jack under the transaxle assembly.

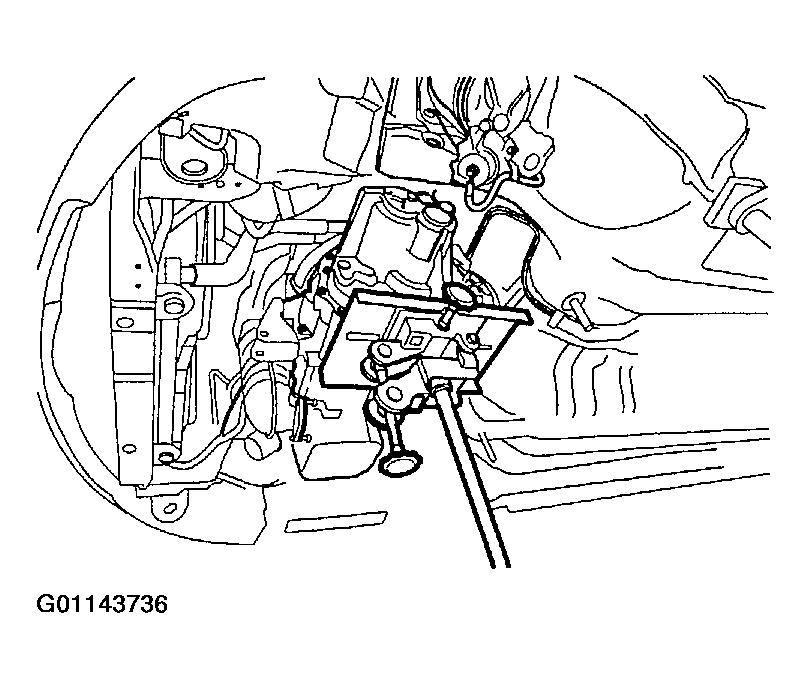

    Fig 22: Installing Jack
    G01143736Courtesy of HYUNDAI MOTOR CO.
  22. Remove the automatic transaxle mounting lower bolts.

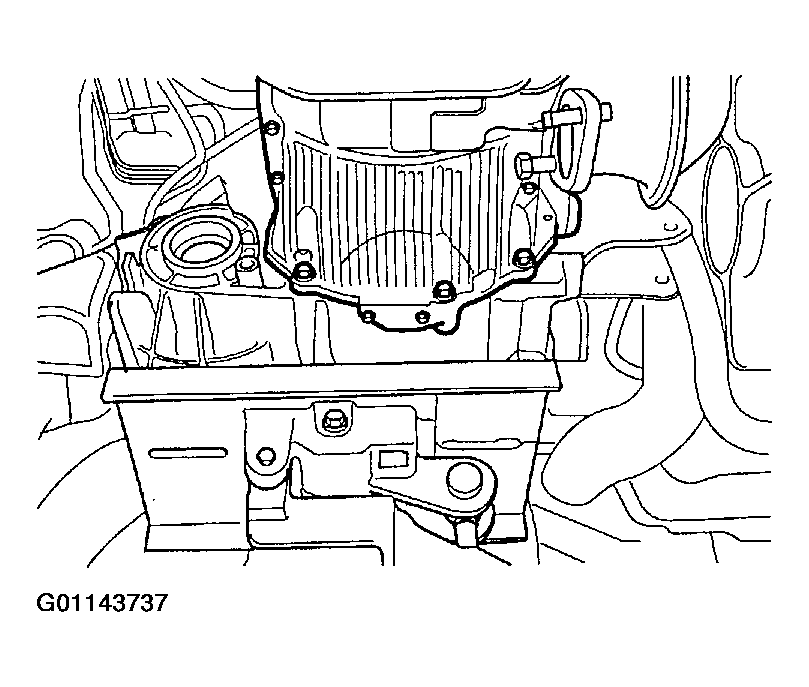

    Fig 23: Identifying Transaxle Mounting Lower Bolts
    G01143737Courtesy of HYUNDAI MOTOR CO.
  23. Remove the engine to automatic transaxle bolts.
  24. Remove the automatic transaxle assembly by jack.
    CAUTION:
    1. Engine and transmission mounting insulators should be installed as specified orders.
    2. Mounting bracket installation procedures.
      1. Engine mounting bracket.
      2. T/M mounting bracket.
      3. Rear roll stopper mounting bracket.
      4. Front roll stopper mounting bracket.
    3. When installing the front roll stopper mounting bracket, be especially careful not to crush the insulator. If crushed, idle vibration may occur.
