Automatic Transaxle Hydraulic Circuit: Second

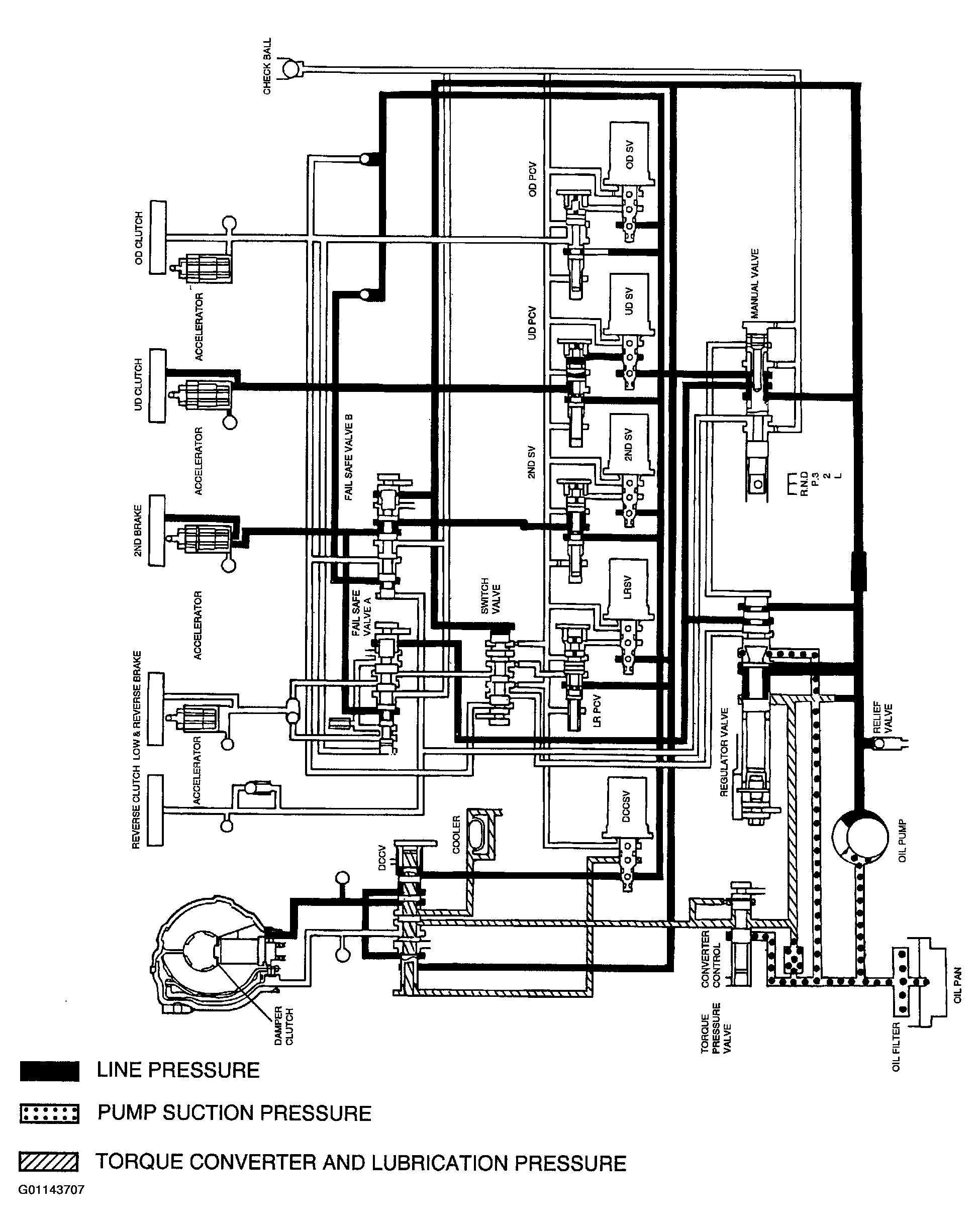

Fig 1: Identifying Hydraulic Circuit In Second Gear

G01143707

Courtesy of HYUNDAI MOTOR CO.
