Alignment Specifications (02-50-005)

Publication date: 2002-04-01
Reference number: 02-50-005

ALIGNMENT SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-50-005, Date of Issue: April, 2002

HYUNDAI:	2001-2003, All Models
GROUP:	Chassis

BULLETIN CONTENT

ALIGNMENT SPECIFICATIONS

This bulletin provides the 2001, 2002 and 2003 model year vehicle alignment specifications. Specifications provided in these charts supersede any that have been previously published.

DESCRIPTION

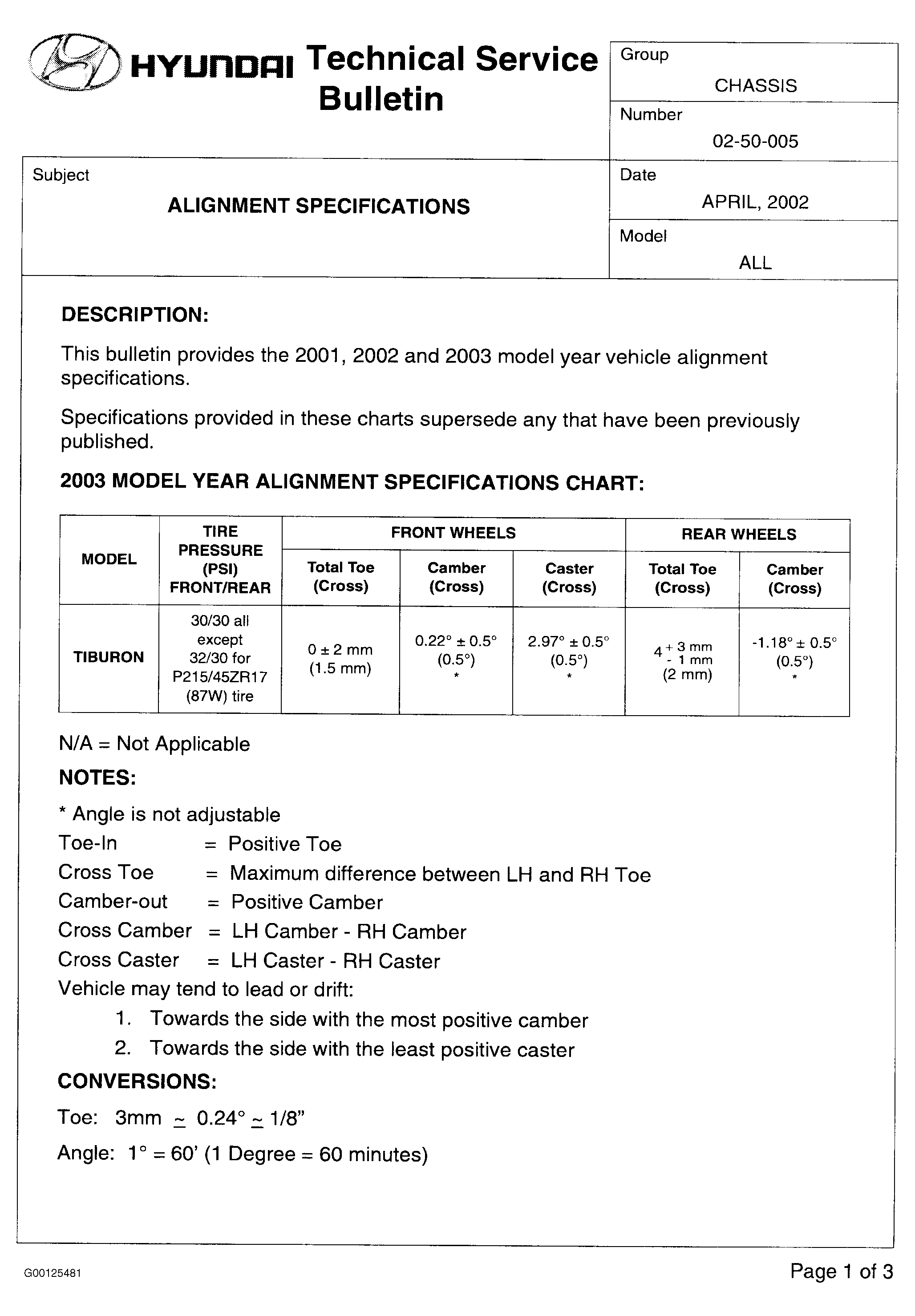

Fig 1: Page 1 of Bulletin

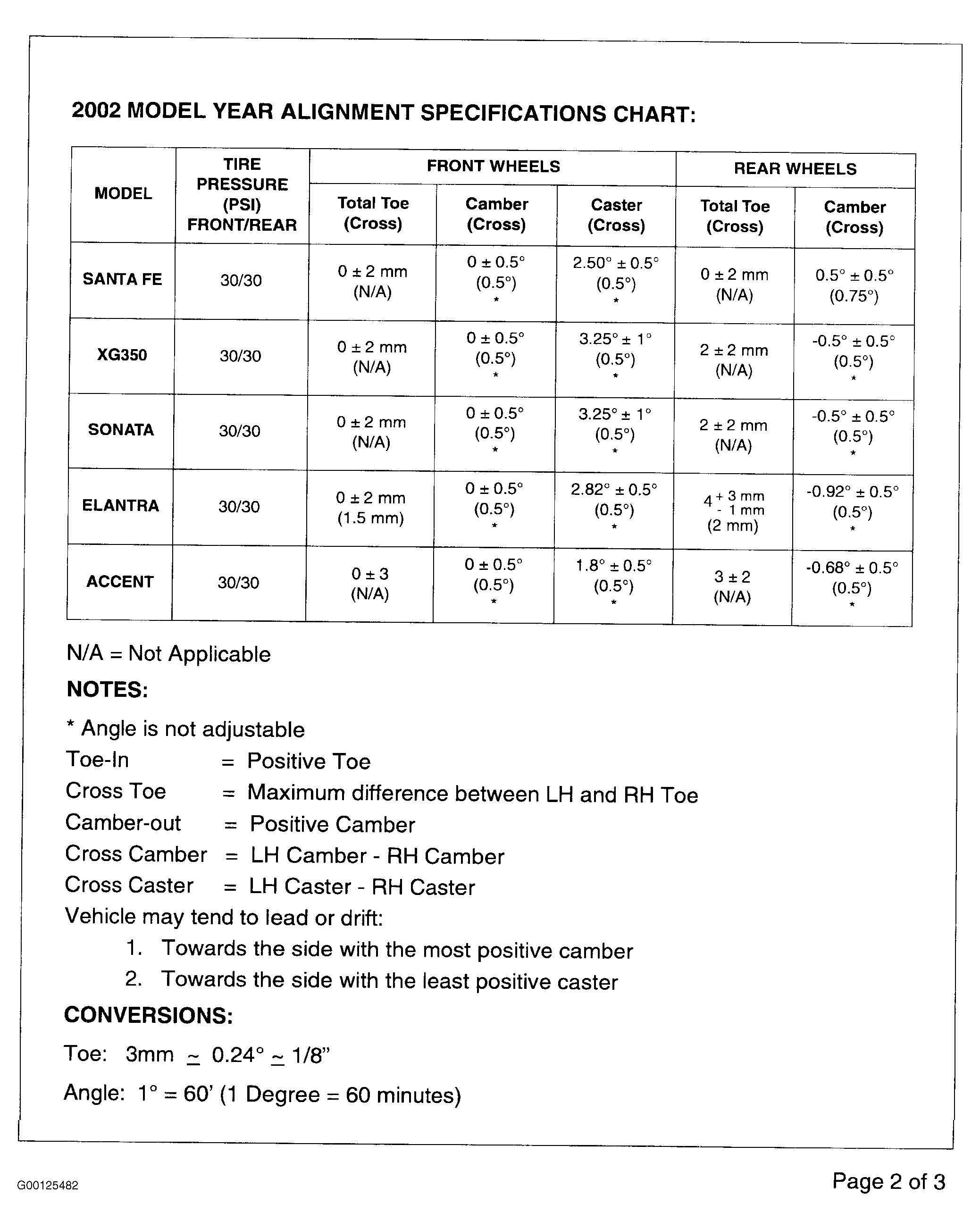

Fig 2: Page 2 of Bulletin

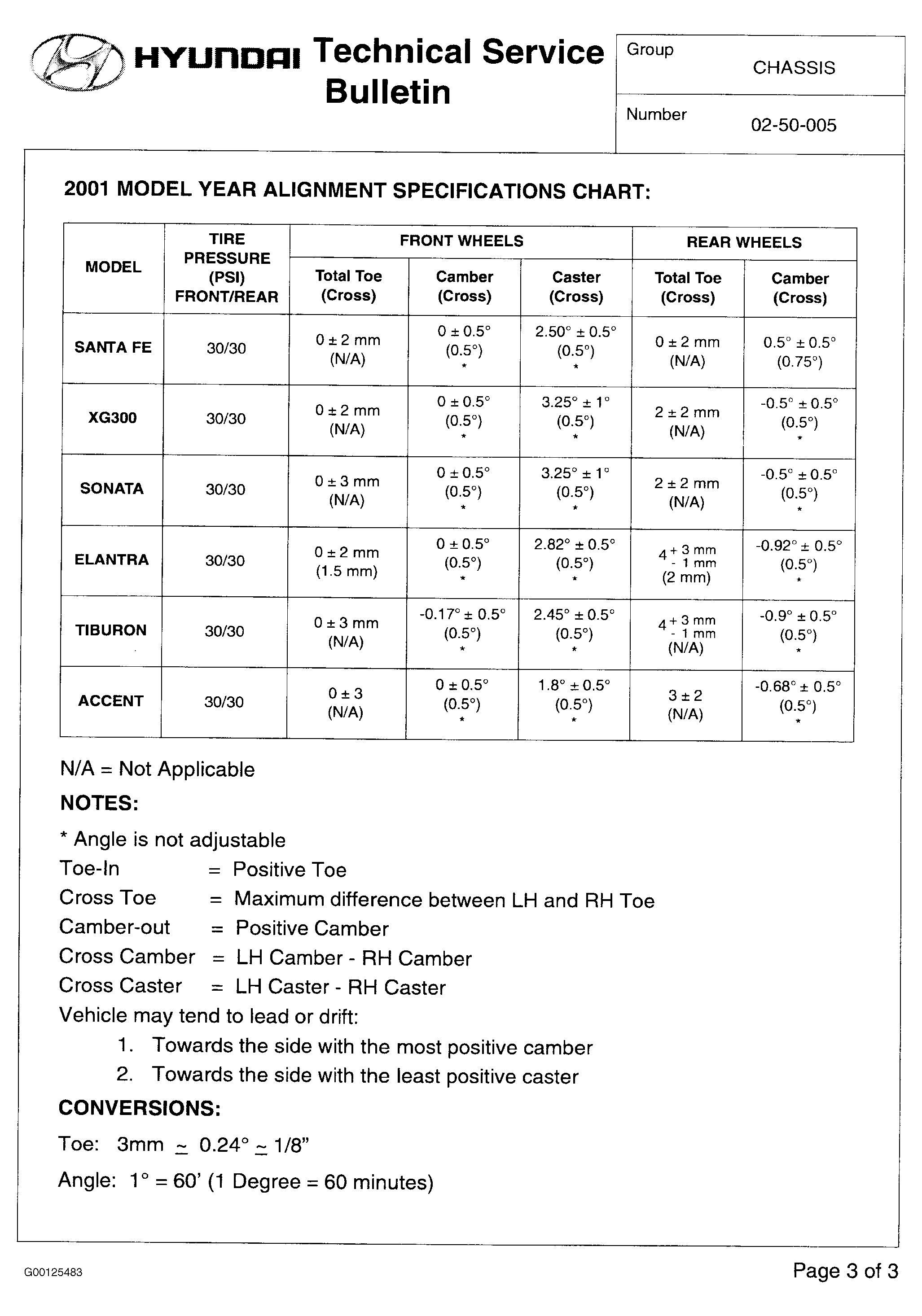

Fig 3: Page 3 of Bulletin
