Door Switch

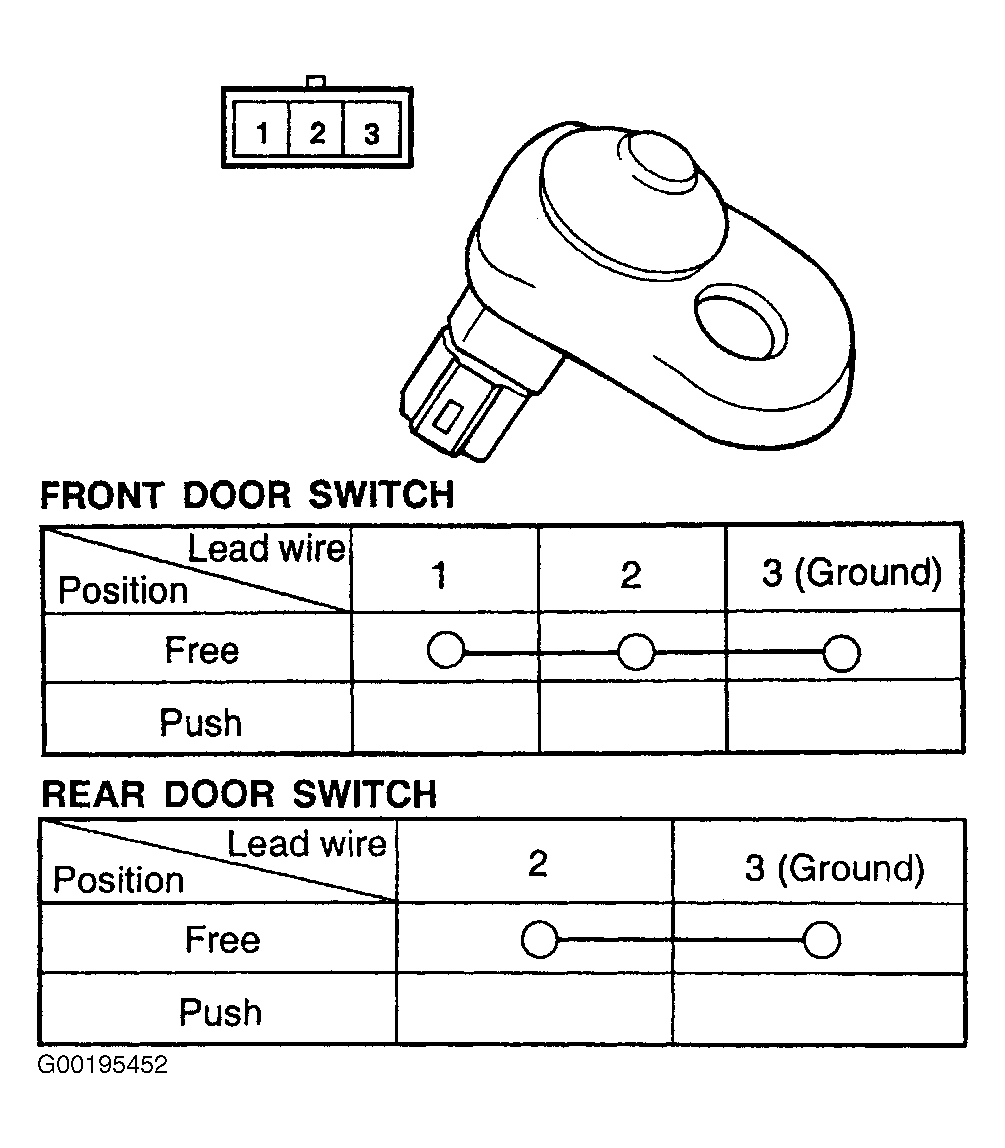

Remove door switch to be tested. With switch in extended position (door open), continuity should exist between switch terminals No. 1, 2 and 3. See Fig 1 . With switch depressed (door closed), continuity should not exist between any terminals. If continuity is not as specified, replace door switch.
