Multifunction Switch Assembly & Connector End Views

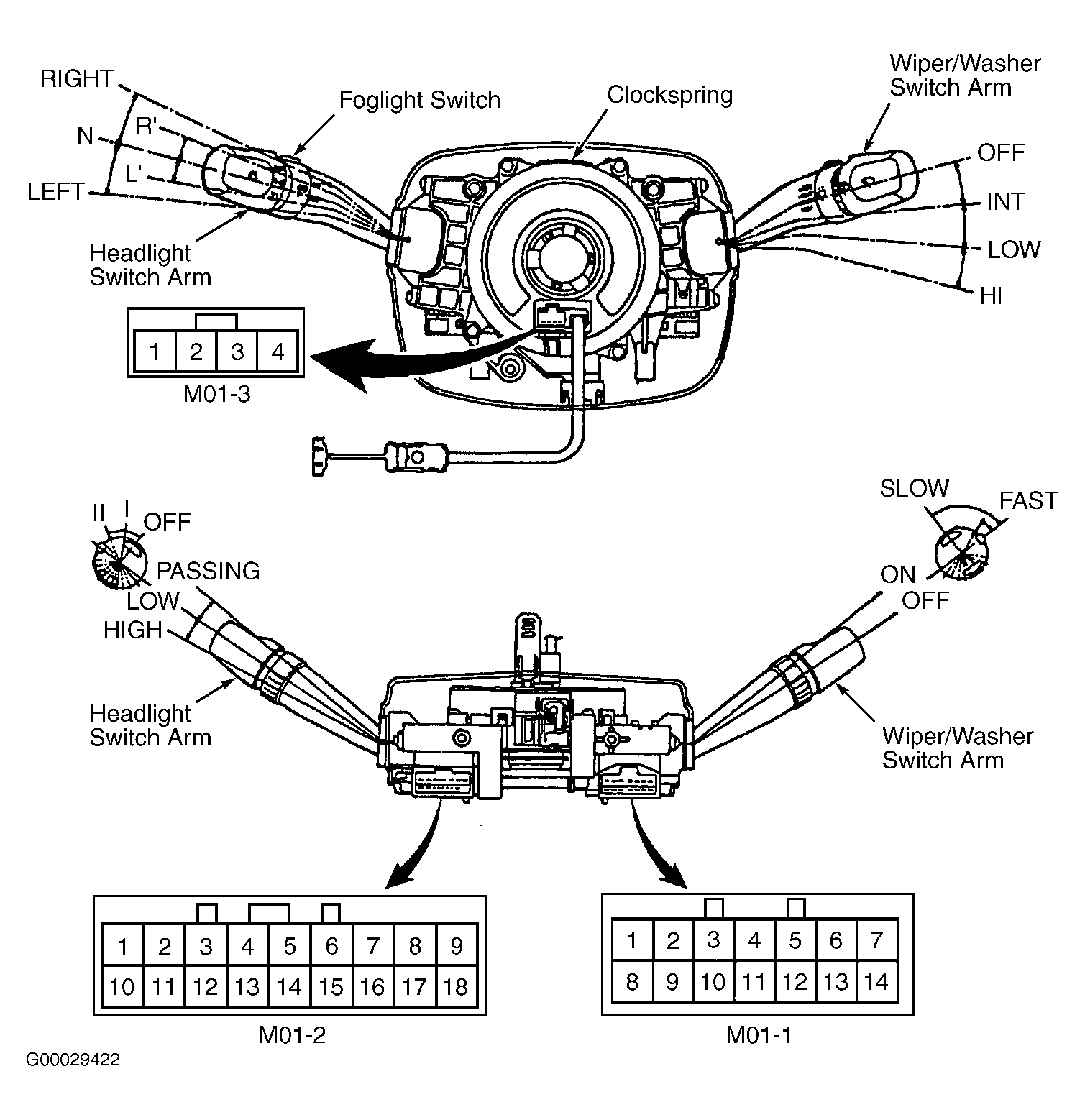

Fig 1: Multifunction Switch Assembly & Connector End Views

G00029422

Courtesy of HYUNDAI MOTOR AMERICA
