Section 2 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Shift Lever
>>
Shift Lever Assembly
Shift Lever Assembly
WARNING:
This page is about a different variant/trim than selected.

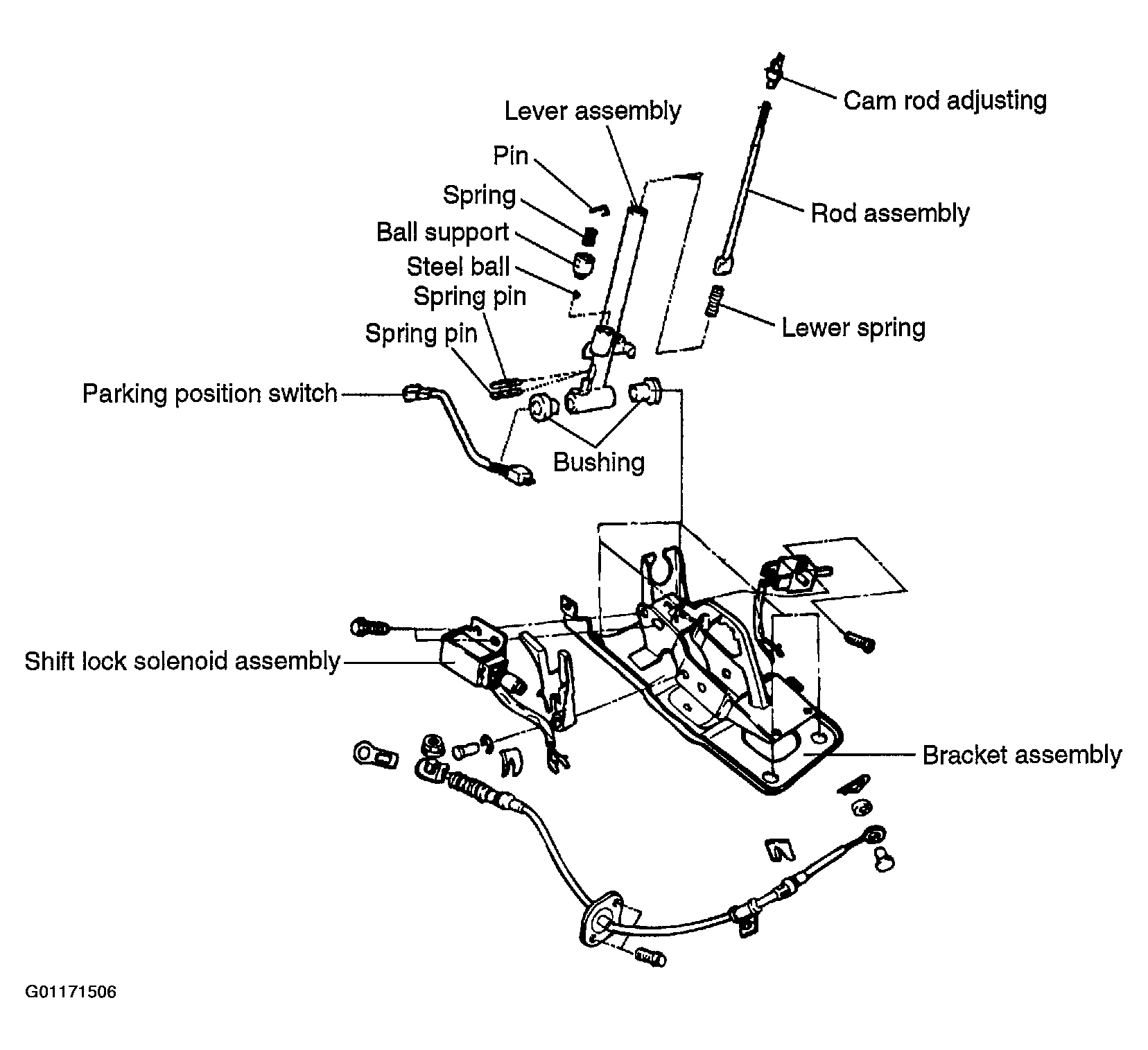

Fig 1: Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
