Troubleshooting Flow

WARNING: This page is about a different variant/trim than selected.

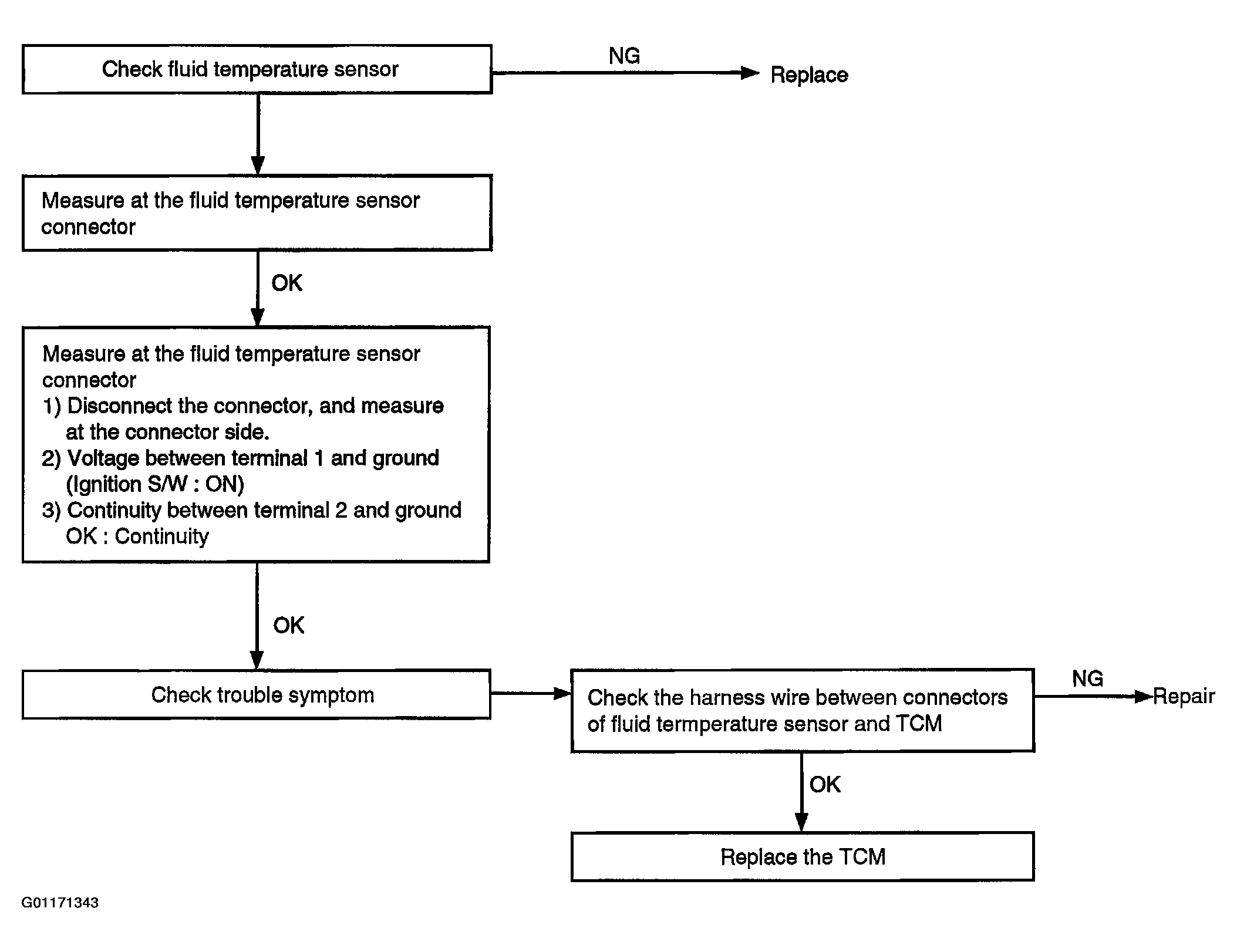

Fig 1: DTC P0712/P0713: Troubleshooting Flow

G01171343

Courtesy of HYUNDAI MOTOR CO.

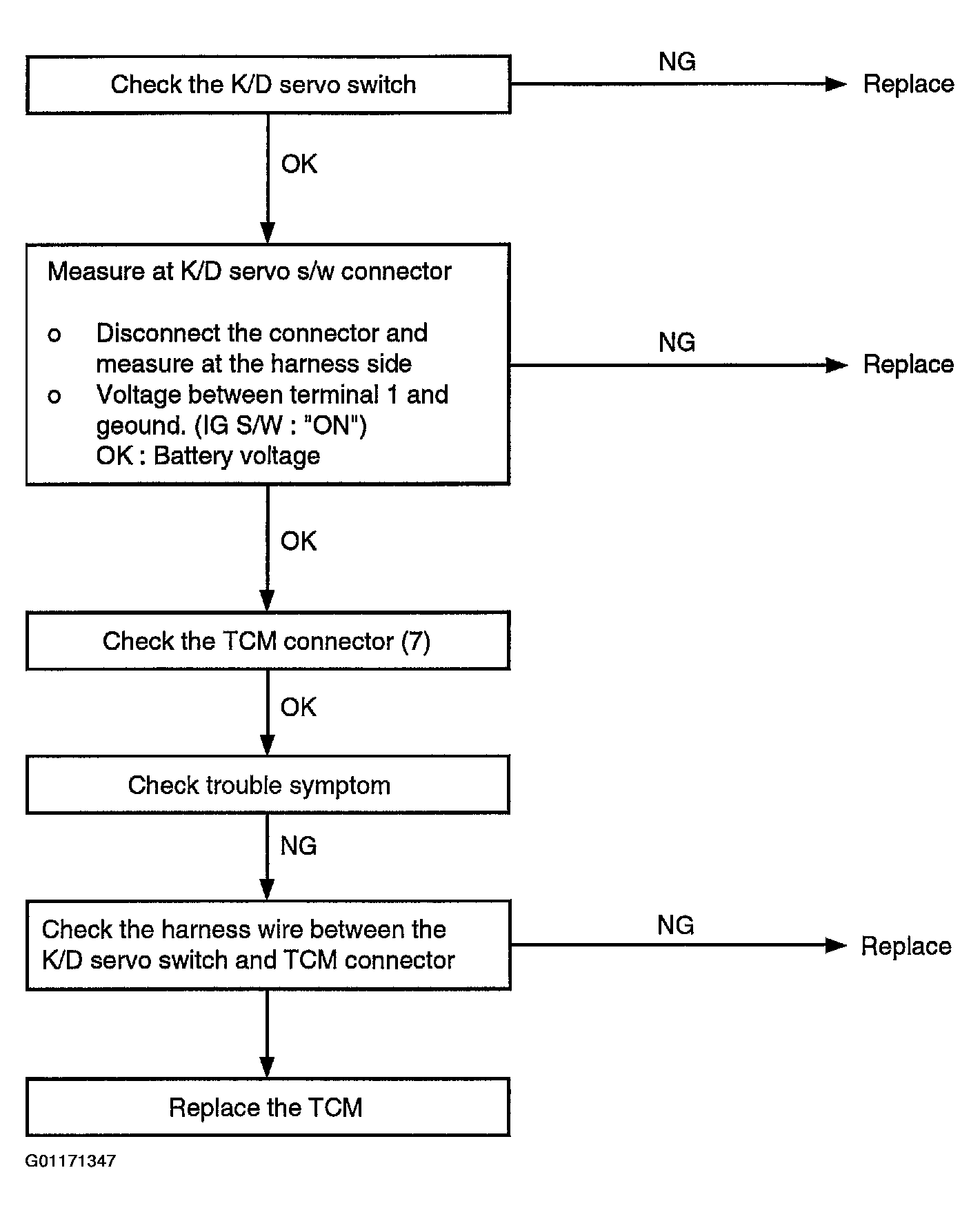

Fig 1: DTC P1709: Troubleshooting Flow

G01171347

Courtesy of HYUNDAI MOTOR CO.

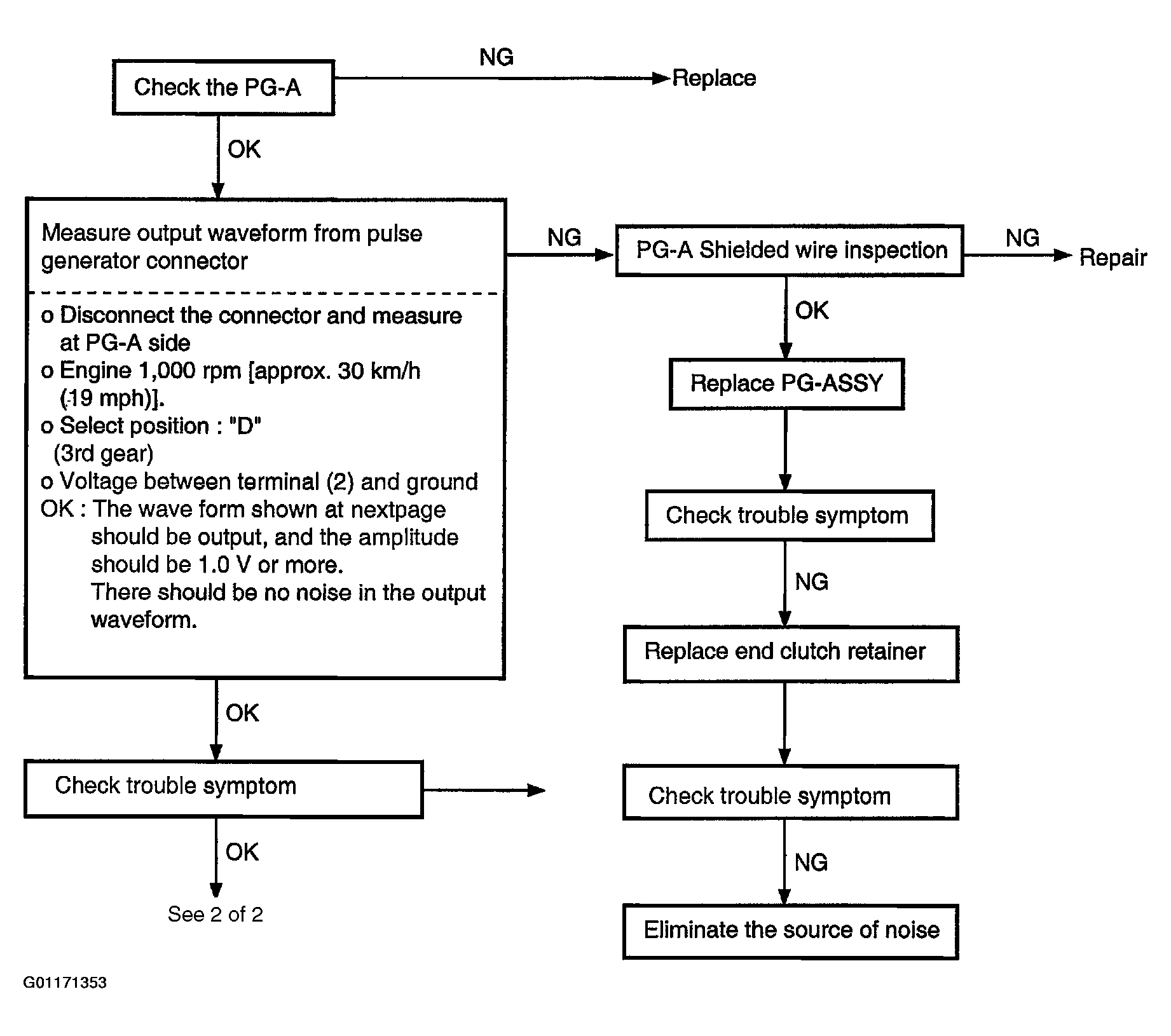

Fig 1: DTC P0717: Troubleshooting Flow (1 Of 2)

G01171353

Courtesy of HYUNDAI MOTOR CO.

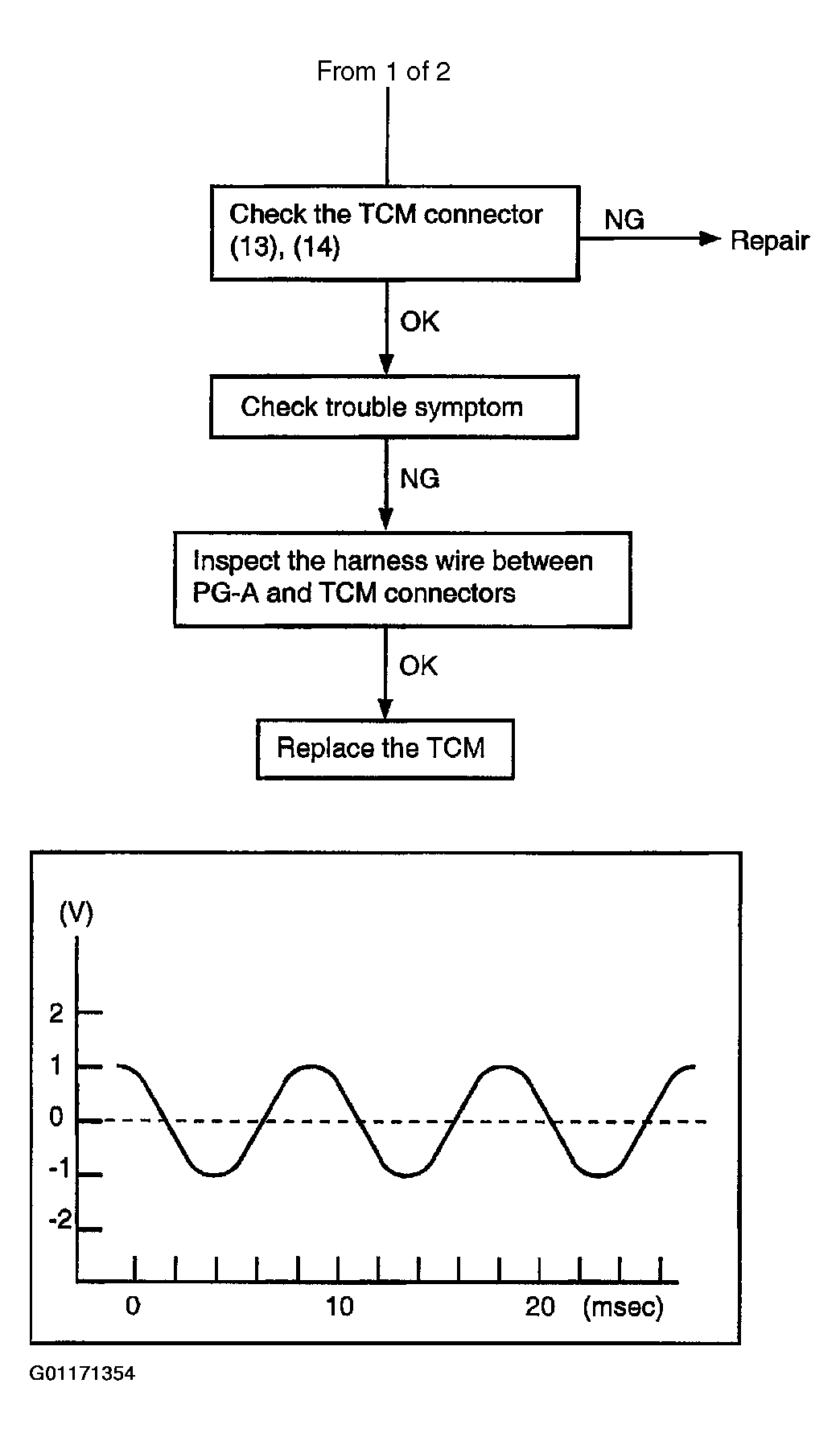

Fig 2: DTC P0717: Troubleshooting Flow (2 Of 2)

G01171354

Courtesy of HYUNDAI MOTOR CO.

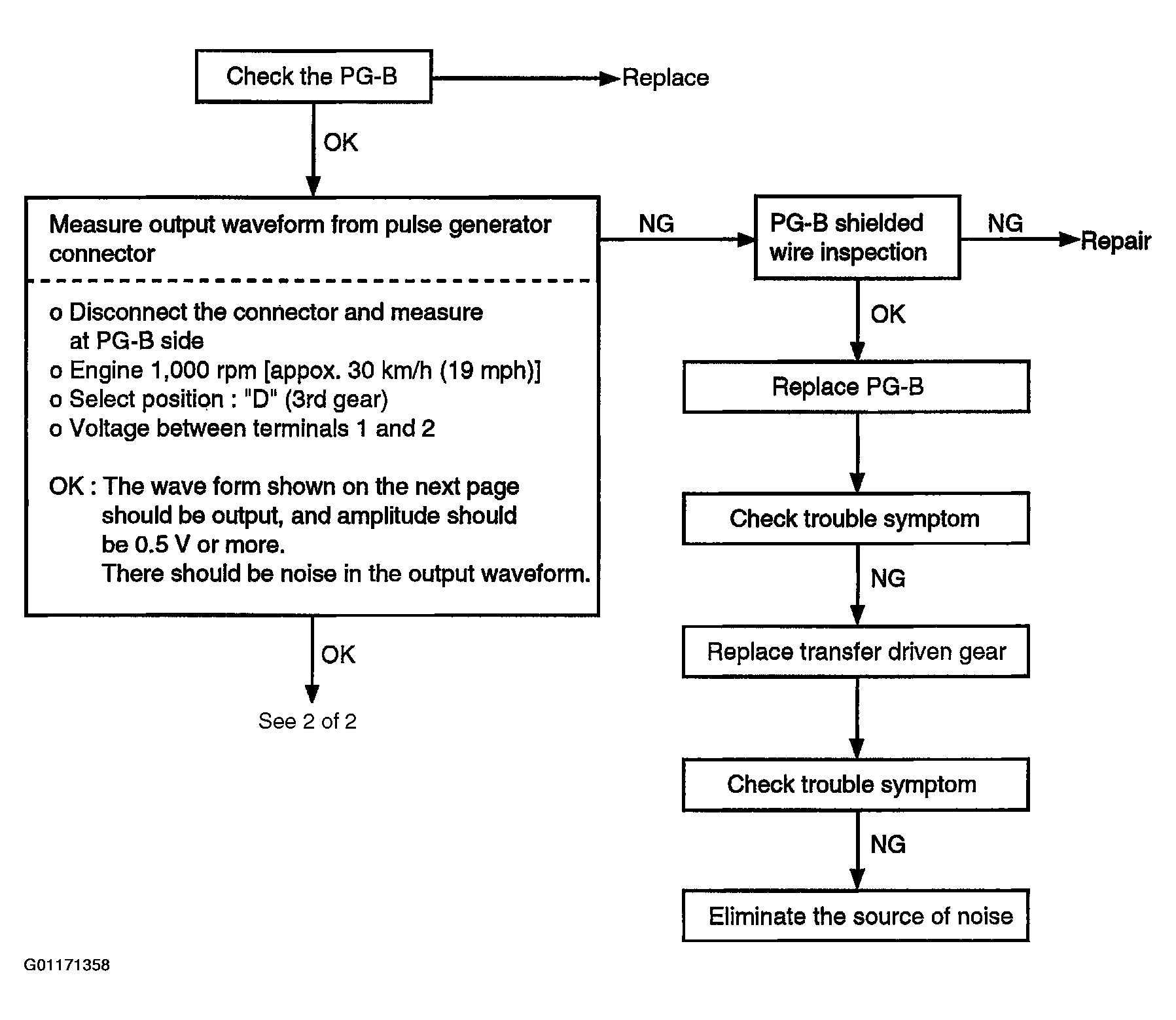

Fig 1: DTC P0722: Troubleshooting Flow (1 Of 2)

G01171358

Courtesy of HYUNDAI MOTOR CO.

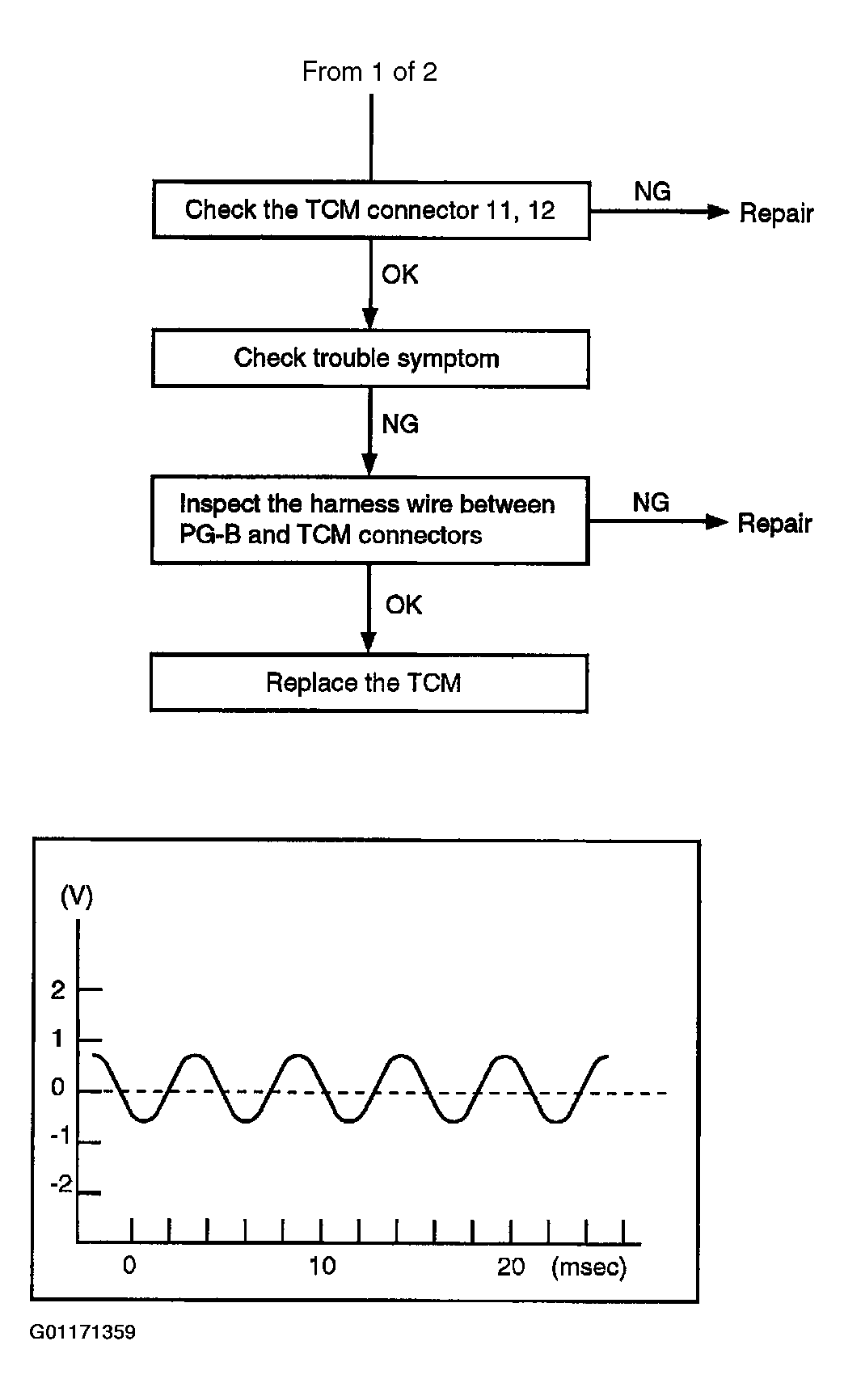

Fig 2: DTC P0722: Troubleshooting Flow (2 Of 2)

G01171359

Courtesy of HYUNDAI MOTOR CO.

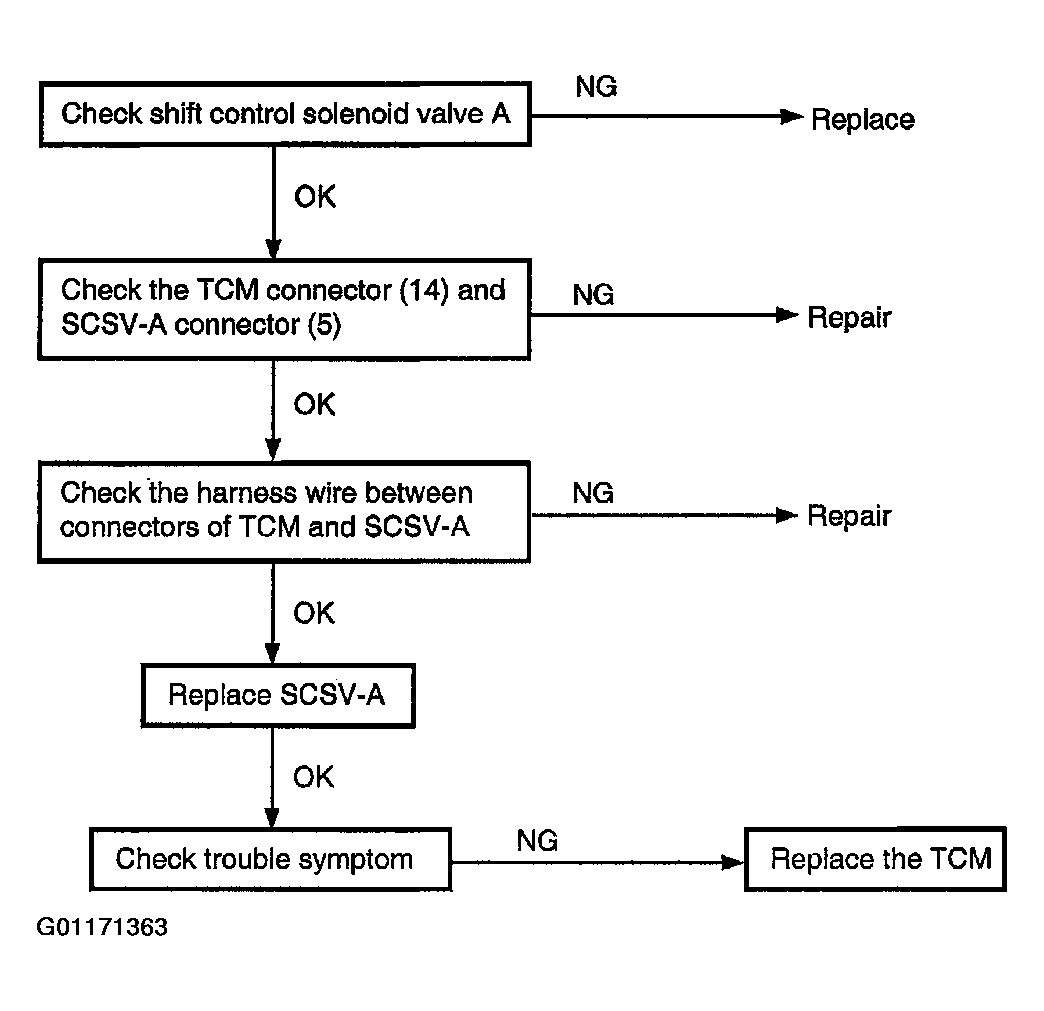

Fig 1: DTC P0750: Troubleshooting Flow

G01171363

Courtesy of HYUNDAI MOTOR CO.

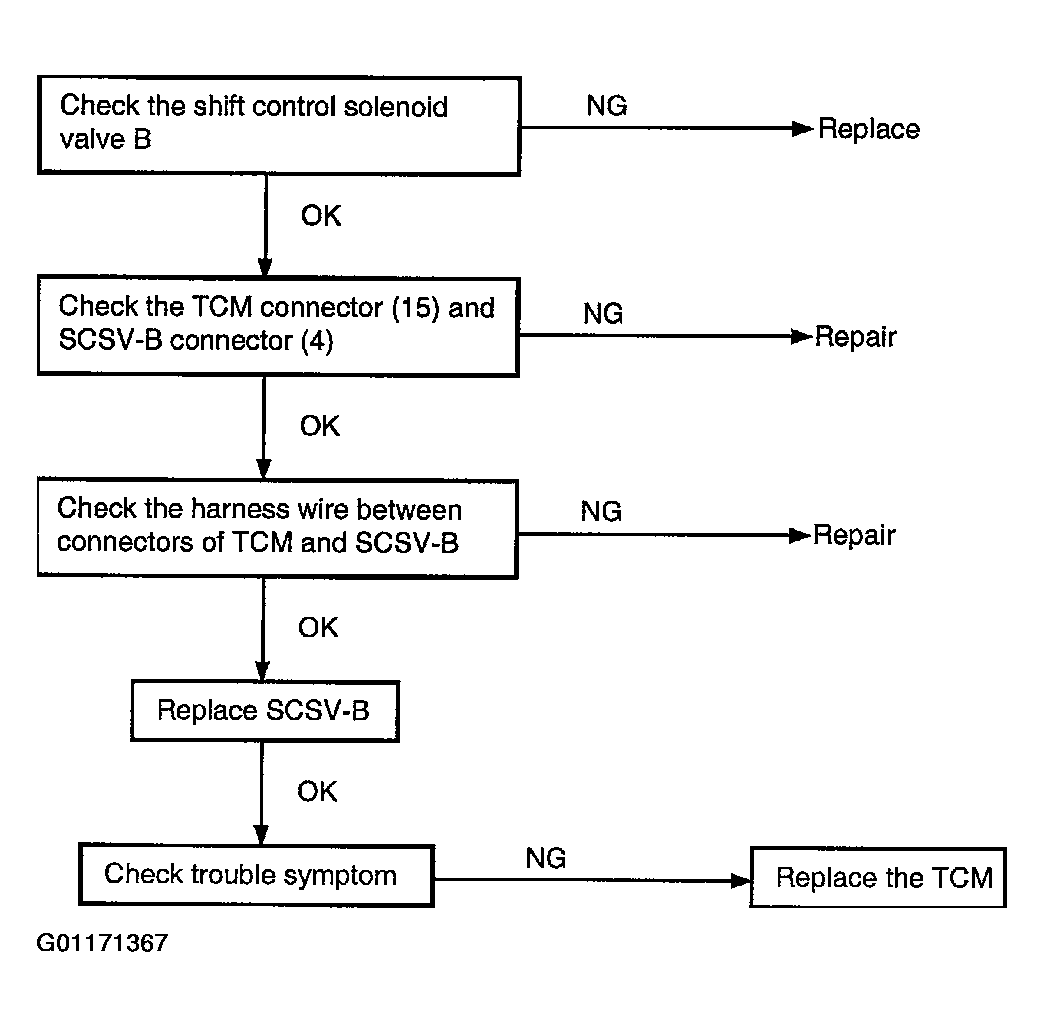

Fig 1: DTC P0755: Troubleshooting Flow

G01171367

Courtesy of HYUNDAI MOTOR CO.

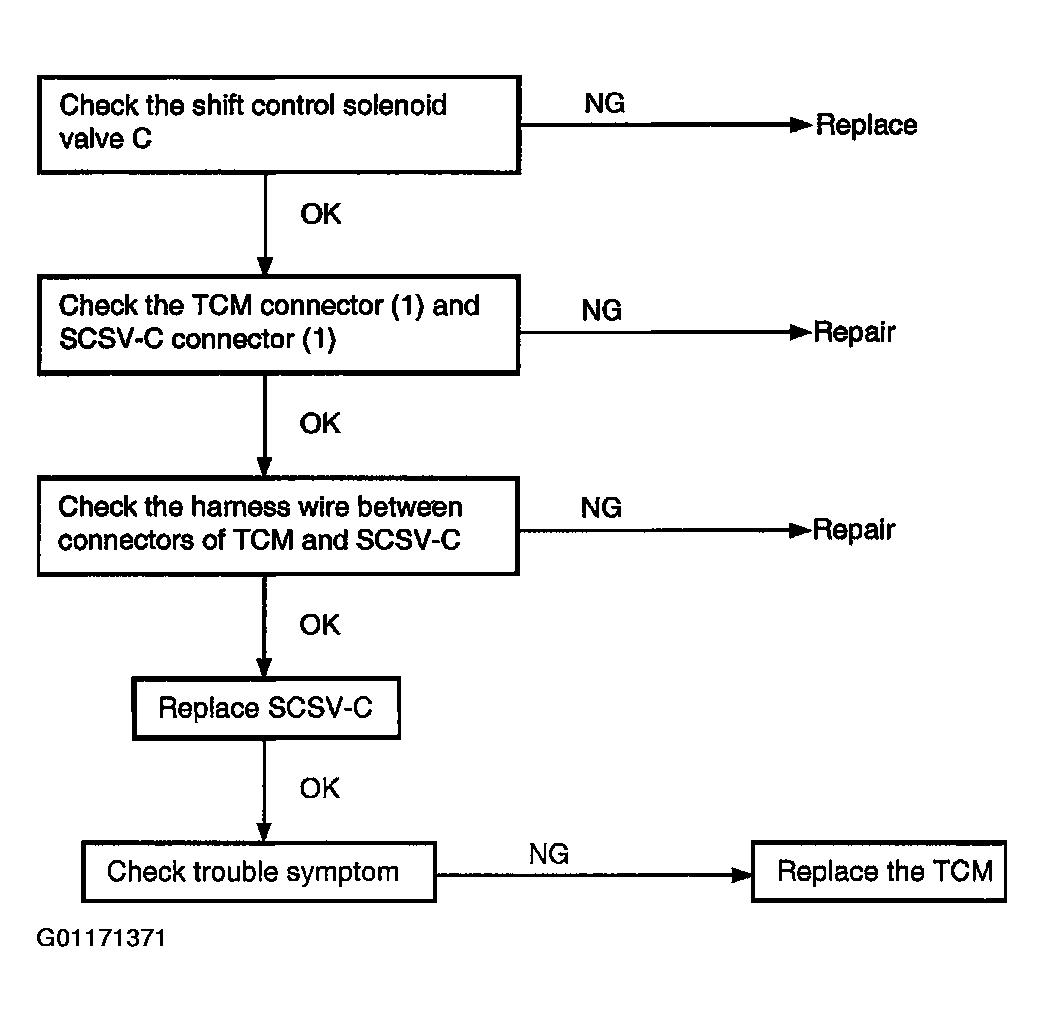

Fig 1: DTC P0760: Troubleshooting Flow

G01171371

Courtesy of HYUNDAI MOTOR CO.

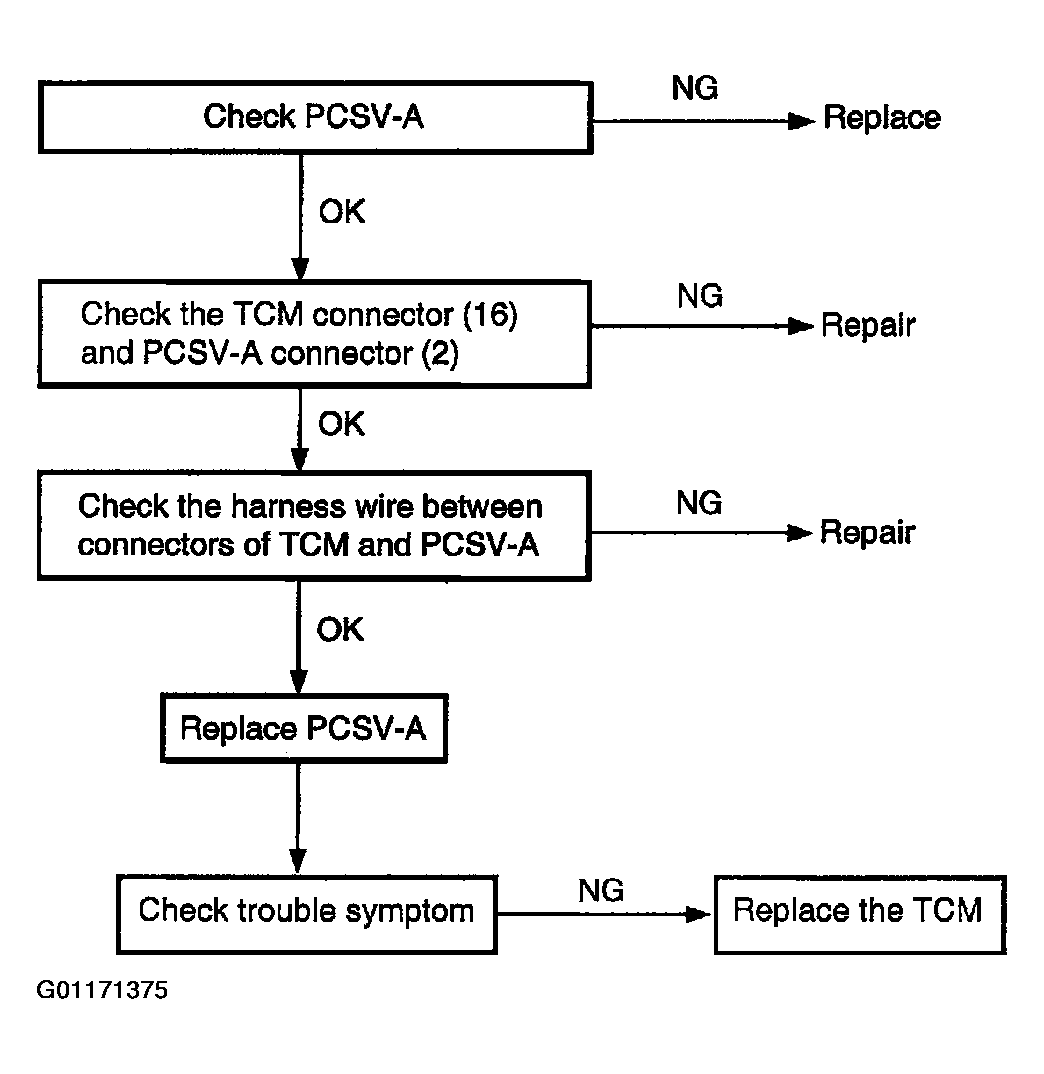

Fig 1: DTC P0745: Troubleshooting Flow

G01171375

Courtesy of HYUNDAI MOTOR CO.

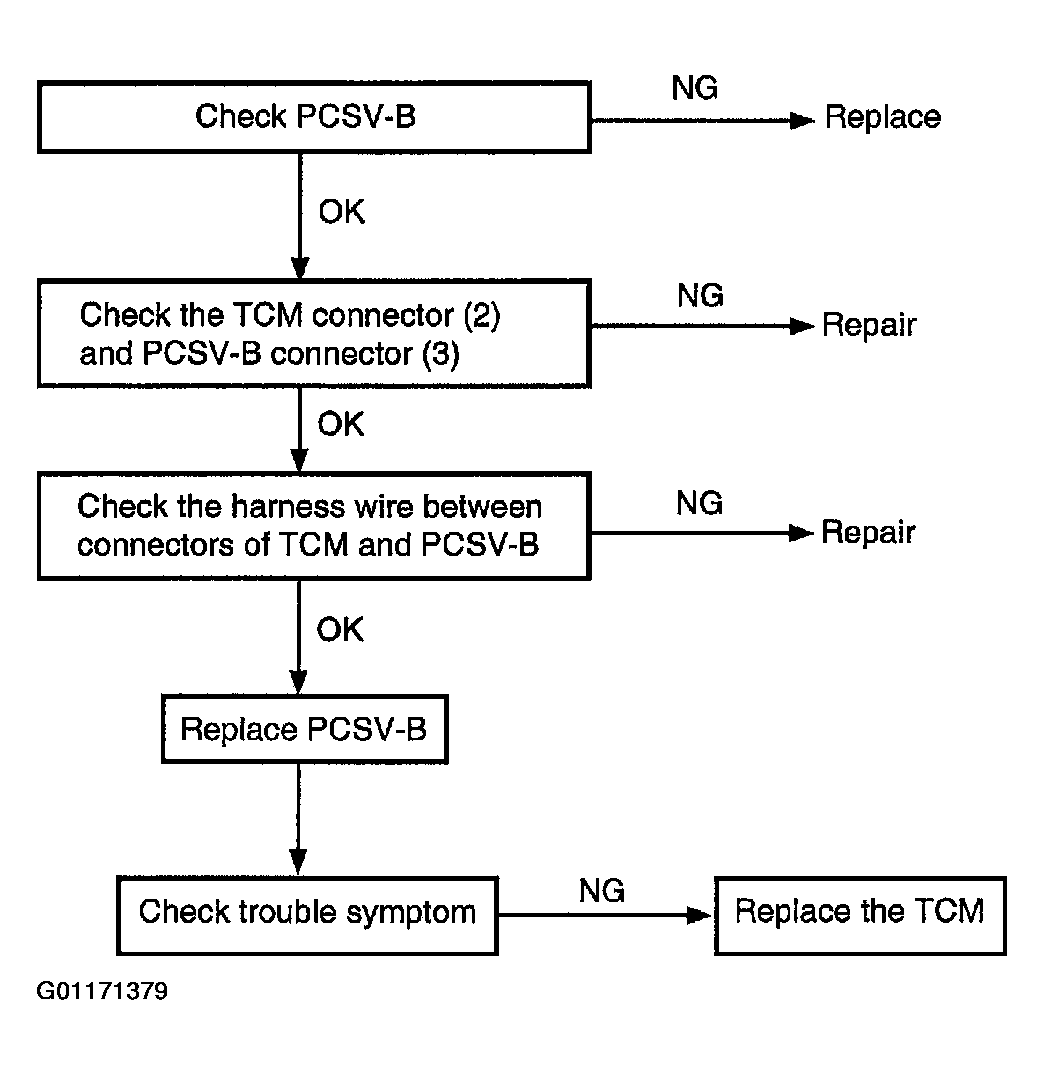

Fig 1: DTC P0765: Troubleshooting Flow

G01171379

Courtesy of HYUNDAI MOTOR CO.

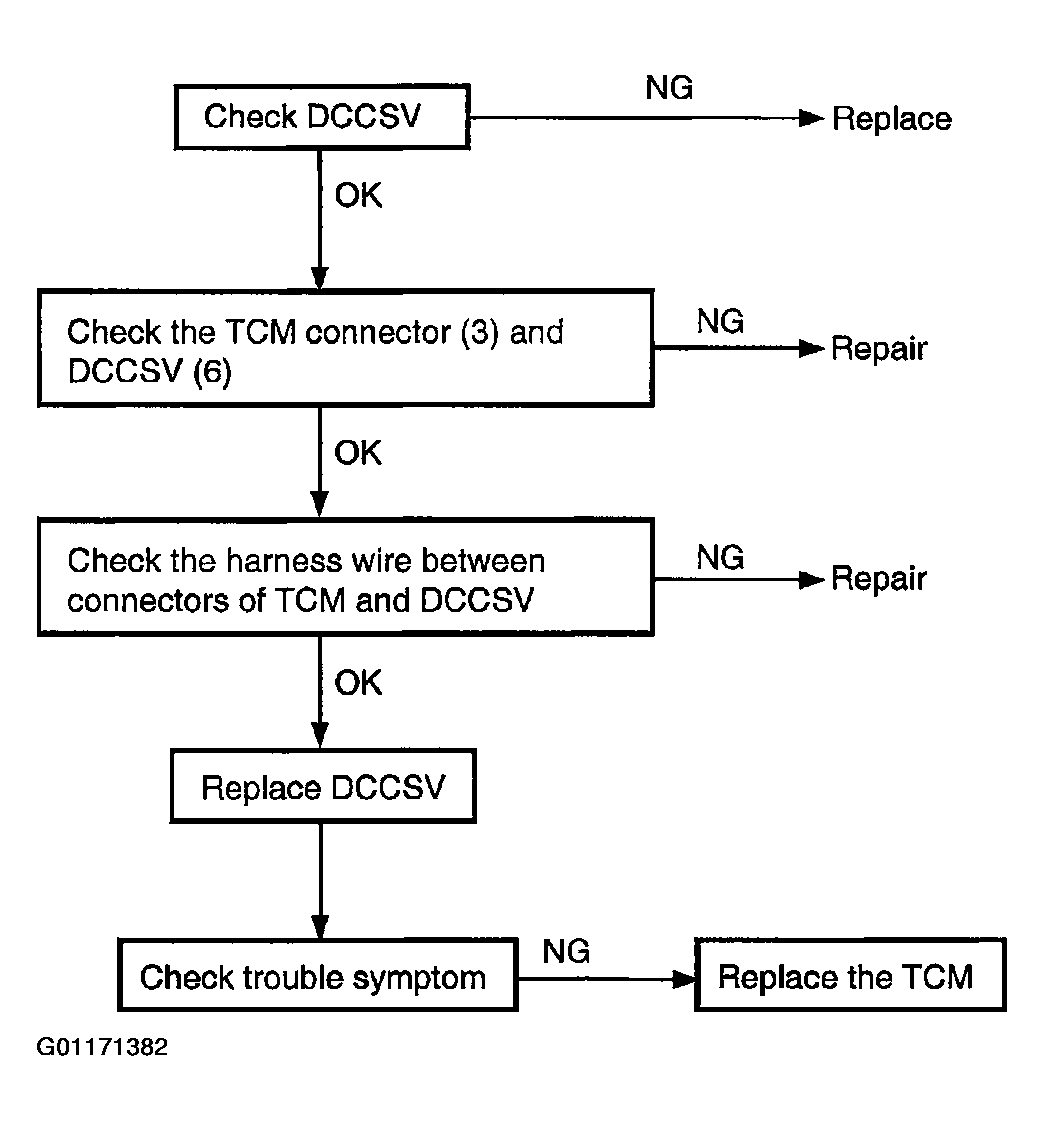

Fig 1: DTC P0743/P0740: Troubleshooting Flow

G01171382

Courtesy of HYUNDAI MOTOR CO.

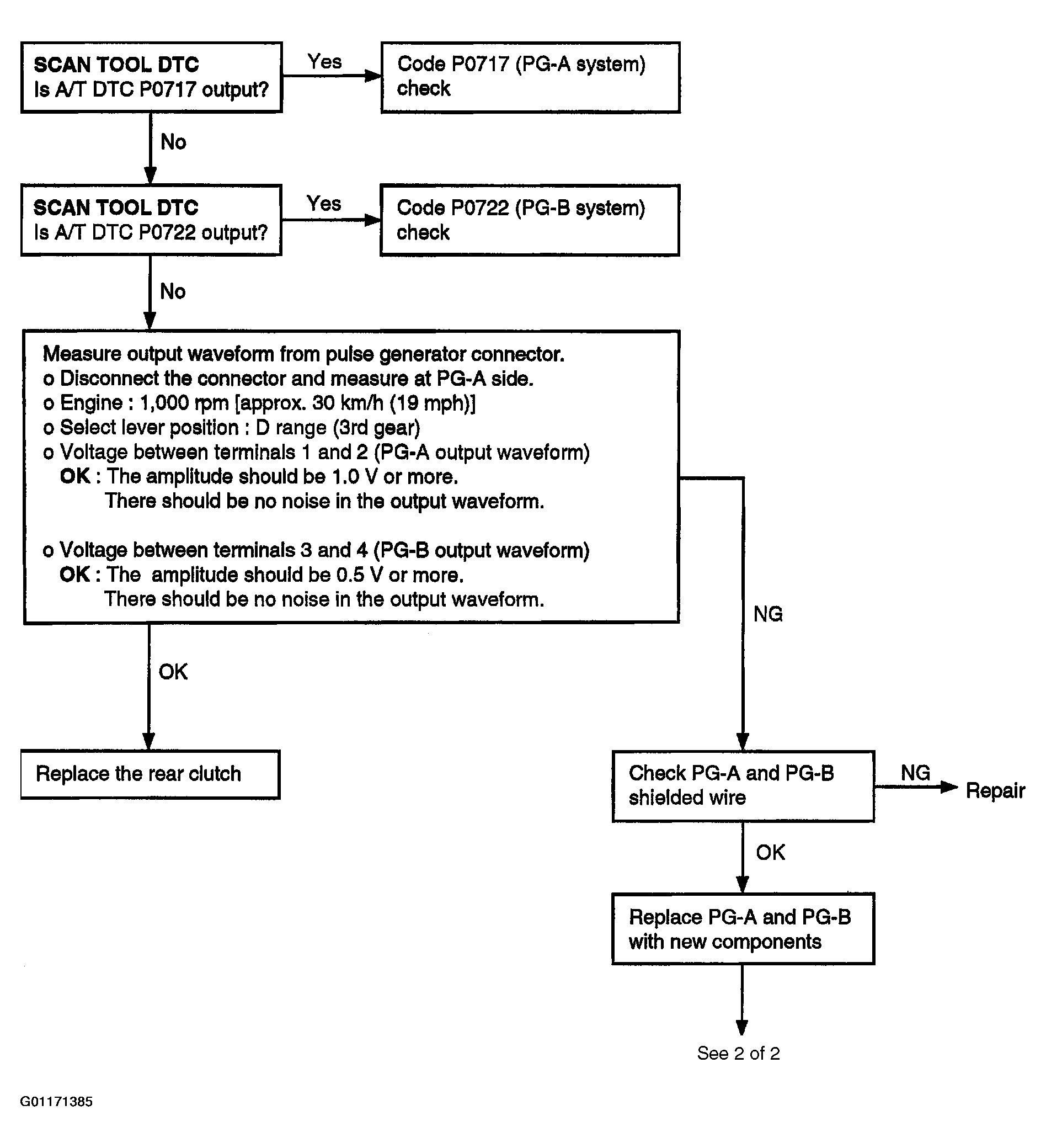

Fig 1: DTC P0731: Troubleshooting Flow (1 Of 2)

G01171385

Courtesy of HYUNDAI MOTOR CO.

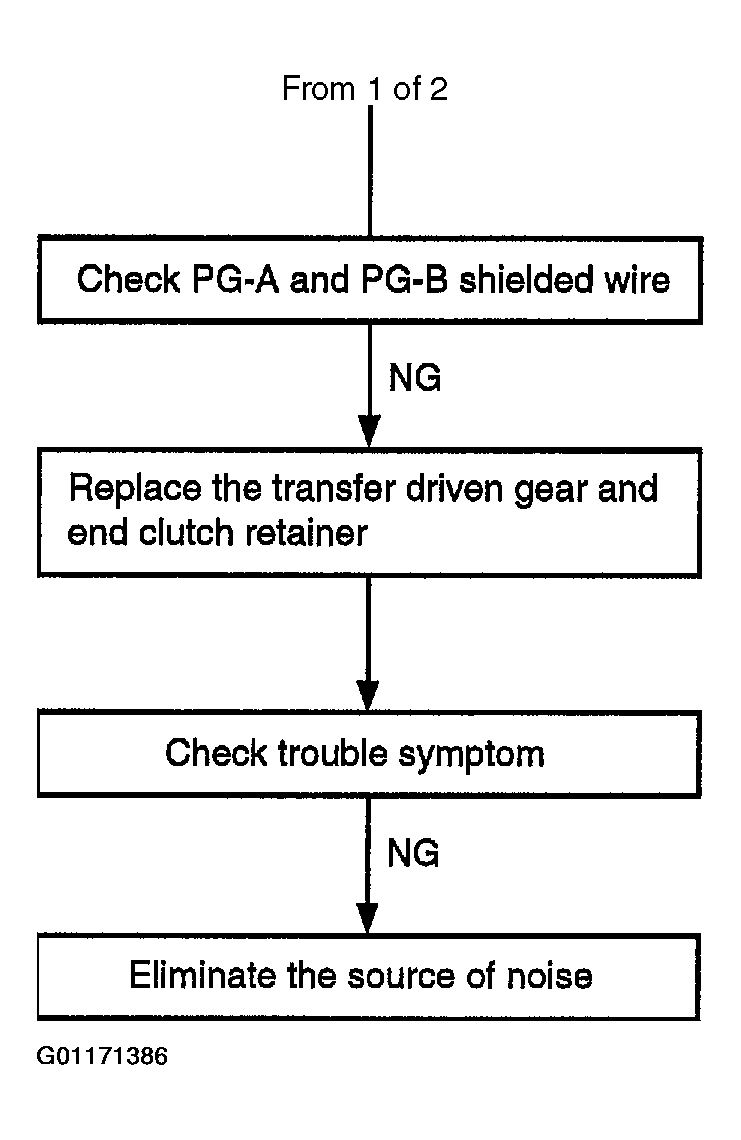

Fig 2: DTC P0731: Troubleshooting Flow (2 Of 2)

G01171386

Courtesy of HYUNDAI MOTOR CO.

Fig 1: DTC P0732: Troubleshooting Flow

G01171389

Courtesy of HYUNDAI MOTOR CO.

Fig 1: DTC P0733: Troubleshooting Flow

G01171392

Courtesy of HYUNDAI MOTOR CO.

Fig 1: DTC P0734: Troubleshooting Flow

G01171395

Courtesy of HYUNDAI MOTOR CO.
