Manual Transaxle Shift Control: Components

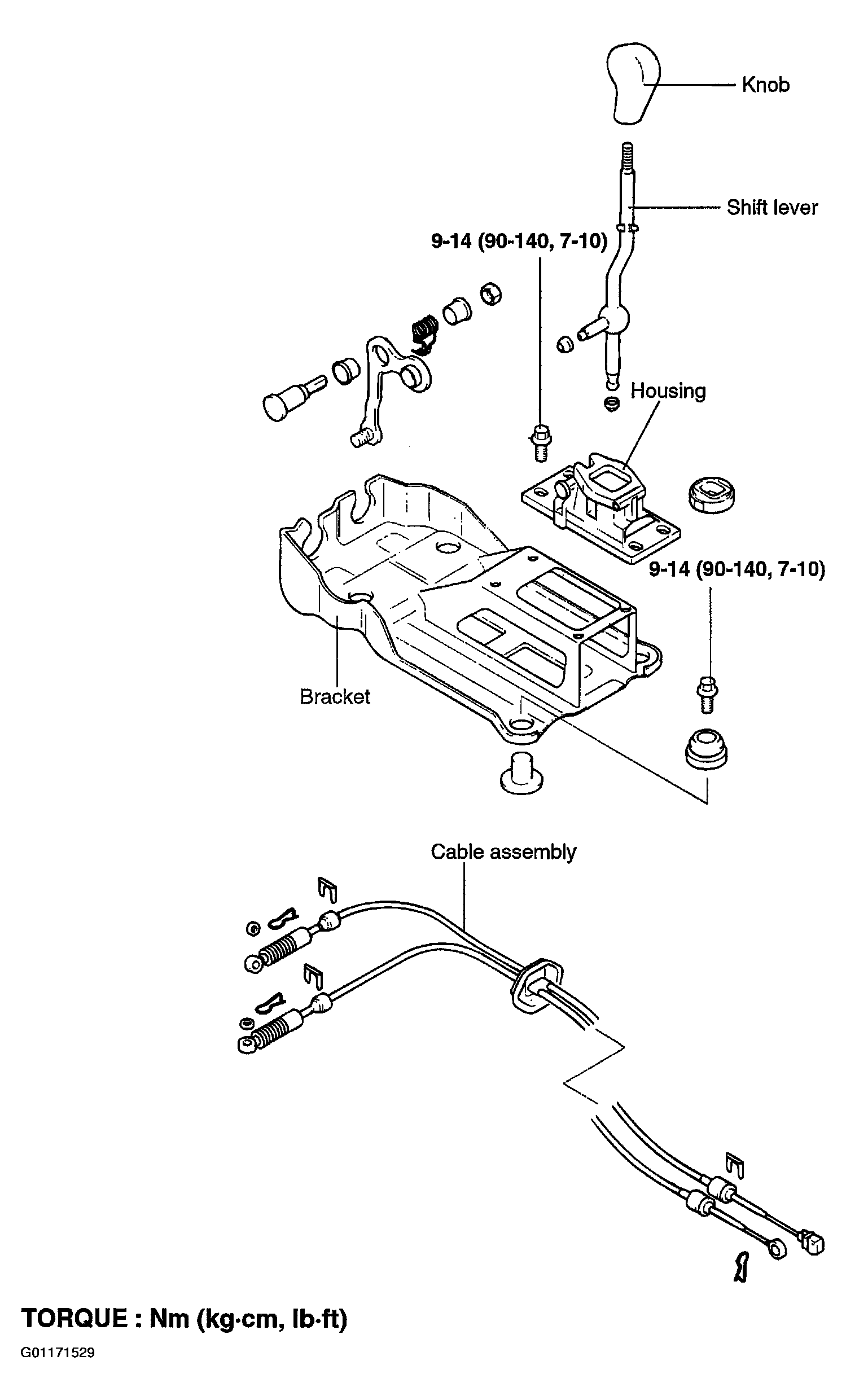

Fig 1: Manual Transaxle Shift Control Components

G01171529

Courtesy of HYUNDAI MOTOR CO.
