Inspection Procedure 1

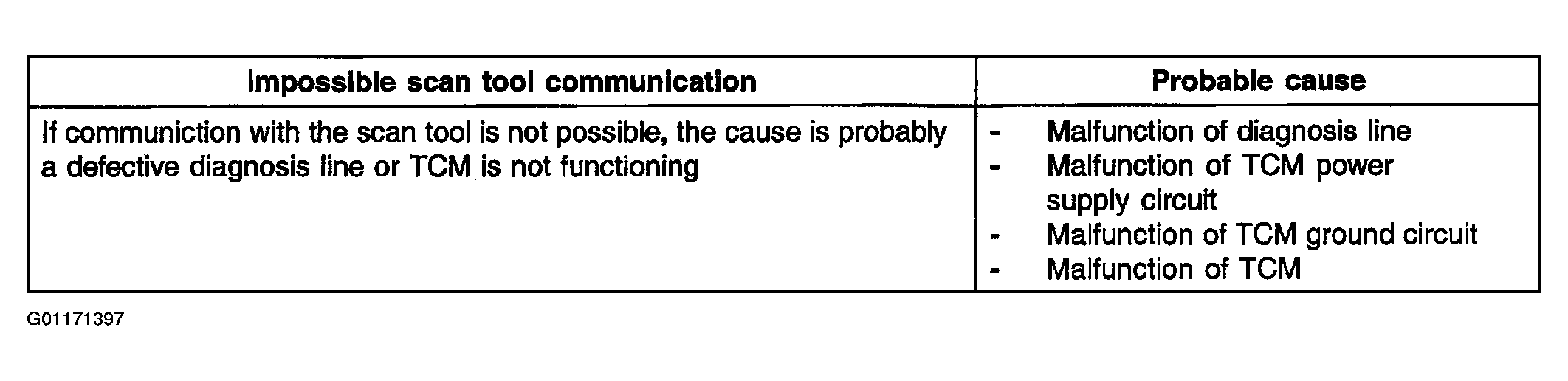

Fig 1: Probable Cause - Impossible Scan Tool Communication
G01171397Courtesy of HYUNDAI MOTOR CO.

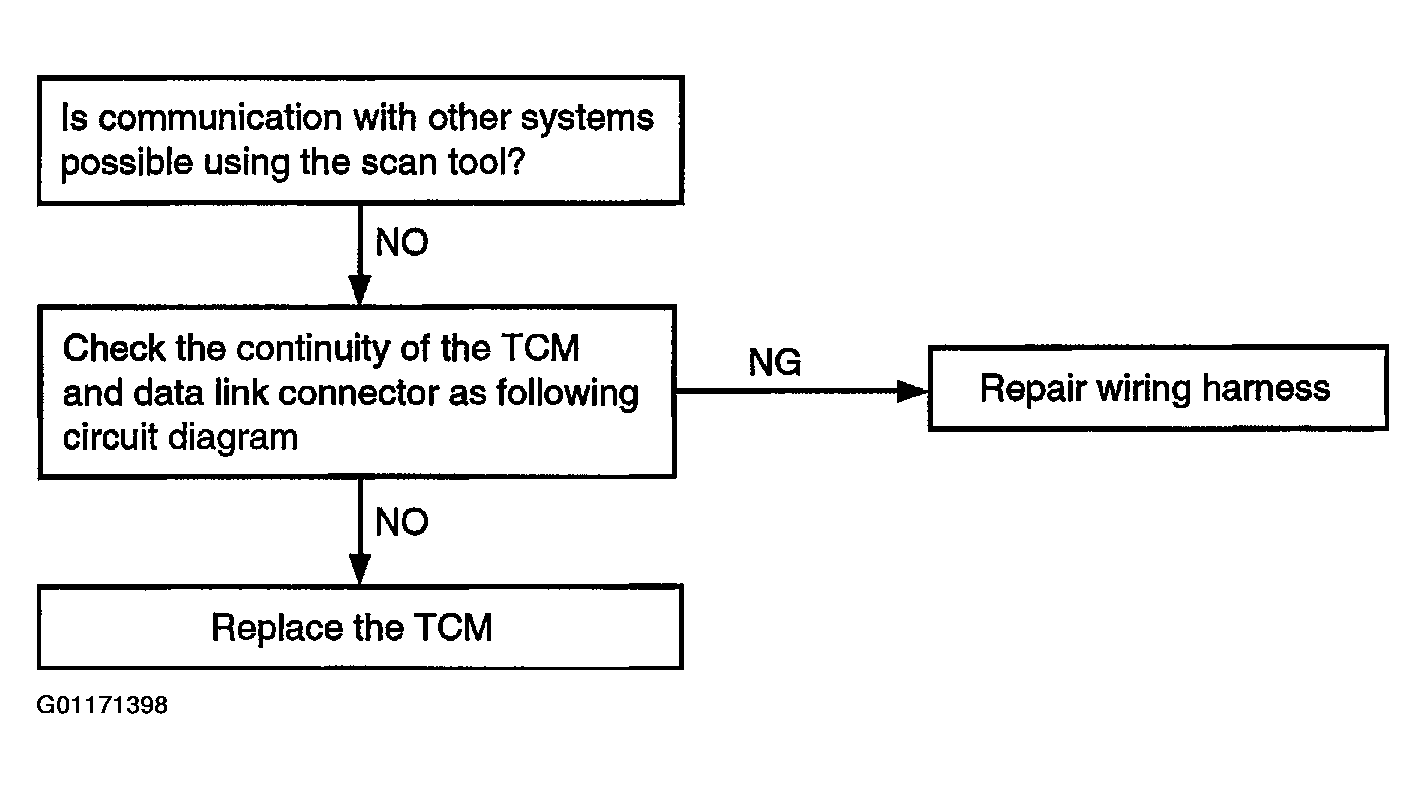

Fig 2: Troubleshooting Flow - Impossible Scan Tool Communication
G01171398Courtesy of HYUNDAI MOTOR CO.
