Section 2 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Troubleshooting
Automatic Transaxle System: Troubleshooting
WARNING:
This page is about a different variant/trim than selected.

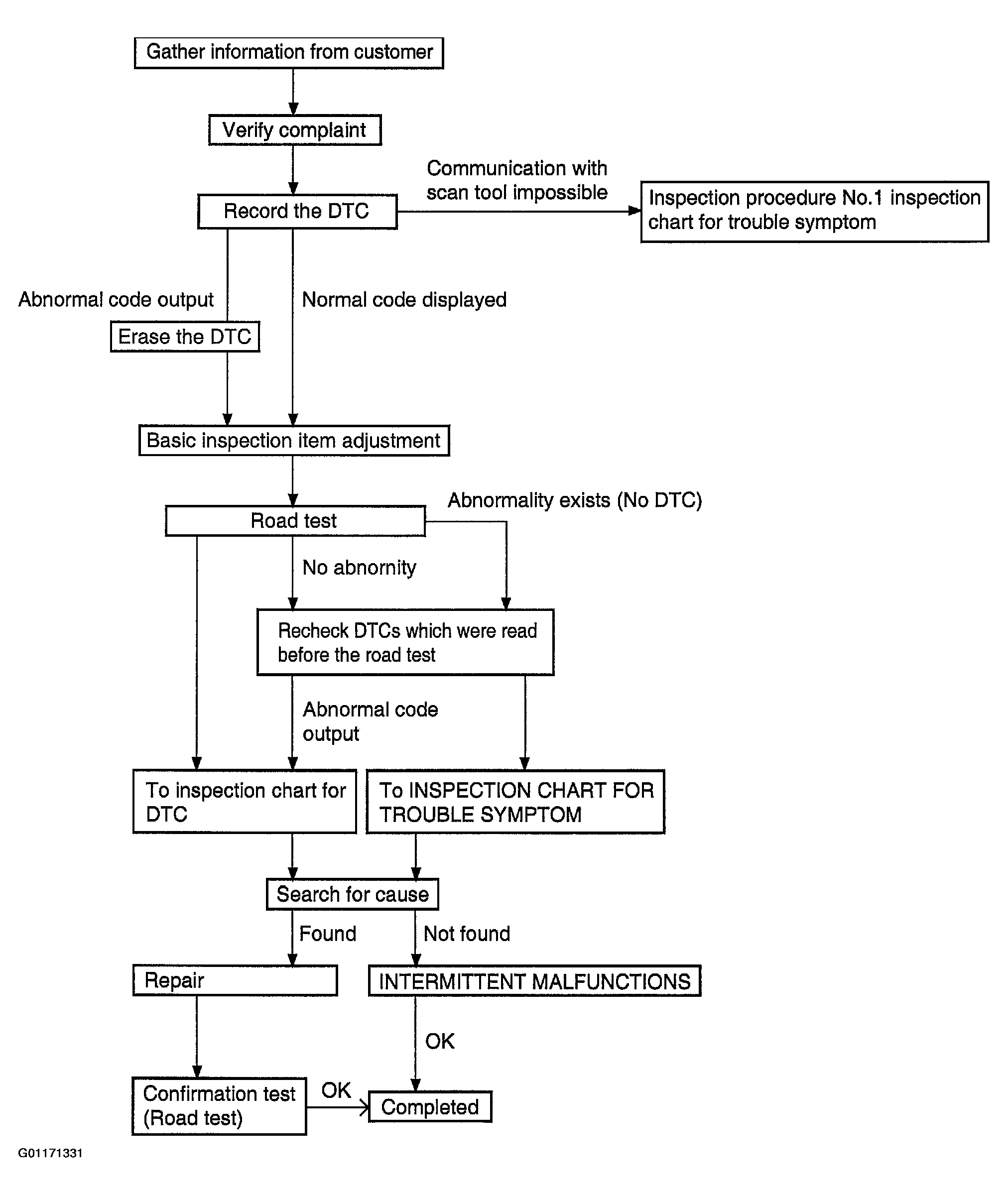

Fig 1: Troubleshooting Procedure Diagram
Courtesy of HYUNDAI MOTOR CO.
