Section 2 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Automatic Transaxle Shift Control
>>
Components
Automatic Transaxle Shift Control: Components
WARNING:
This page is about a different variant/trim than selected.

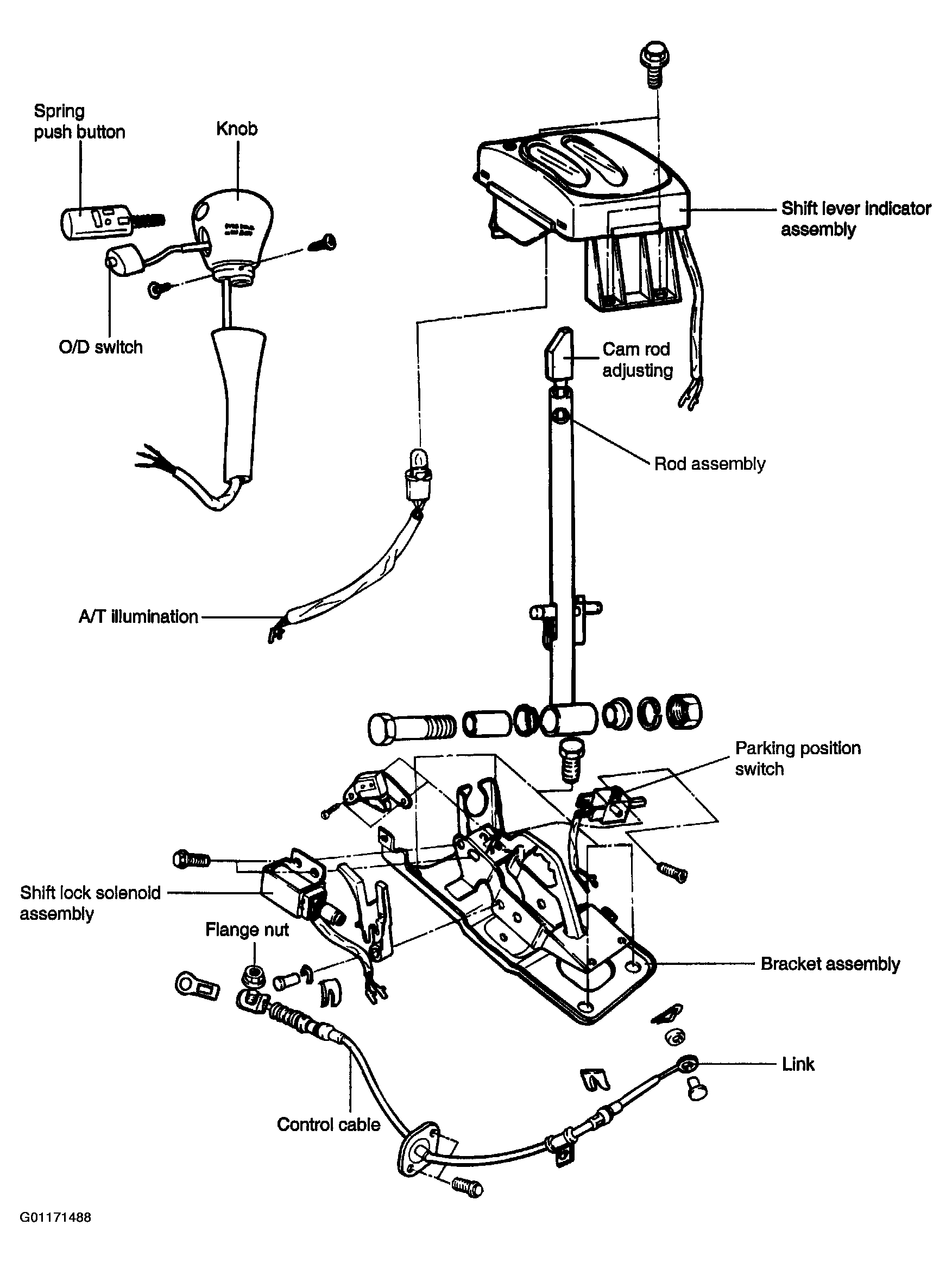

Fig 1: Automatic Transaxle Shift Control Components
Courtesy of HYUNDAI MOTOR CO.
