Blower Switch
WARNING: This page is about a different car, the 2001 Hyundai Accent and 2000 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

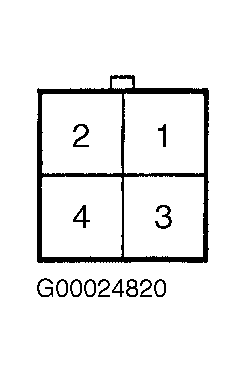

Ensure continuity exists between specified switch terminals. See BLOWER SWITCH CONTINUITY table. If continuity is not as specified, replace blower switch. See Figure.
BLOWER SWITCH CONTINUITY
| Switch Position | Terminal No. |
|---|---|
| Off | ..... |
| 1 (Low) | 3, 4 & 8 |
| 2 (Medium-Low) | 3, 4 & 7 |
| 3 (Medium-High) | 3, 4 & 6 |
| 4 (High) | 2, 3 & 4 |
