Inspection Procedure 8

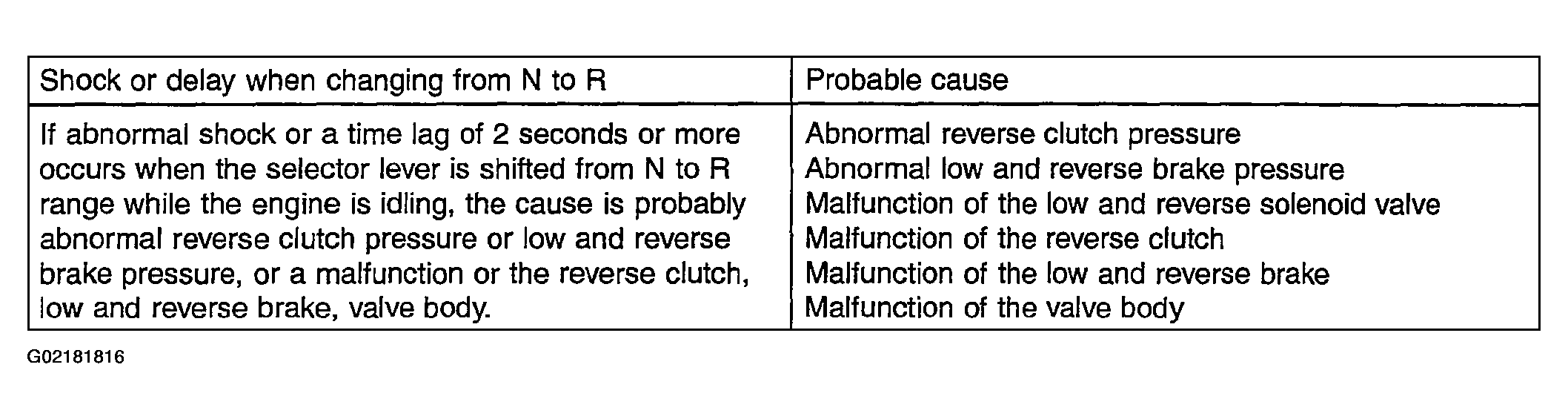

Fig 1: Shocks When Changing From Neutral-To-Reverse & Large Time Lag Possible Causes Table
G02181816

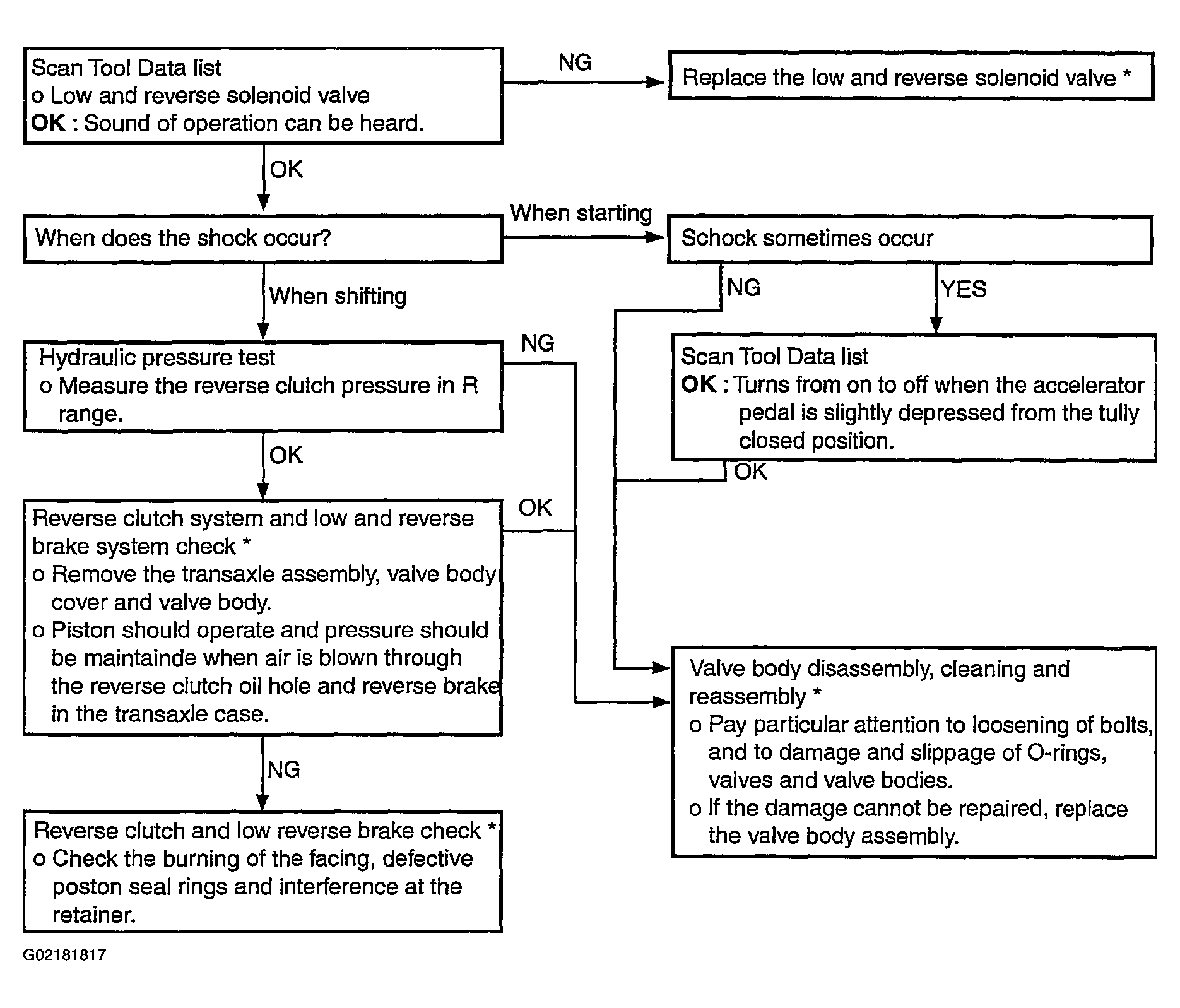

Fig 2: Shocks When Changing From Neutral-To-Reverse & Large Time Lag Diagnostic Flow Chart
G02181817
