Inspection Procedure 7

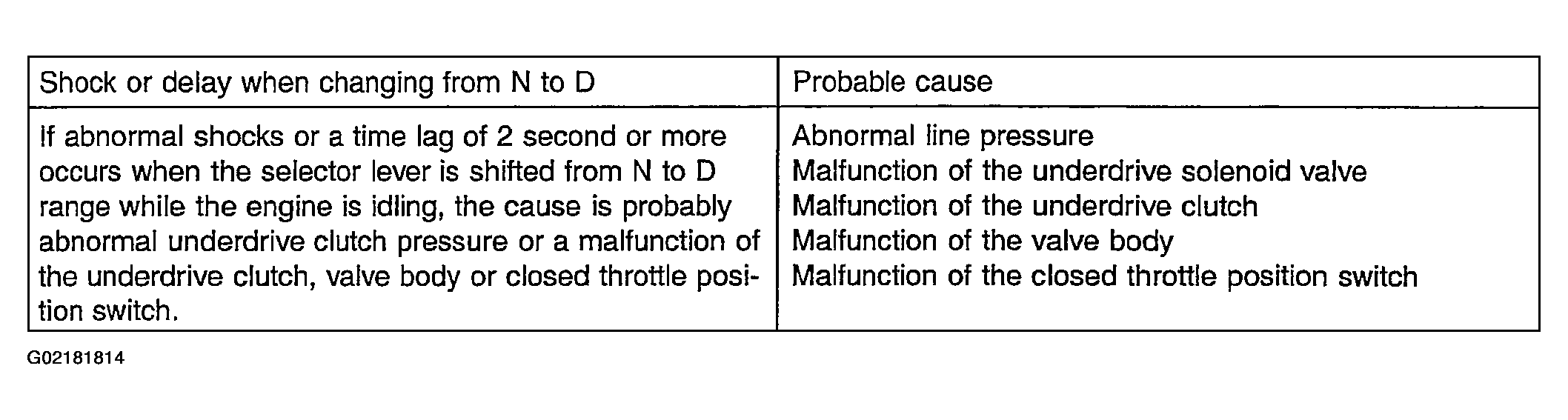

Fig 1: Shocks When Changing From Neutral-To-Drive & Time Lag Possible Causes Table

G02181814

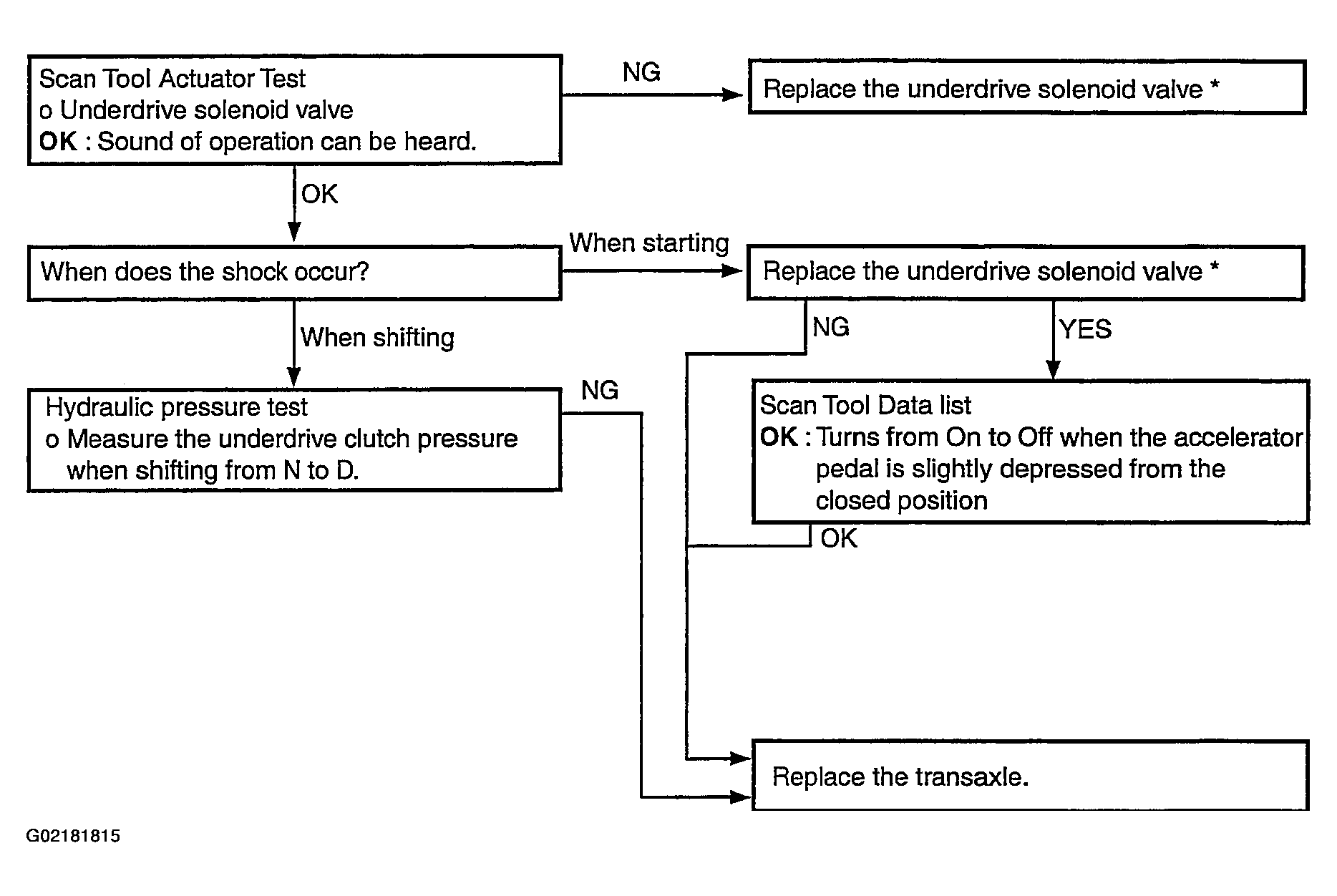

Fig 2: Shocks When Changing From Neutral-To-Drive & Time Lag Diagnostic Flow Chart

G02181815
