Inspection Procedure 3

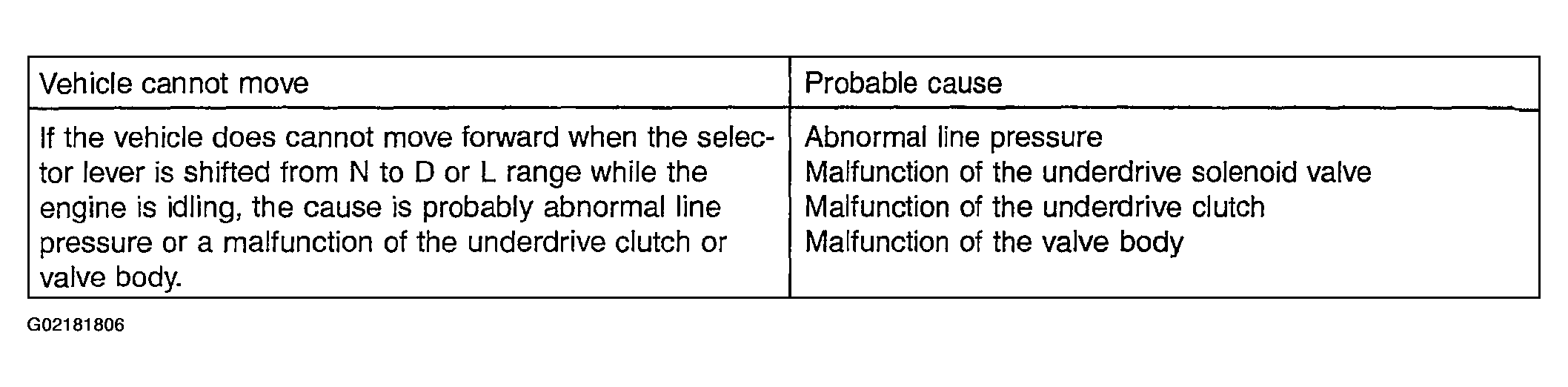

Fig 1: Vehicle Does Not Move Forward Possible Causes Table

G02181806

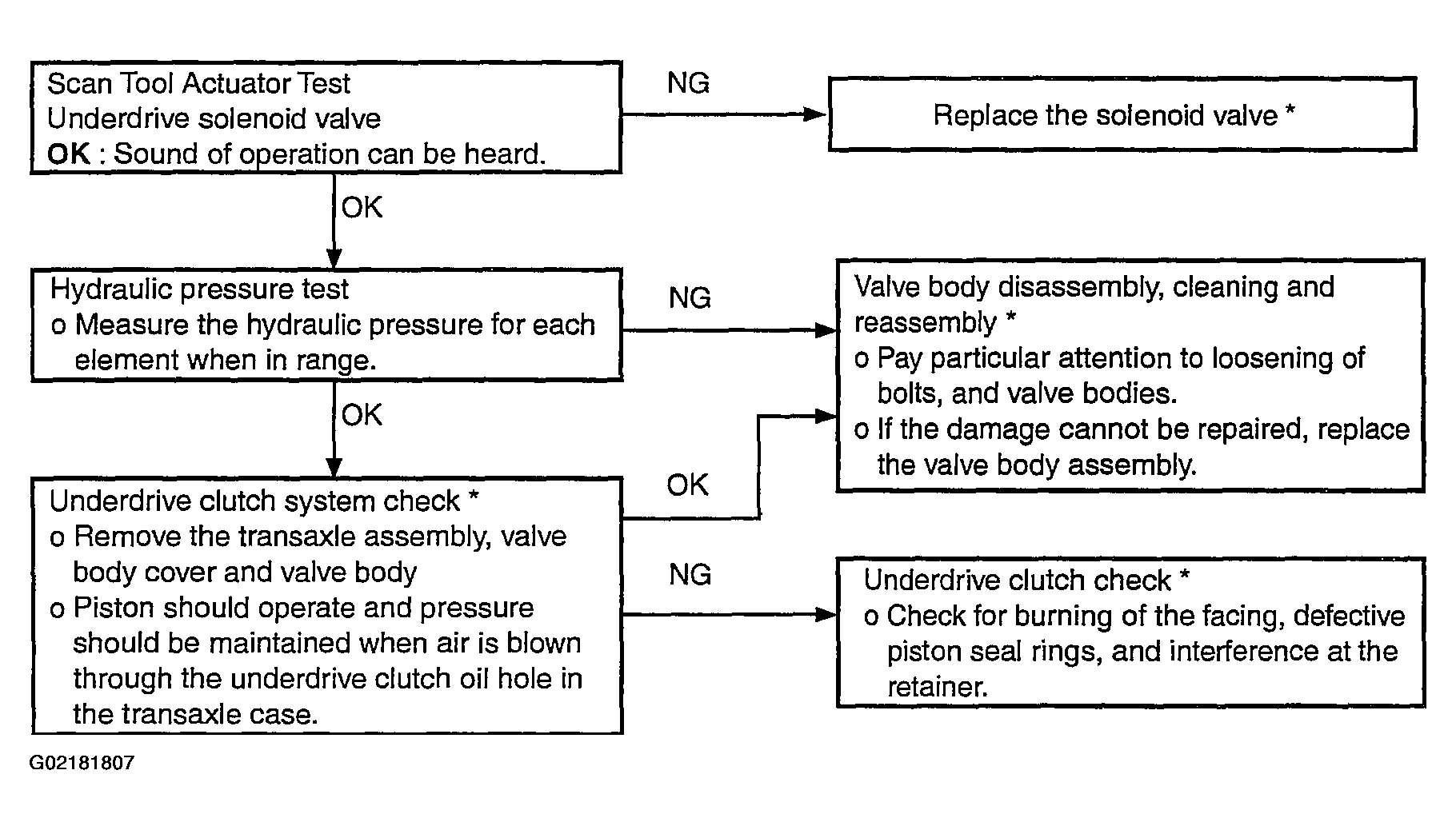

Fig 2: Vehicle Does Not Move Forward Diagnostic Flow Chart

G02181807
