Inspection Procedure 15

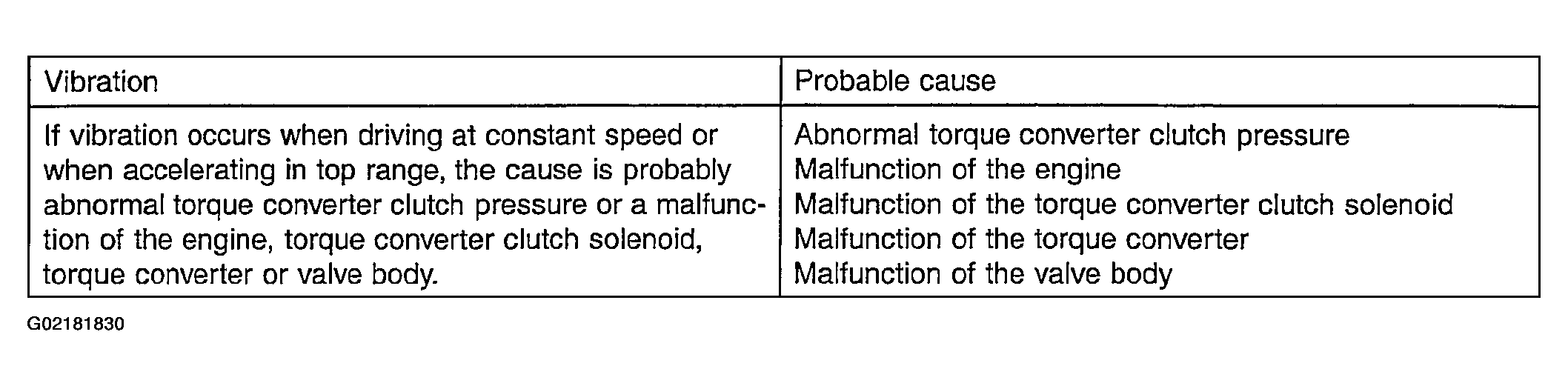

Fig 1: Vibration Possible Causes Table
G02181830

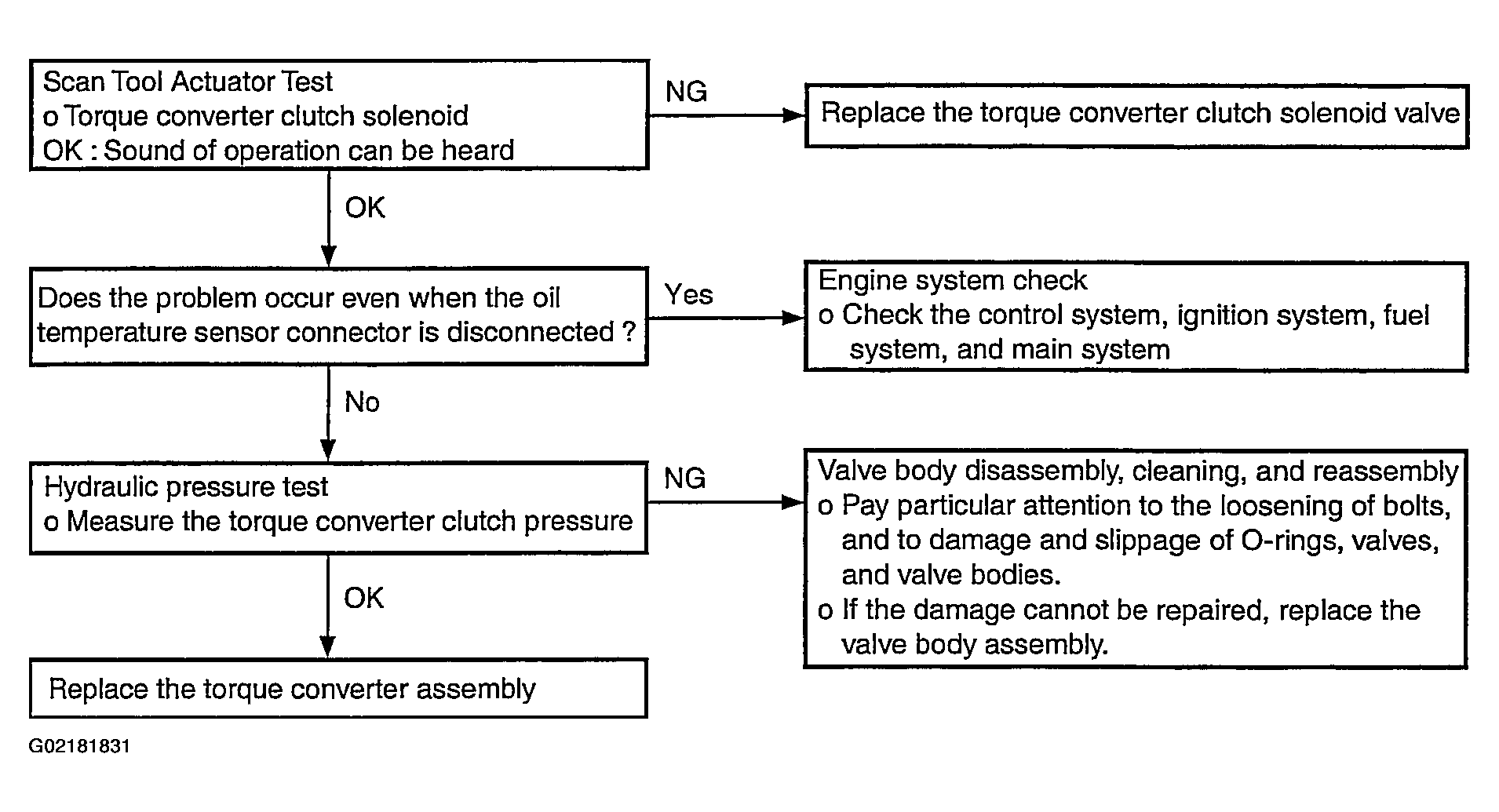

Fig 2: Vibration Diagnostic Flow Chart
G02181831
