Inspection Procedure 14

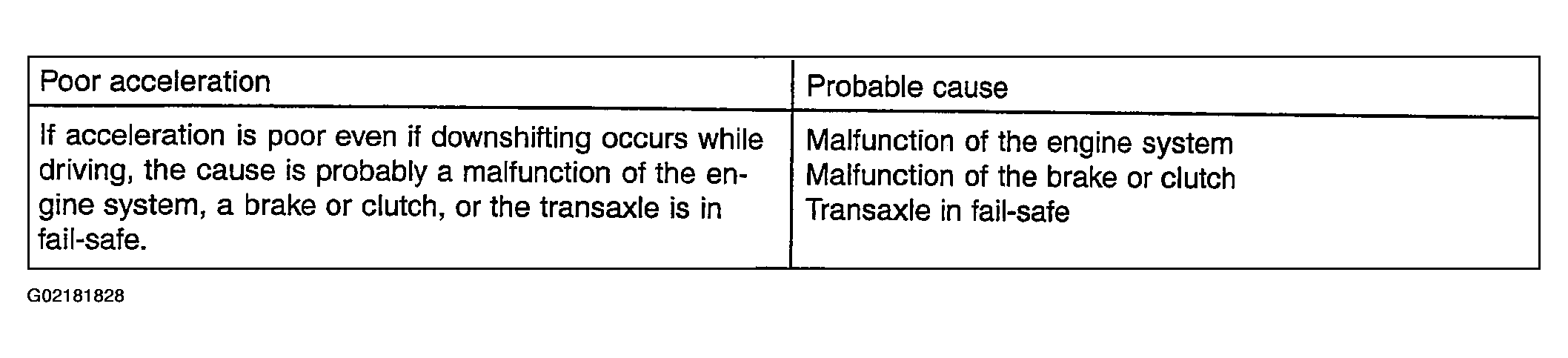

Fig 1: Poor Acceleration Possible Causes Table

G02181828

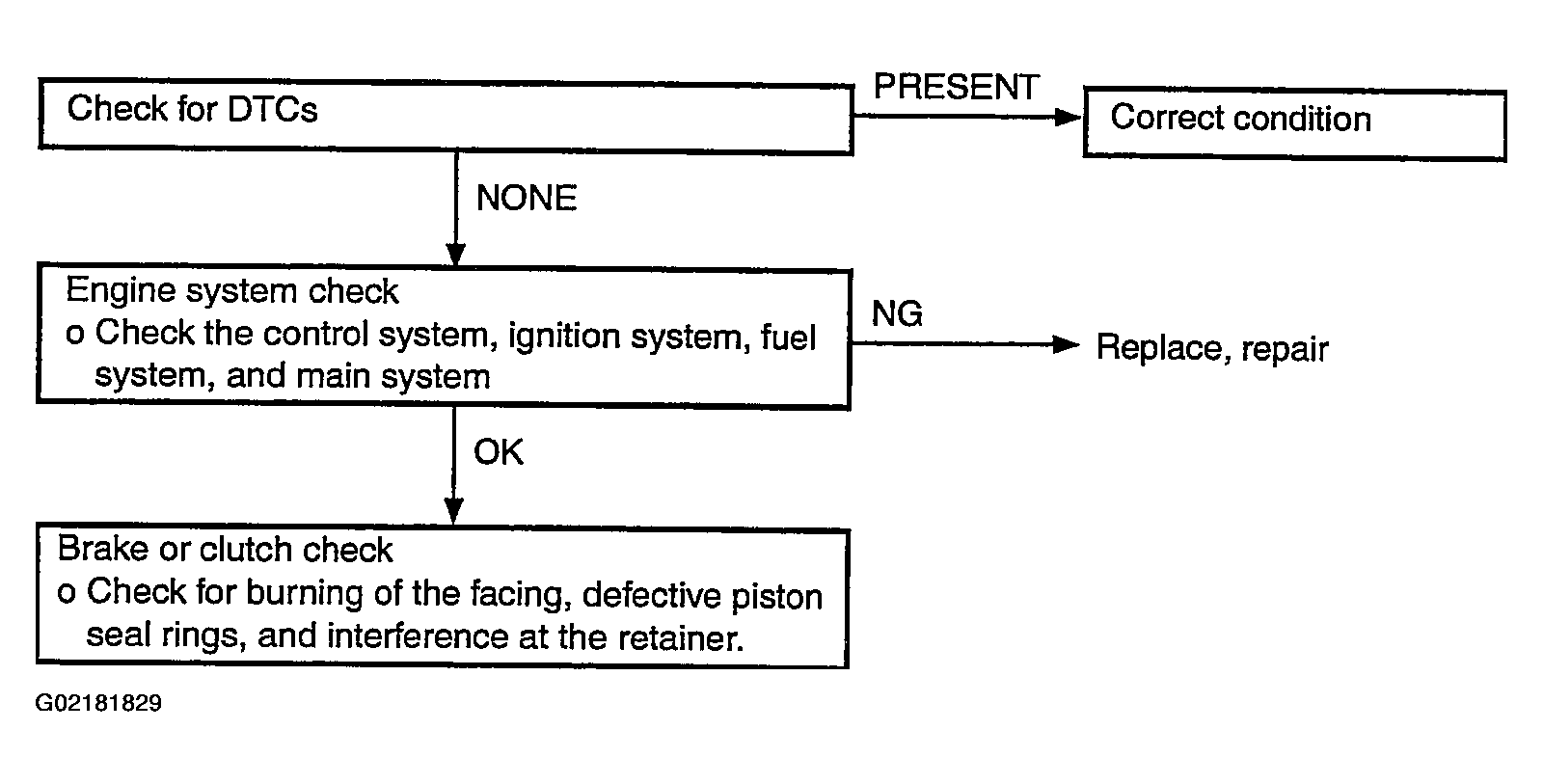

Fig 2: Poor Acceleration Diagnostic Flow Chart

G02181829
