Inspection Procedure 13

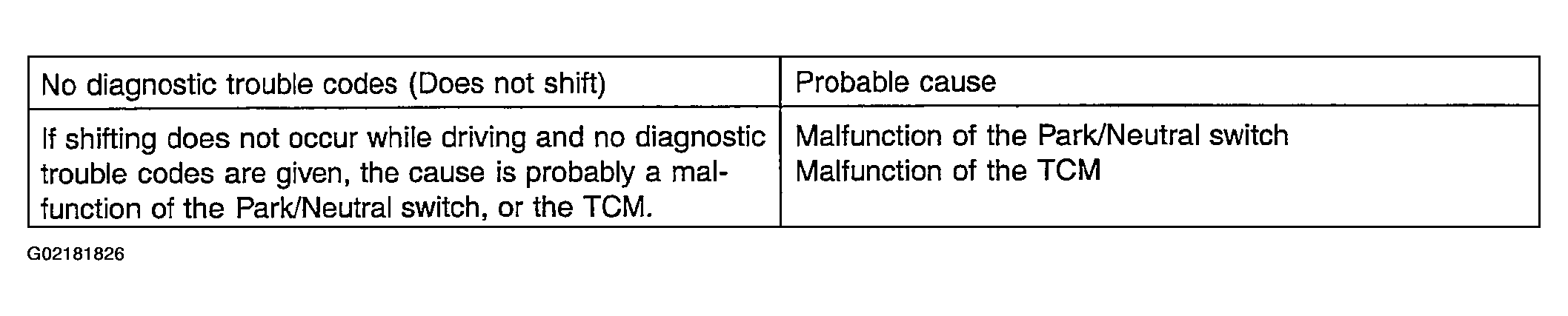

Fig 1: No Diagnostic Trouble Codes (Does Not Shift) Possible Causes Table

G02181826

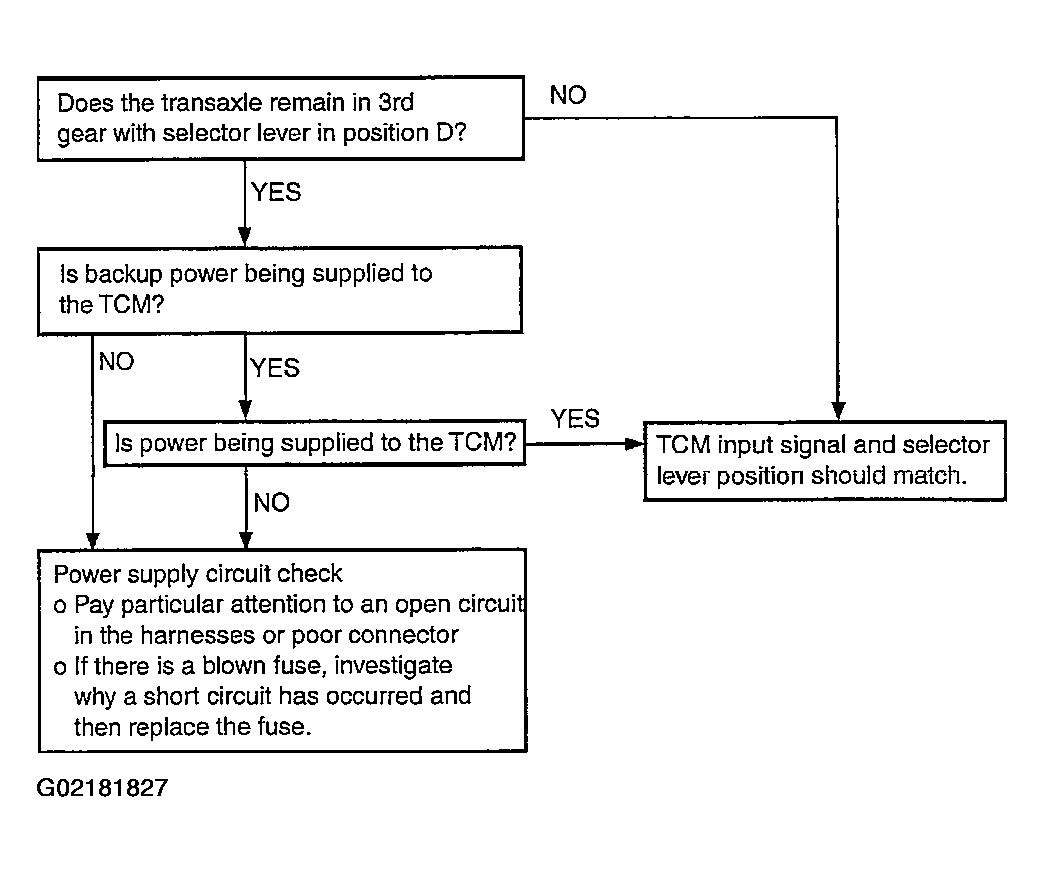

Fig 2: No Diagnostic Trouble Codes (Does Not Shift) Diagnostic Flow Chart

G02181827
