Inspection Procedure 11

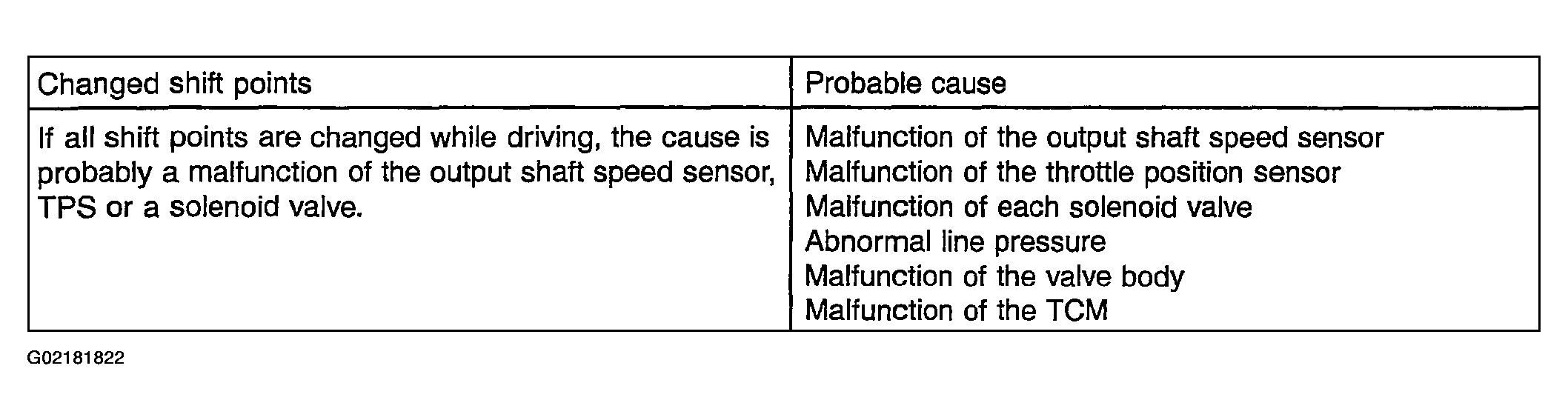

Fig 1: Changed Shifting Points Possible Causes Table

G02181822

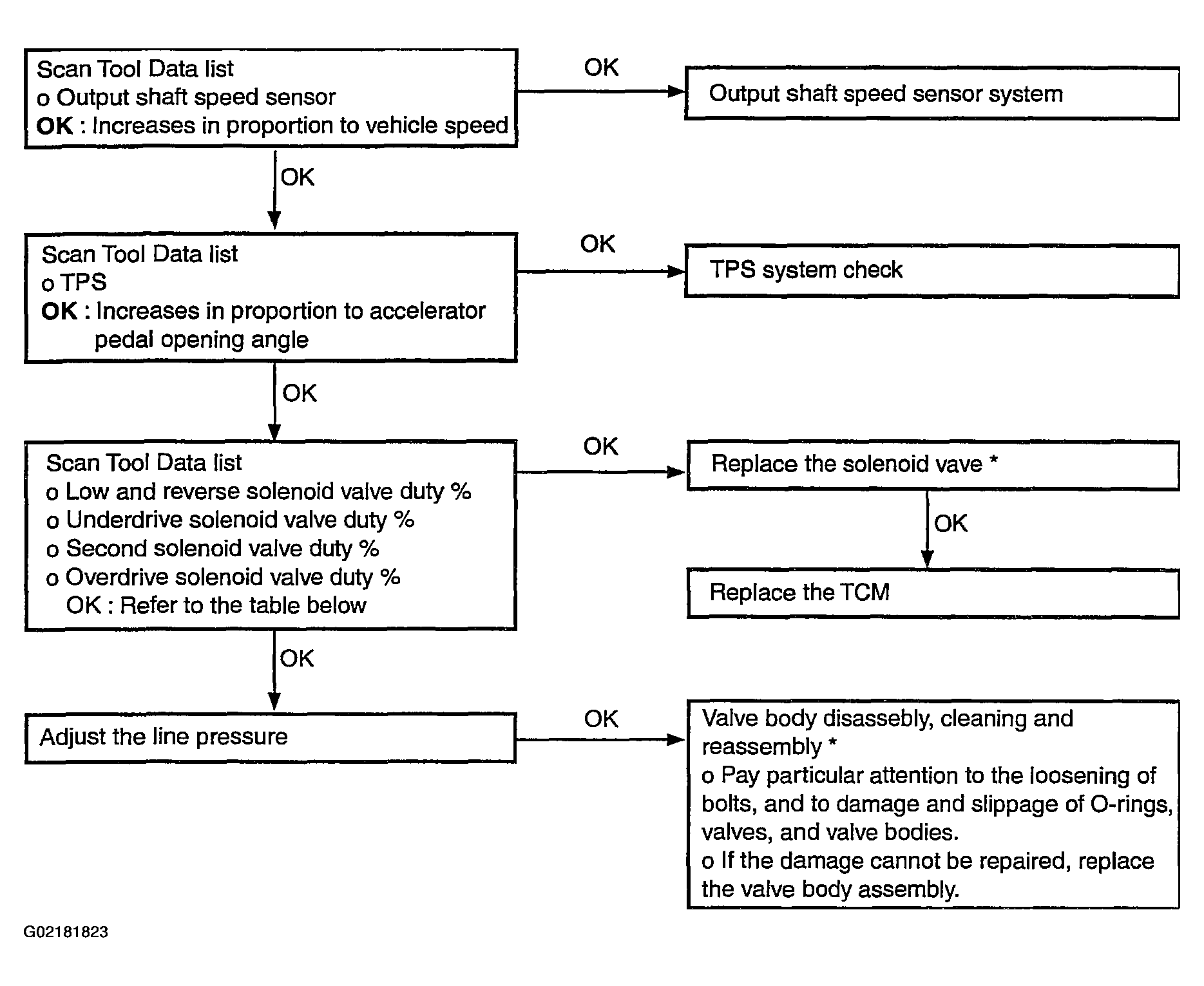

Fig 2: Changed Shifting Points Diagnostic Flow Chart

G02181823
