Inspection Procedure 10

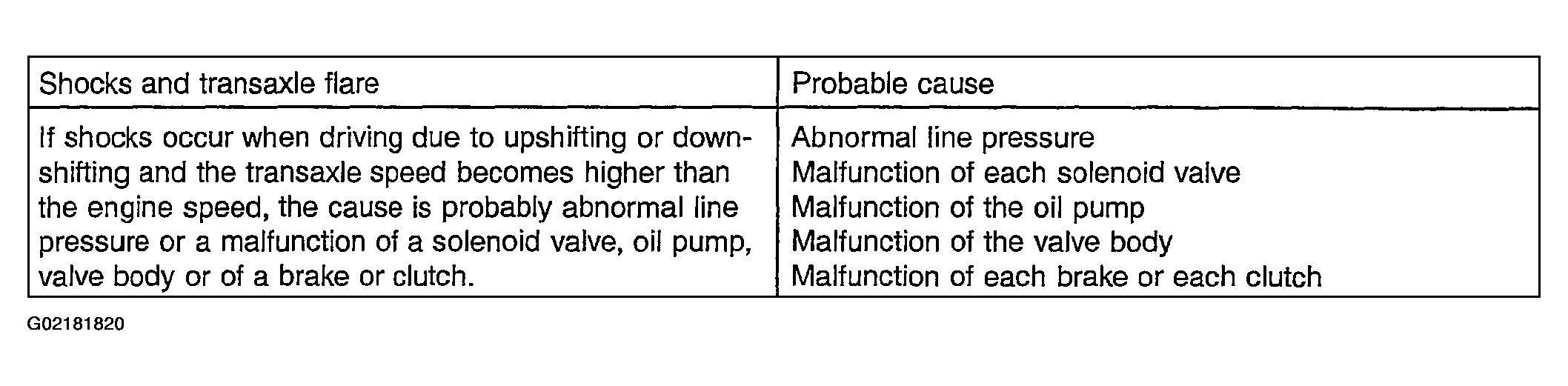

Fig 1: Shocks & Transaxle Flare Possible Causes Table

G02181820

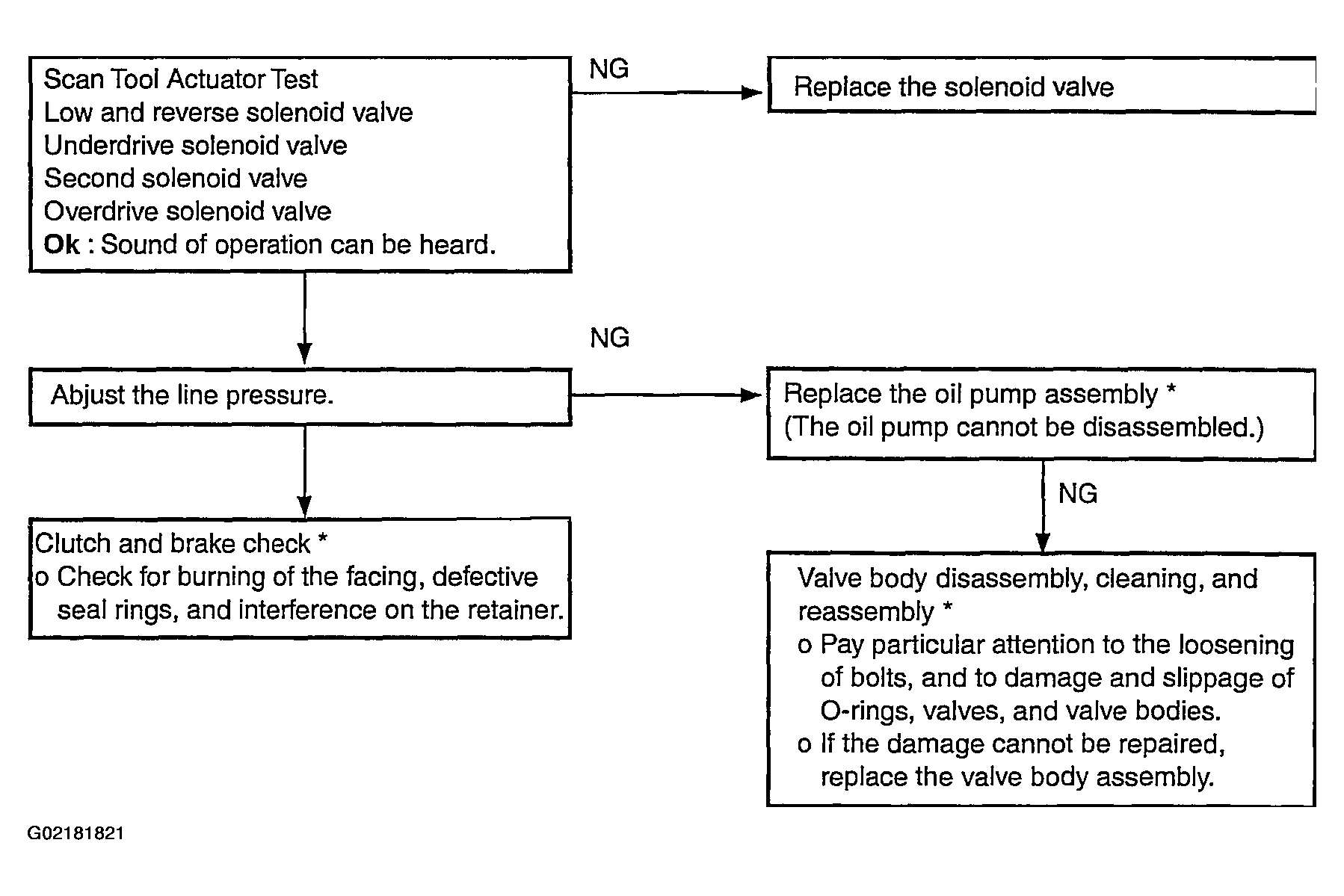

Fig 2: Shocks & Transaxle Flare Diagnostic Flow Chart

G02181821
