Inspection Procedure 1

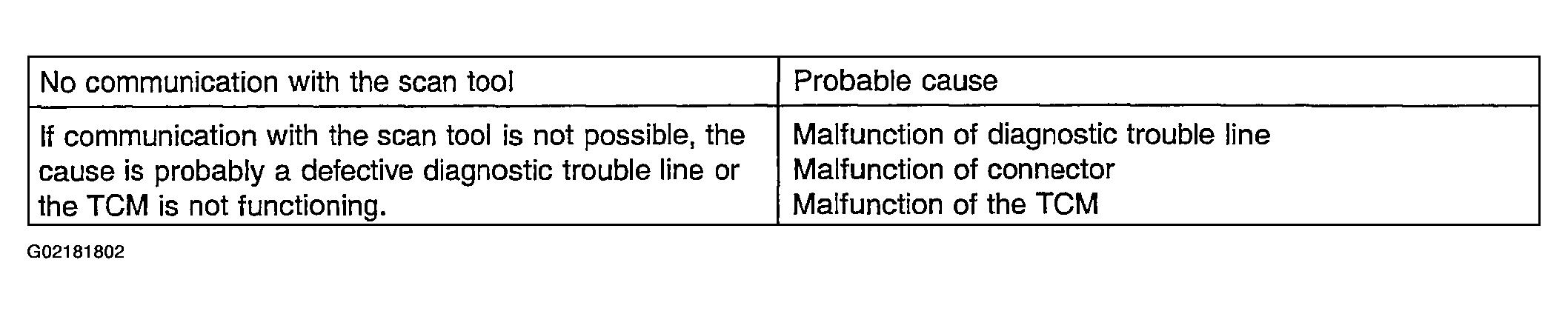

Fig 1: No Communication With Scan Tool Possible Causes Table

G02181802

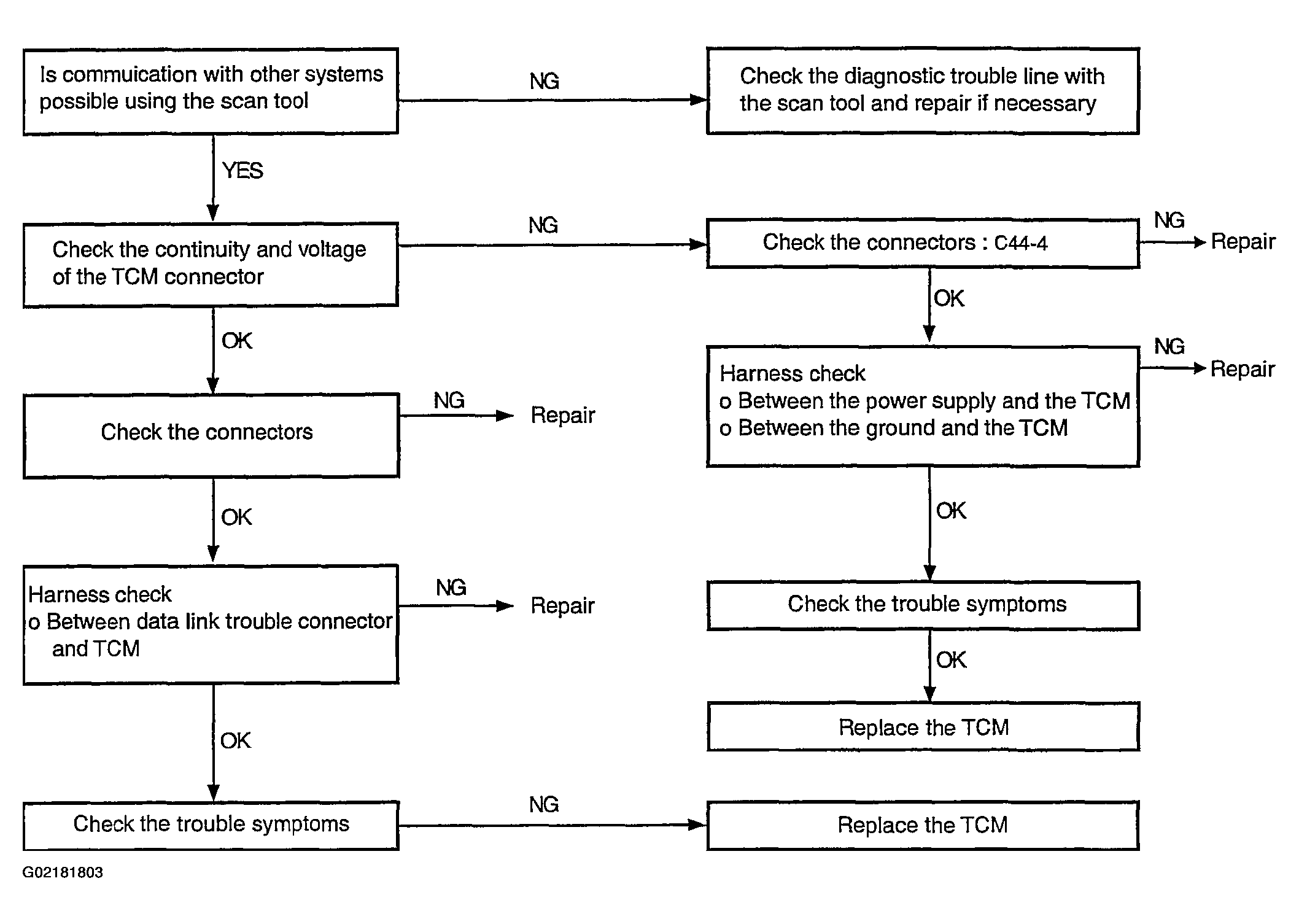

Fig 2: No Communication With Scan Tool Diagnostic Flow Chart

G02181803
