Automatic Transaxle System Troubleshooting
>>
Troubleshooting (A/T)
>>
Inspection Process For Diagnostic Trouble Codes
>>
DTC P0715: Input Shaft Speed Sensor System
DTC P0715: Input Shaft Speed Sensor System

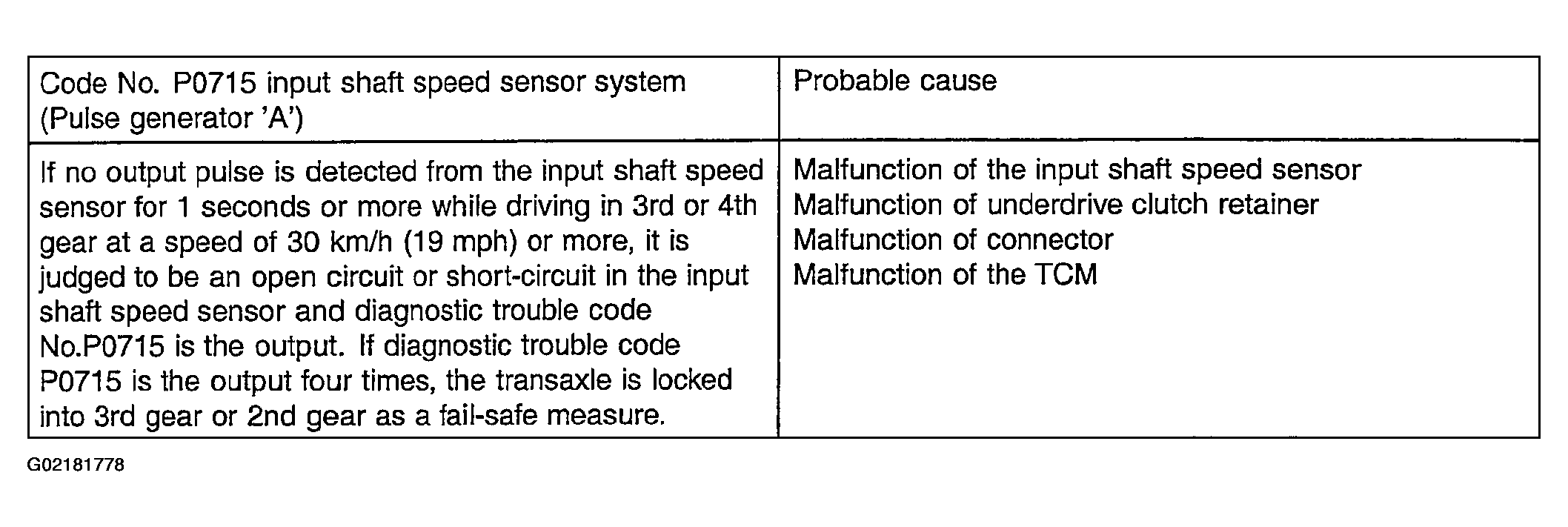

Fig 1: DTC P0715 Detecting Conditions & Probable Causes

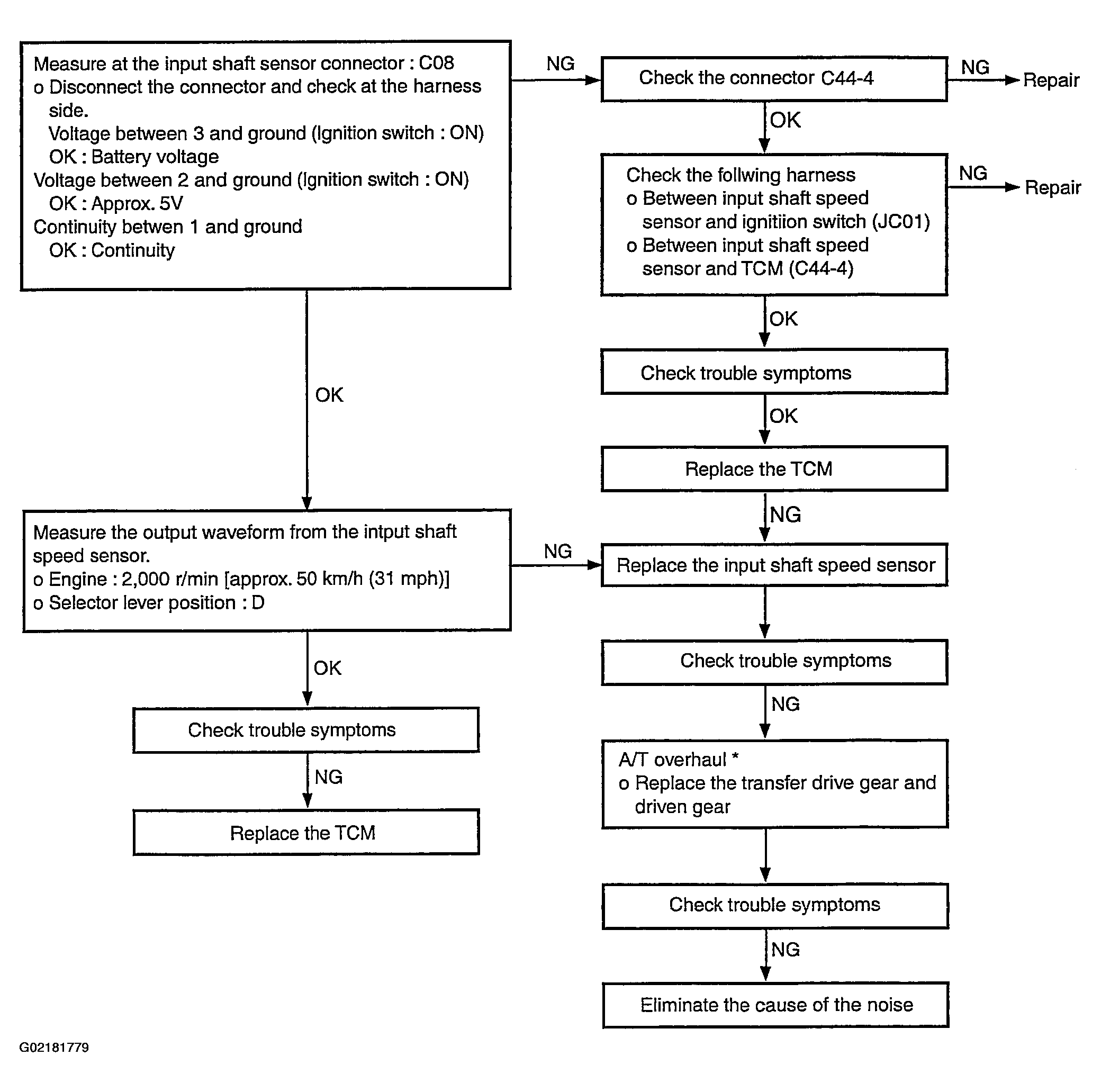

Fig 2: DTC P0715 Diagnostic Flow Chart
