Automatic Transaxle System Troubleshooting
>>
Troubleshooting (A/T)
>>
Inspection Chart For Trouble Symptoms
Inspection Chart For Trouble Symptoms

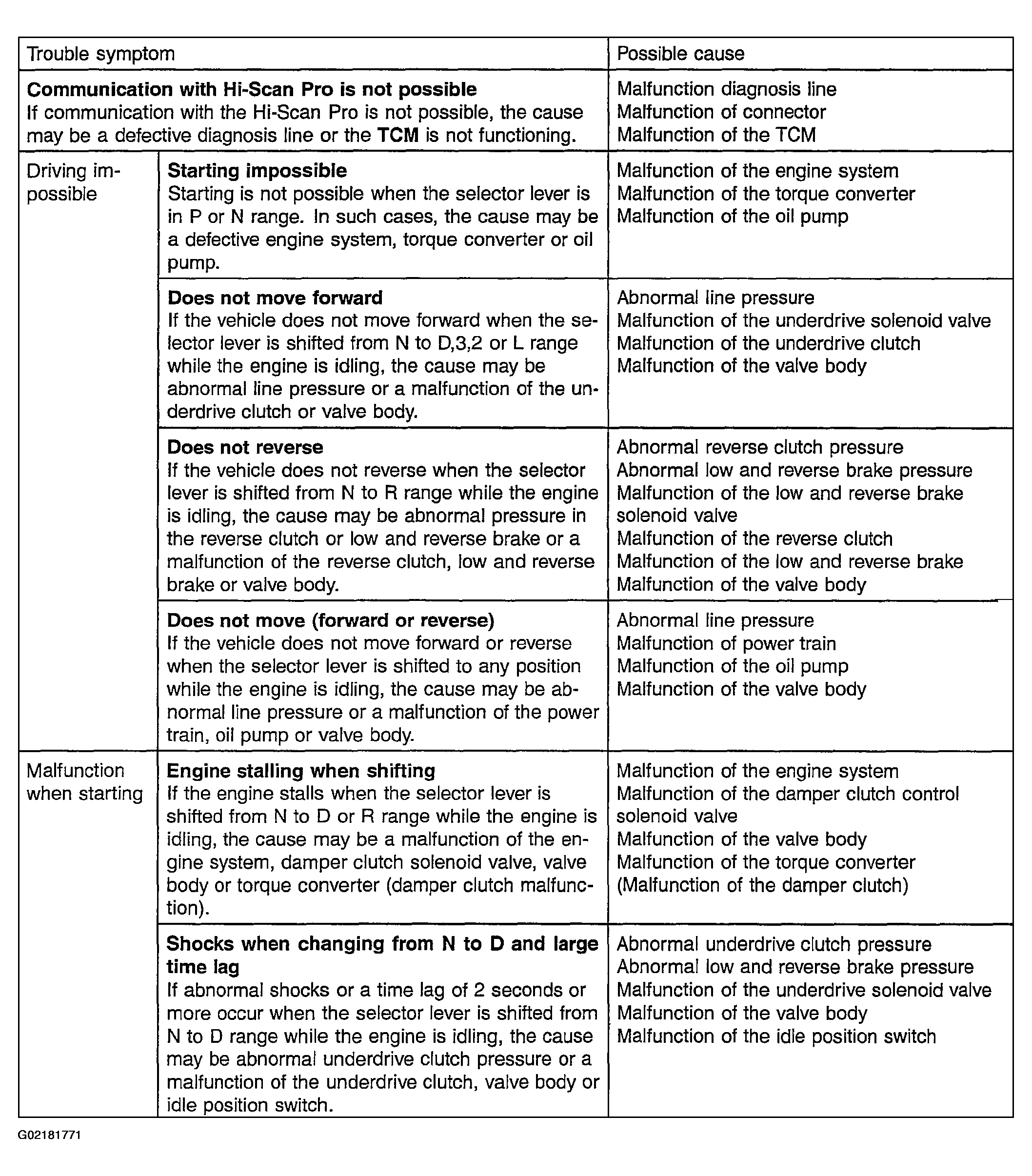

Fig 1: Inspection Chart For Trouble Symptoms (1 Of 3)

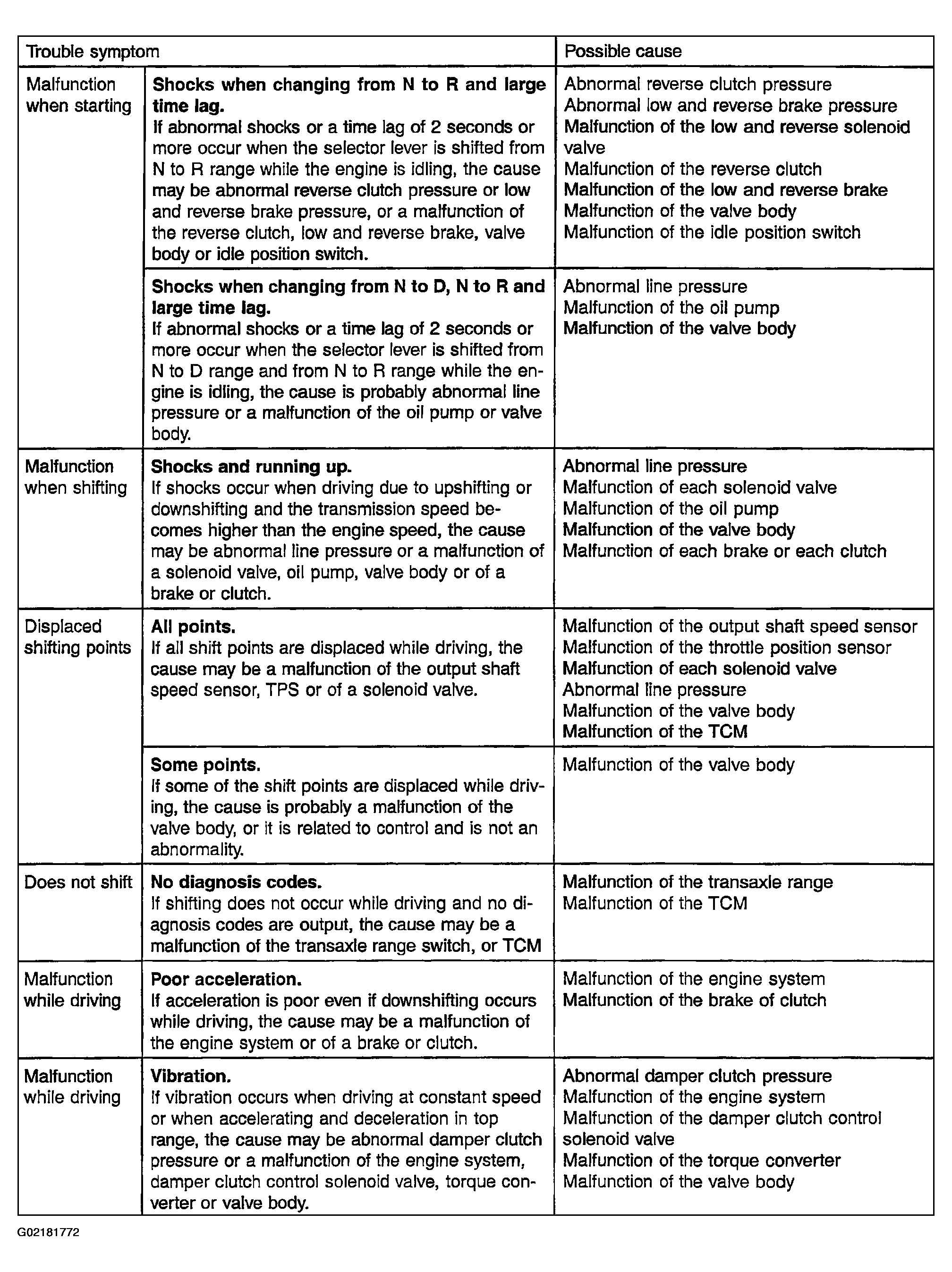

Fig 2: Inspection Chart For Trouble Symptoms (2 Of 3)

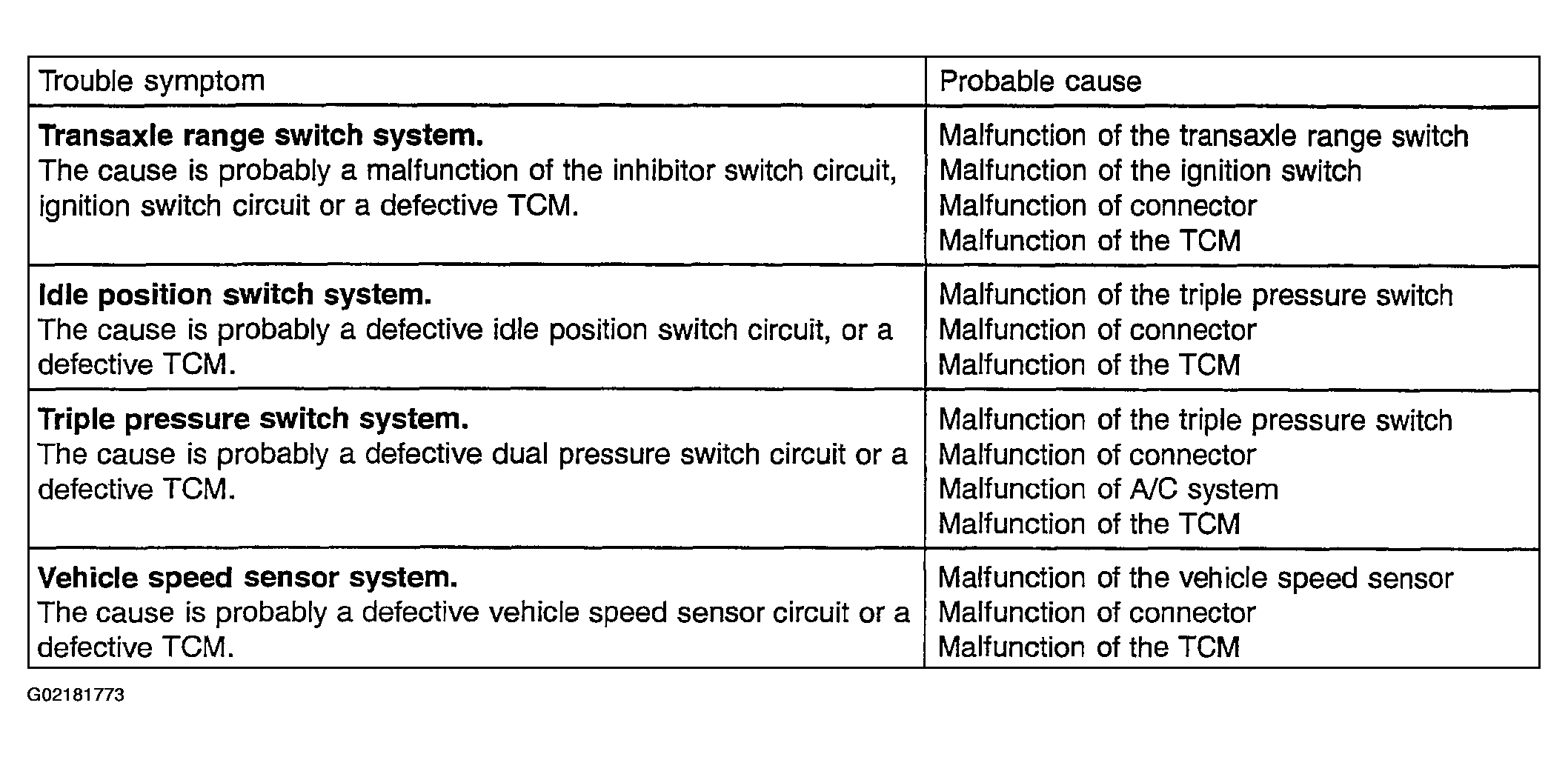

Fig 3: Inspection Chart For Trouble Symptoms (3 Of 3)
