Inspection Chart For Diagnosis Codes

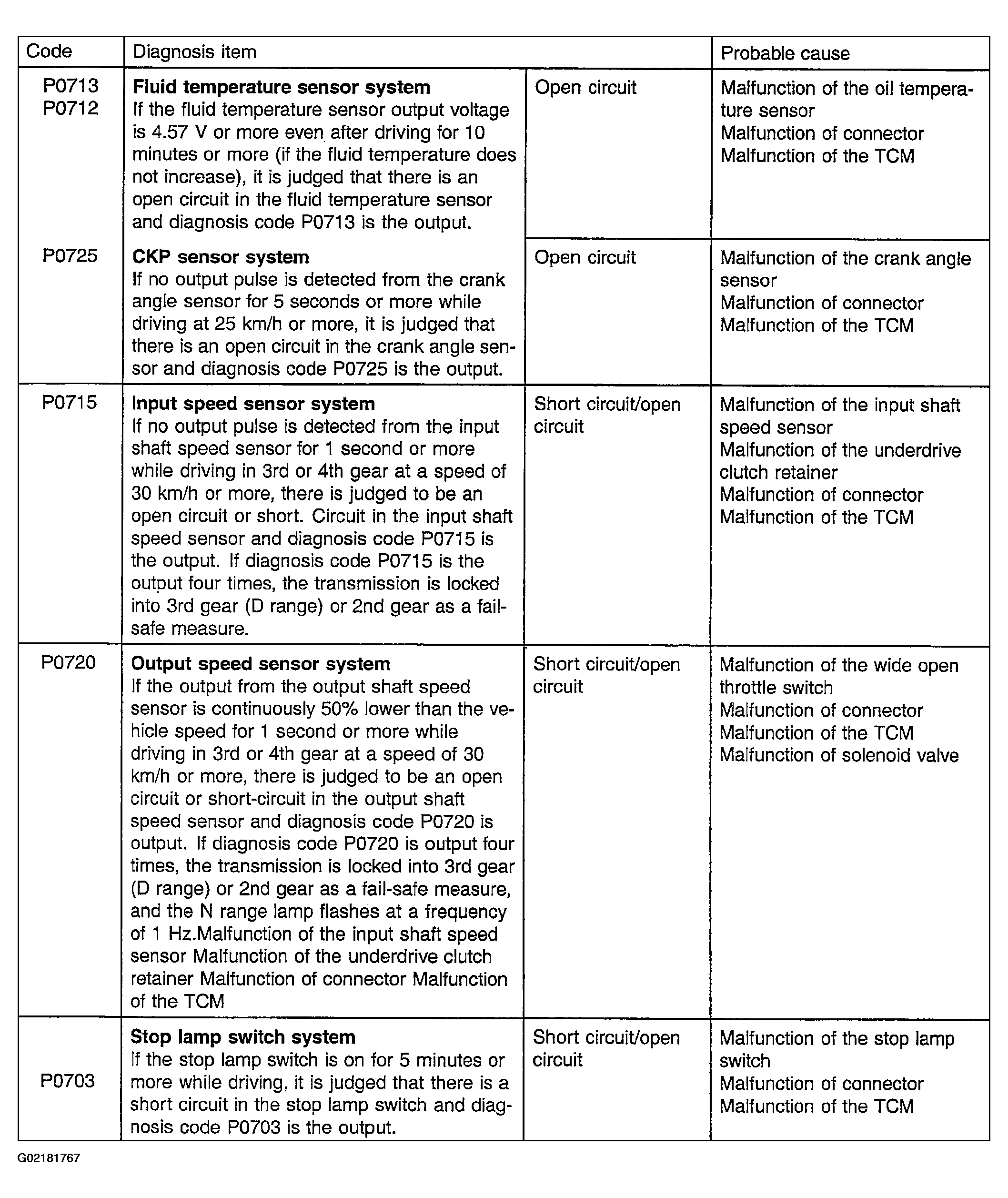

Fig 1: Inspection Chart For DTCs (P0712, P0713, P0725, P0720 & P0703)
G02181767

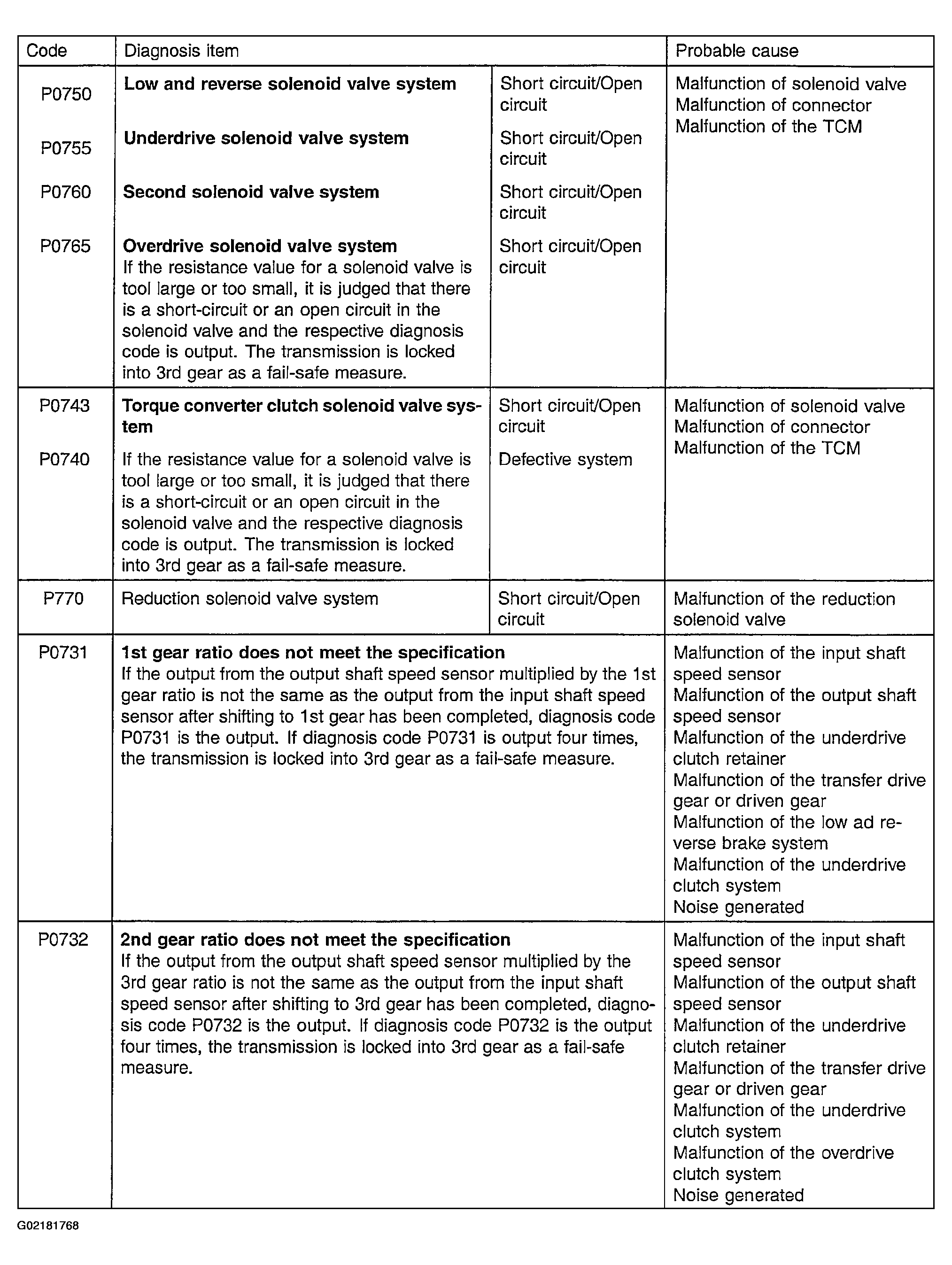

Fig 2: Inspection Chart For DTCs (P0750, P0755, P0760, P0765, P0743, P0740, P0770, P0731 & P0732)
G02181768

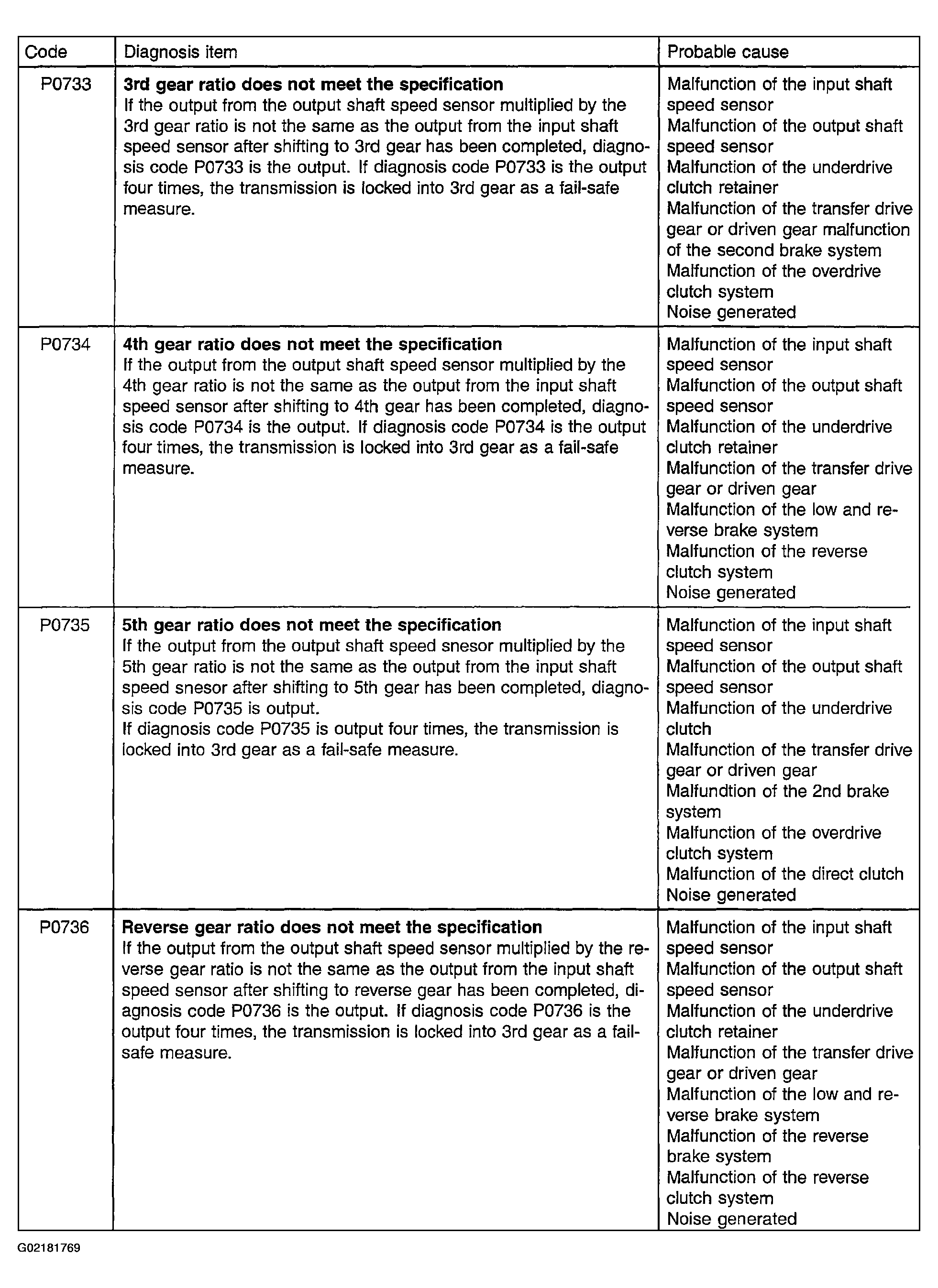

Fig 3: Inspection Chart For DTCs (P0733, P0734, P0735 & P0736)
G02181769

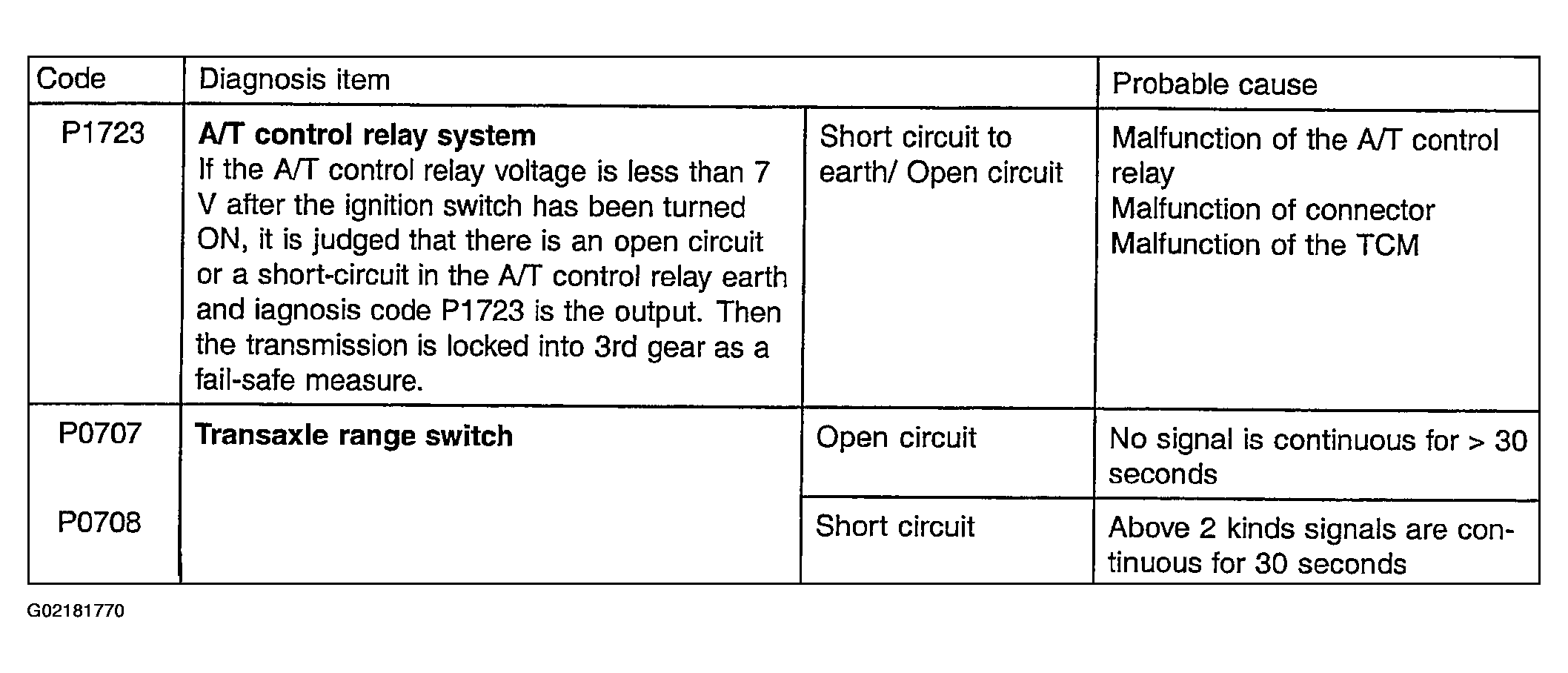

Fig 4: Inspection Chart For DTCS (P1723, P0707 & P0708)
G02181770
