Automatic Transaxle System Troubleshooting
>>
Troubleshooting (A/T)
>>
Diagnostic Trouble Code Description
Diagnostic Trouble Code Description

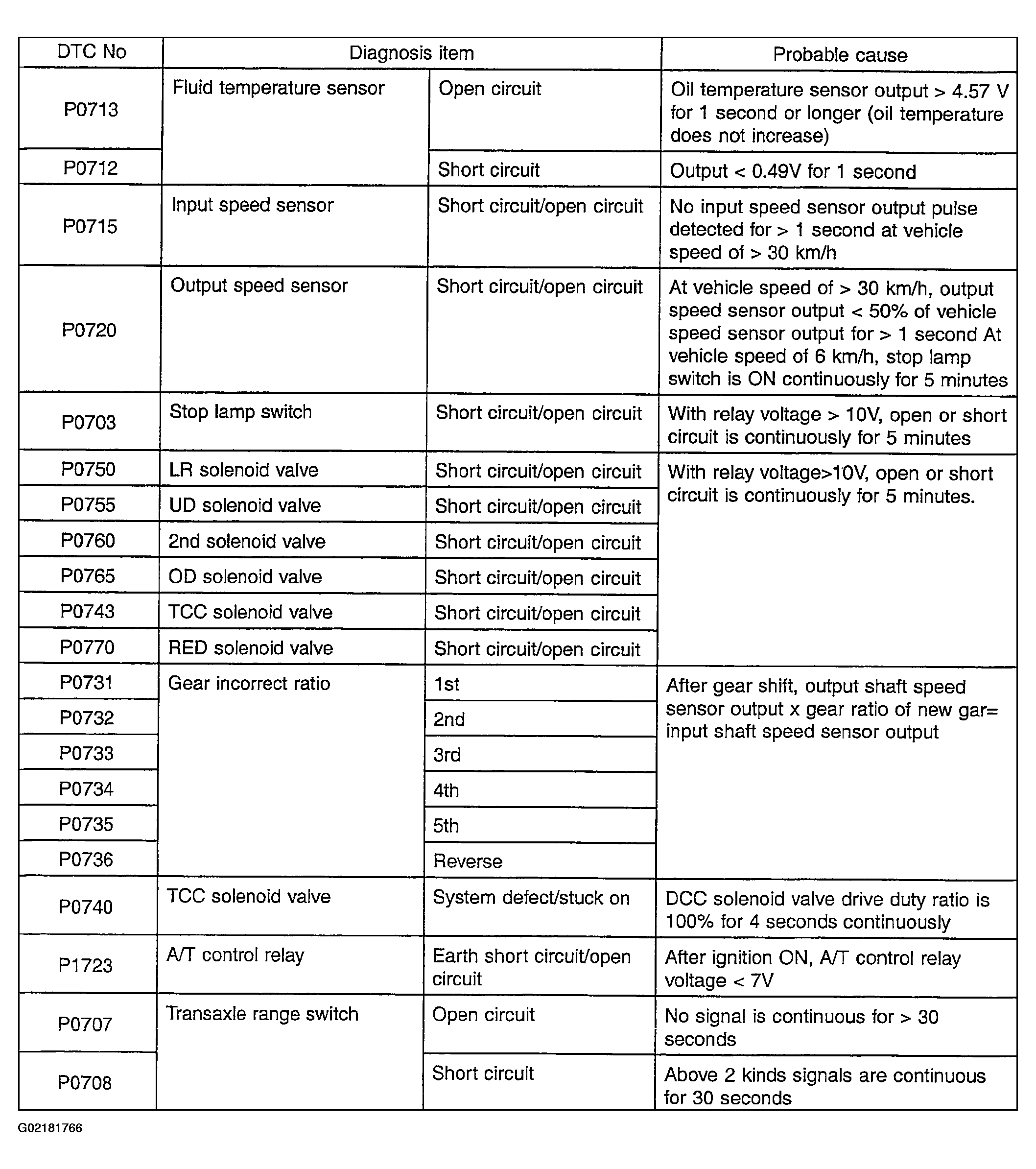

Fig 1: DTC Description Table (P0712, P0713, P0715, P0720, P0703, P0750, P0755, P0760, P0765, P0743, P0770, P0731, P0732, P0733, P0734, P0735, P0736, P0740, P1723, P0707 & P0708)
