Transaxle Range Switch Continuity Check

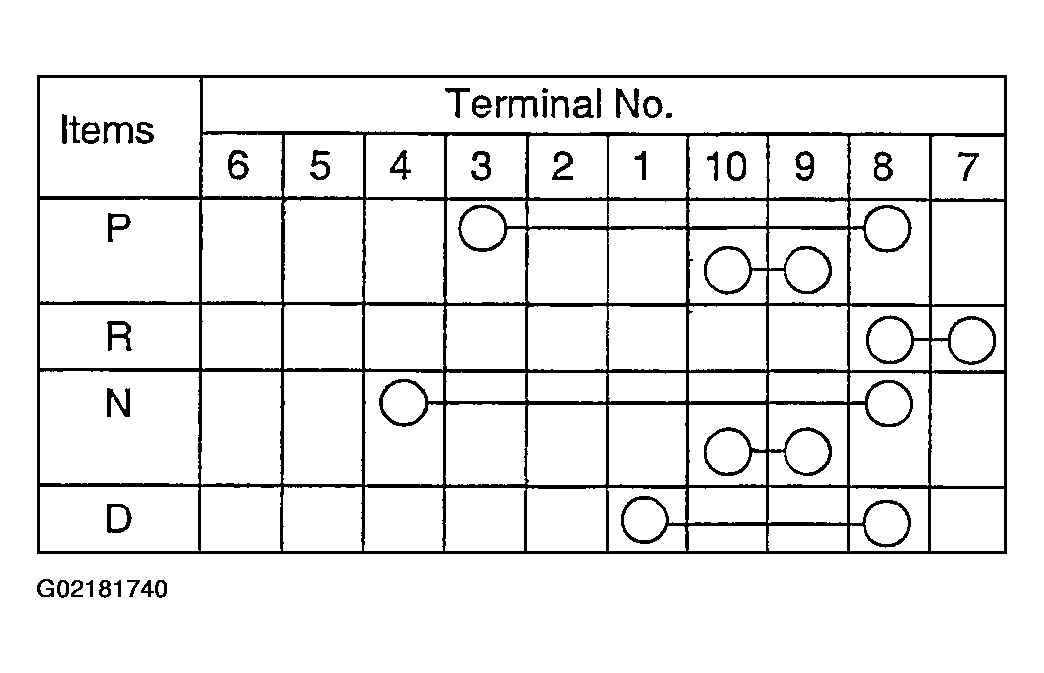

Fig 1: Transaxle Range Switch Continuity Table
G02181740

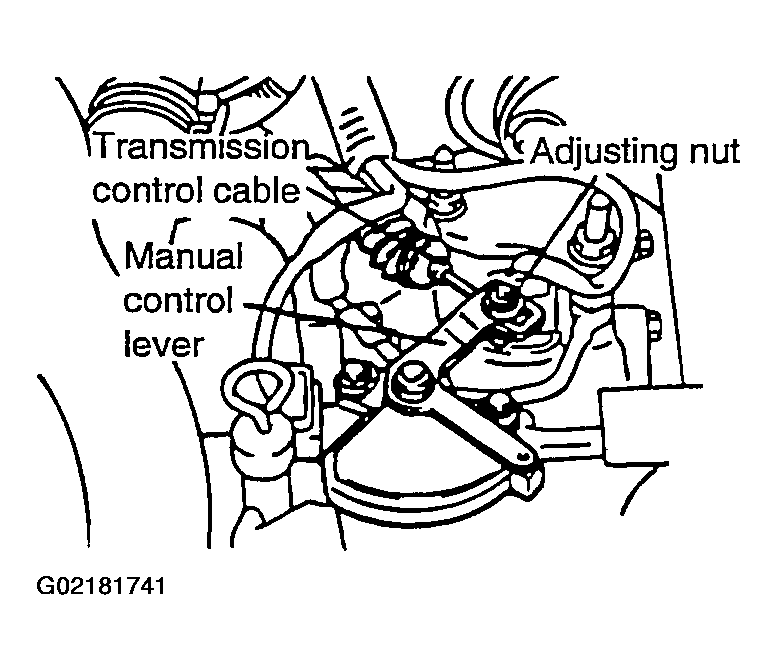

Fig 2: Identifying Transaxle Range Switch, Control Cable & Adjusting Nut
G02181741
Fig 3: Transaxle Range Switch Connector Terminals
G02181742
