Engine Lubrication System: Notes

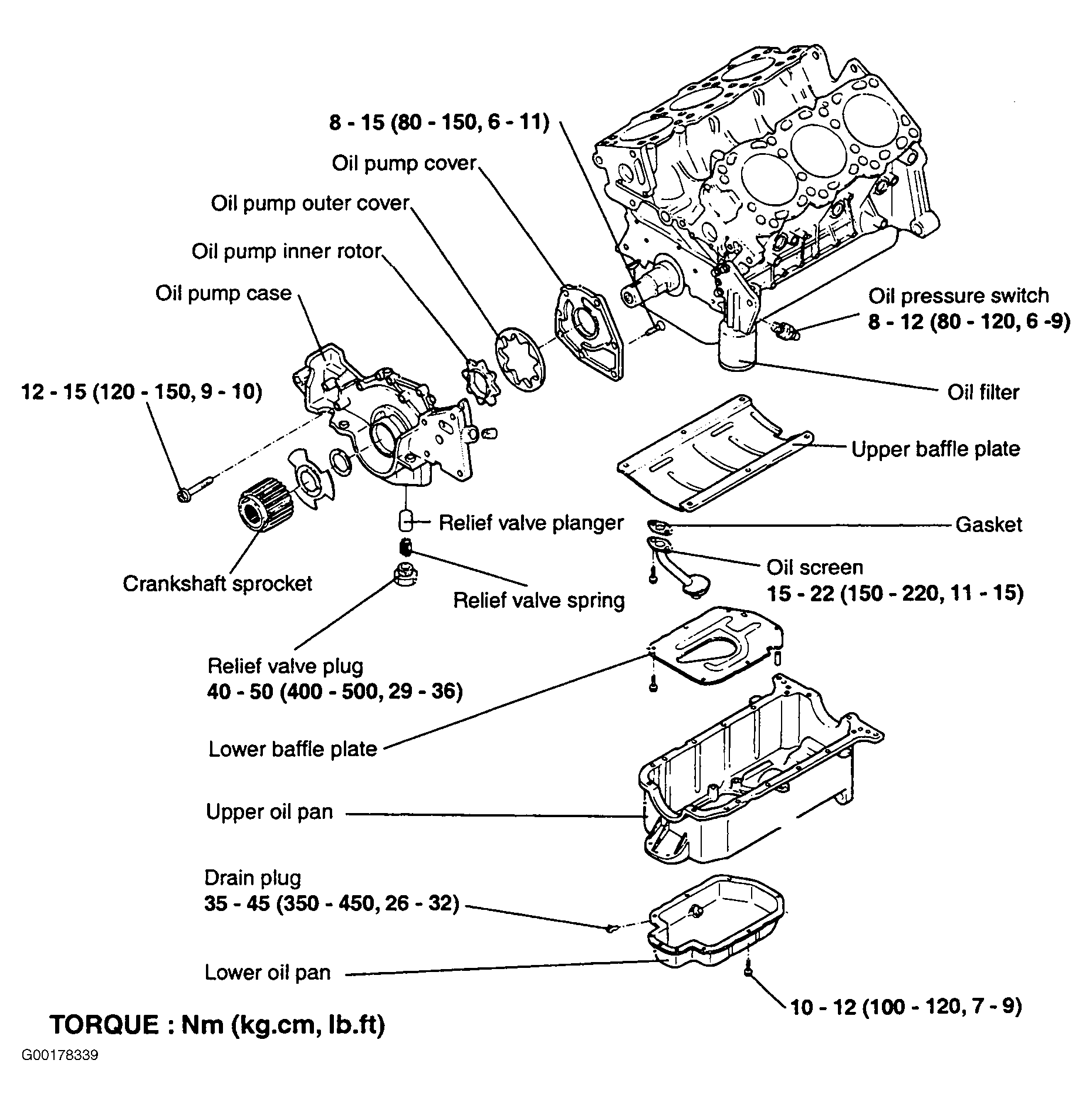

Timing belt-driven oil pump is mounted in front cover. Assembly uses a relief spring and plunger, located in oil pump case. Figure.
