Manual Transaxle Control: Assembly

  1. Apply multi-purpose grease to the sliding part of the bushings as shown in the illustration. Assembly is reverse of the disassembly.

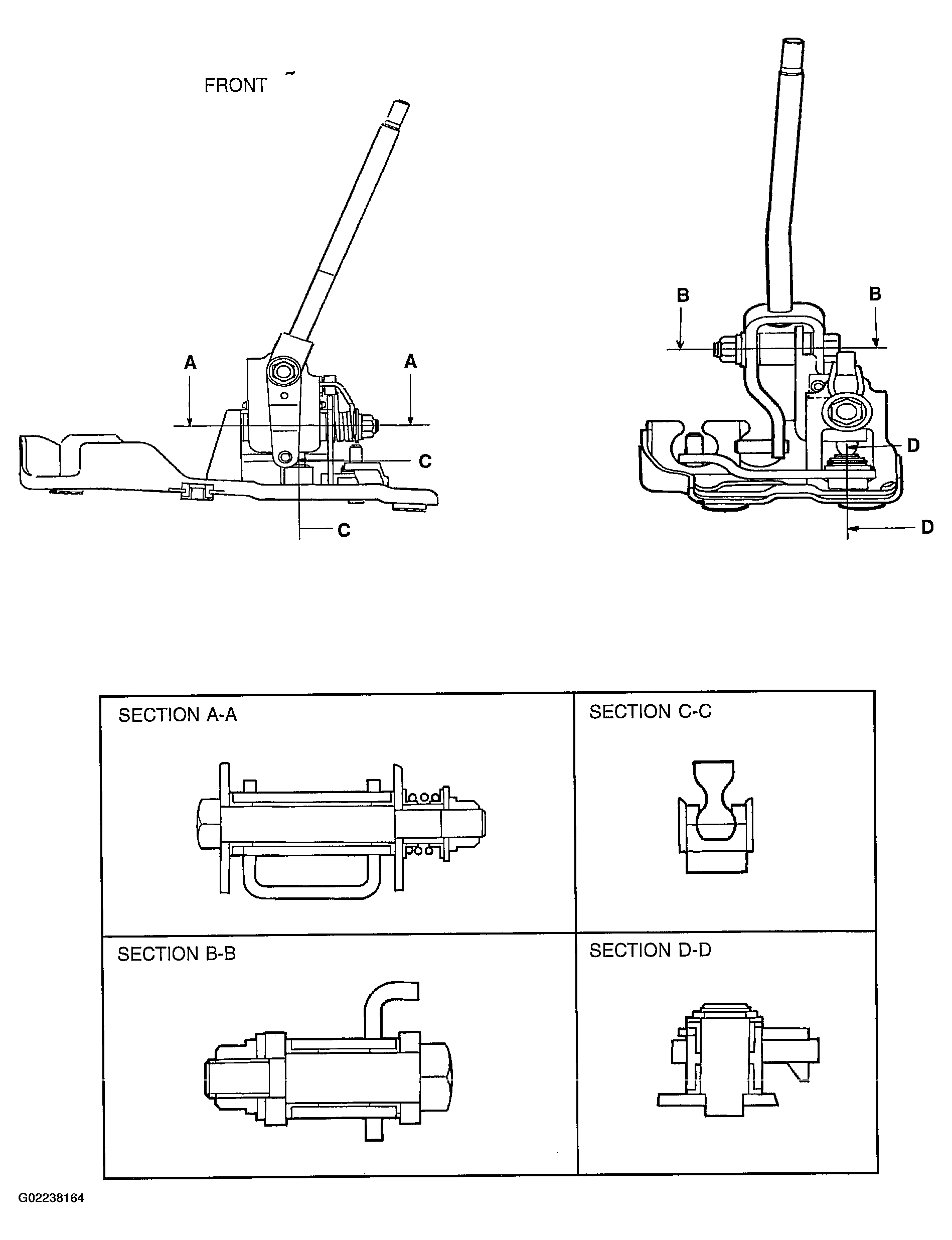

    Fig 1: Identifying Greasing Points
    G02238164
