Home >> Hyundai >> 2001 >> Tiburon Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission System >> General >> Specifications

Manual Transmission System: General: Specifications

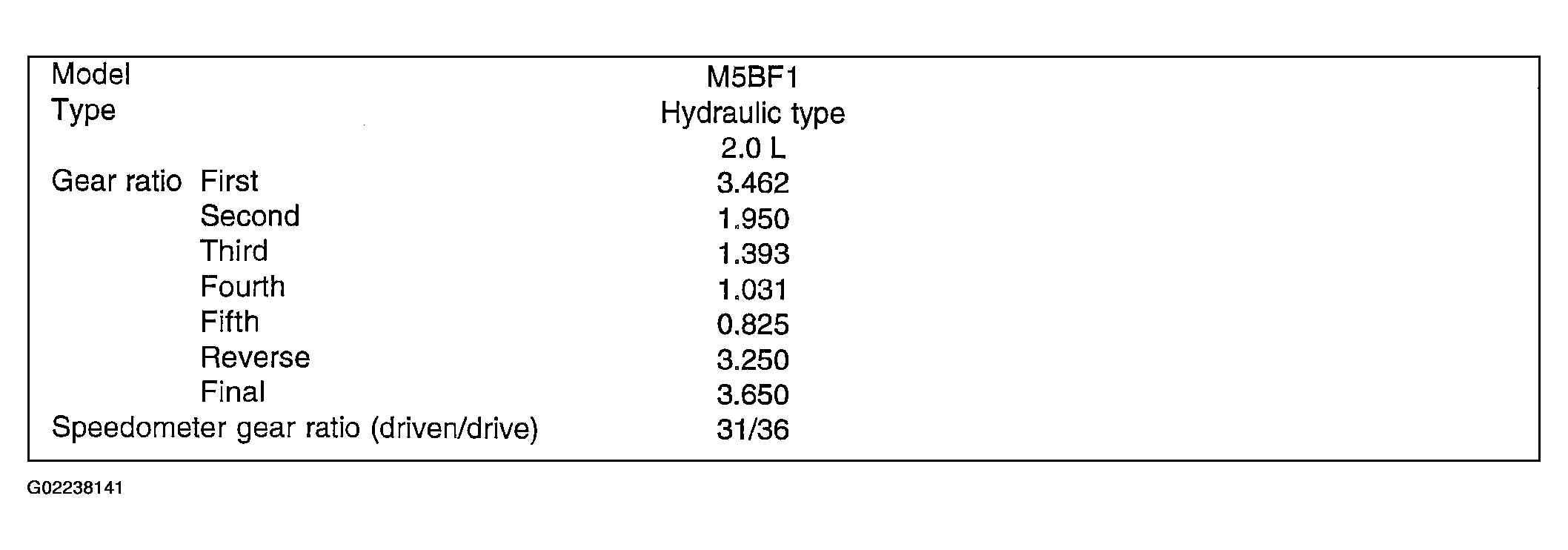

Fig 1: General Manual Transaxle/Transmission Specifications

G02238141
