Hi-Scan (Pro) Check

Turn the ignition OFF.
Connect the Hi-Scan (Pro) to the data link connector located underneath low crash pad panel.
Turn the ignition ON.

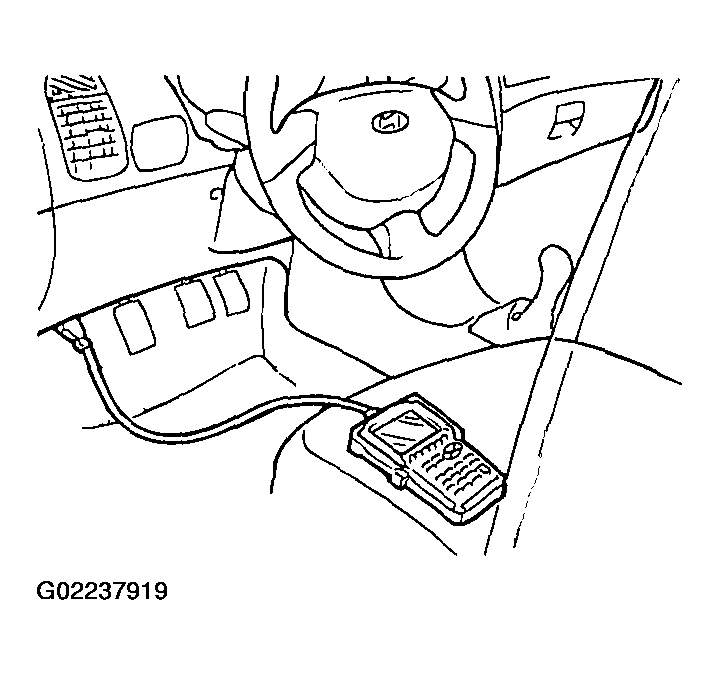

Fig 1: View Of Scan Tool Installed
Use the Hi-Scan (Pro) to check the self-diagnosis codes.
After completion of the repair or correction of the problems, turn the ignition switch; then erase the stored faults codes using the clear key.
Disconnect the Hi-Scan (Pro).

Fig 2: Identifying DLC Terminals
