Inspection Procedure 11

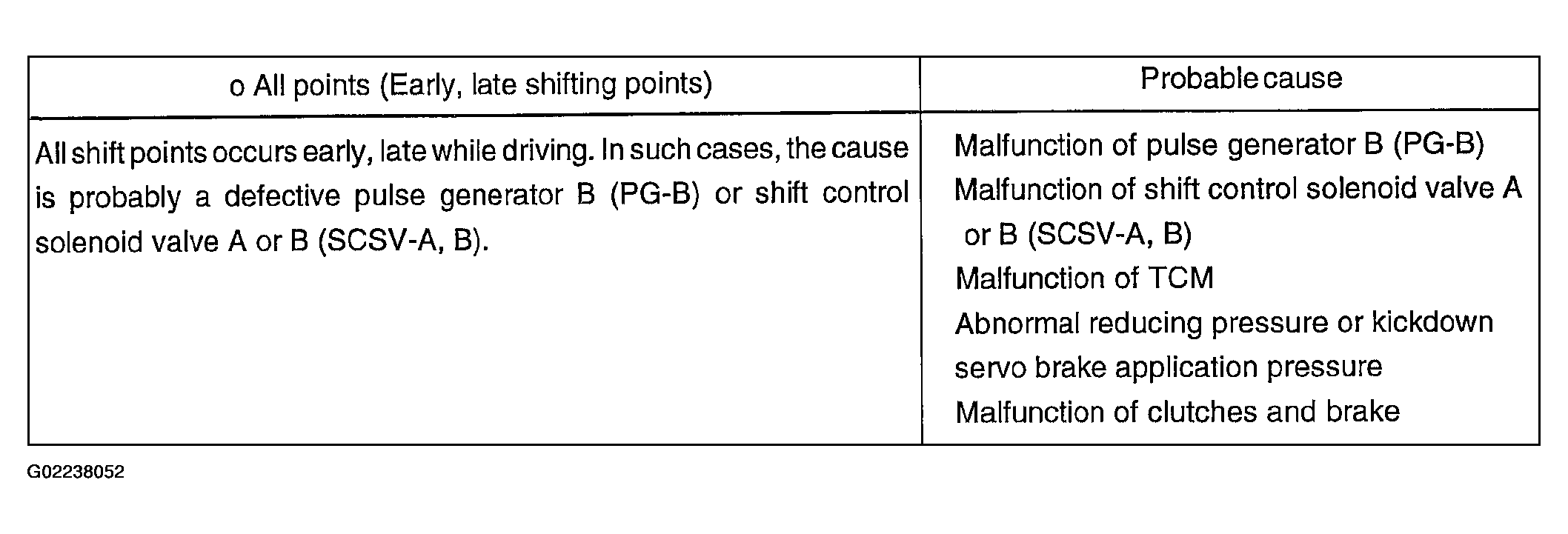

Fig 1: All Points (Displaced Shifting Points), Possible Causes Table

G02238052

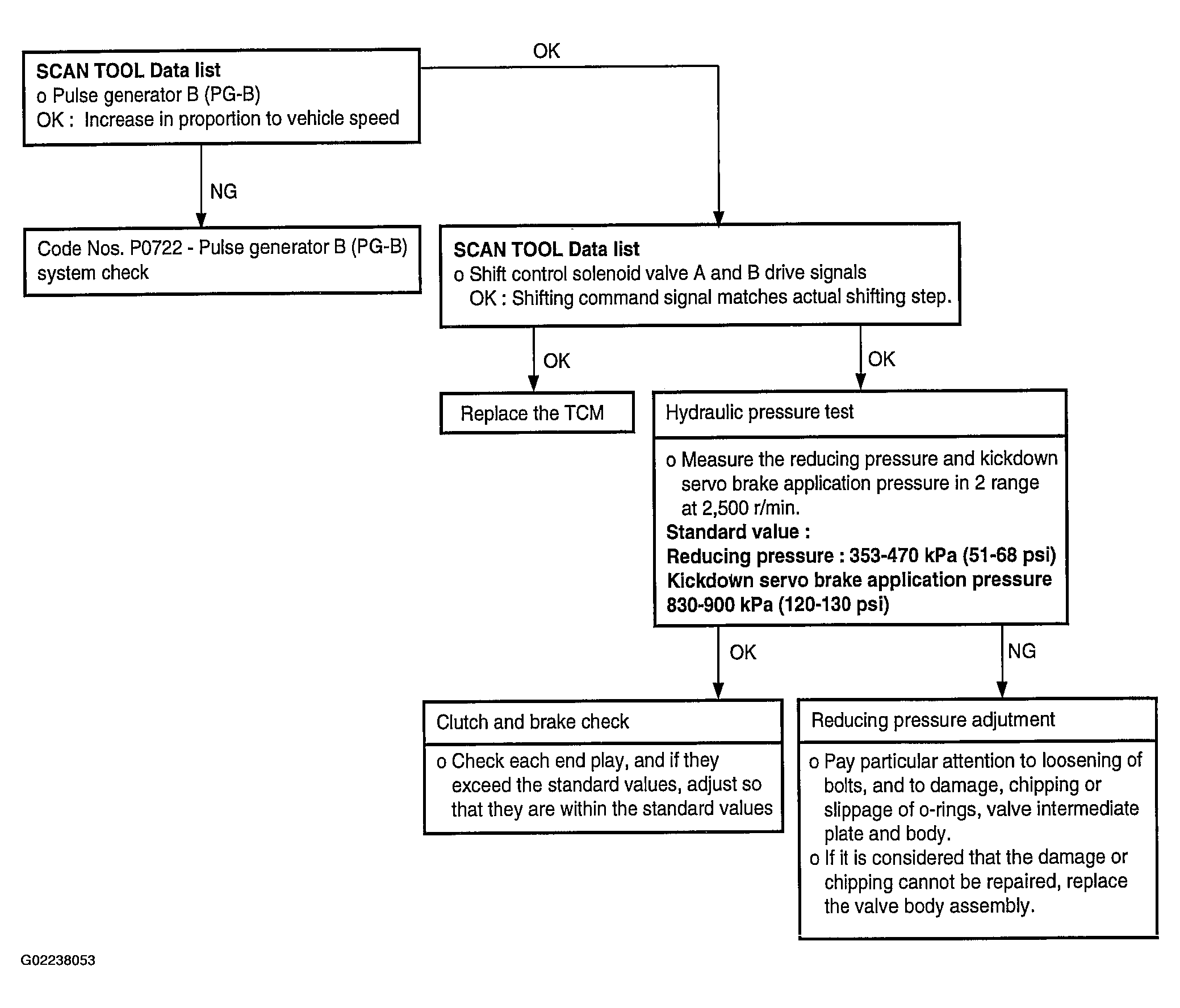

Fig 2: All Points (Displaced Shifting Points), Diagnostic Flow Chart

G02238053
