Home >> Hyundai >> 2001 >> Tiburon Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System Troubleshooting >> Troubleshooting (A/T) >> Element In Use At Each Position Of Selector Lever

Element In Use At Each Position Of Selector Lever

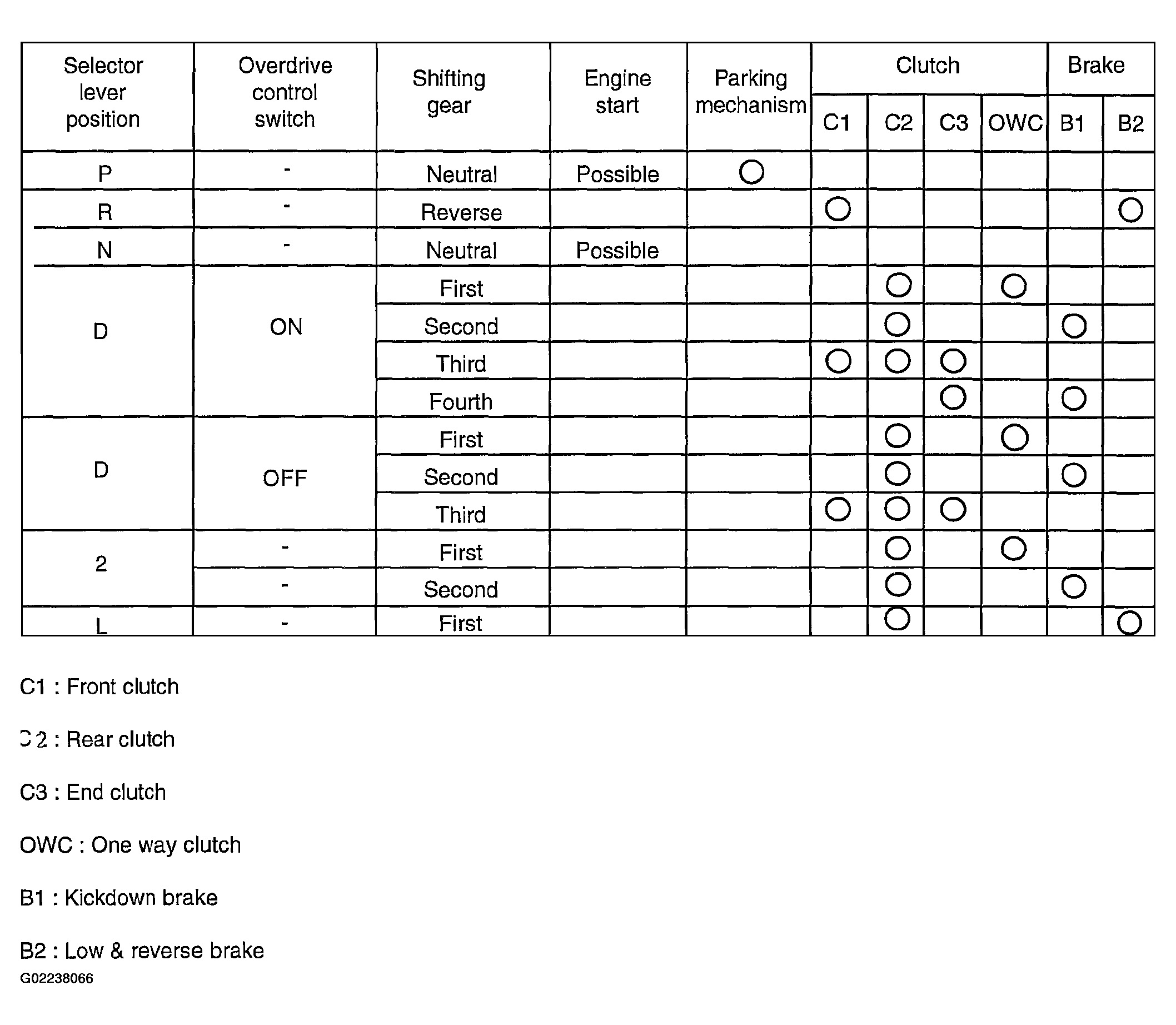

Fig 1: Element In Use At Each Position Of Selector Lever Table
G02238066
