Inspection Procedure 14

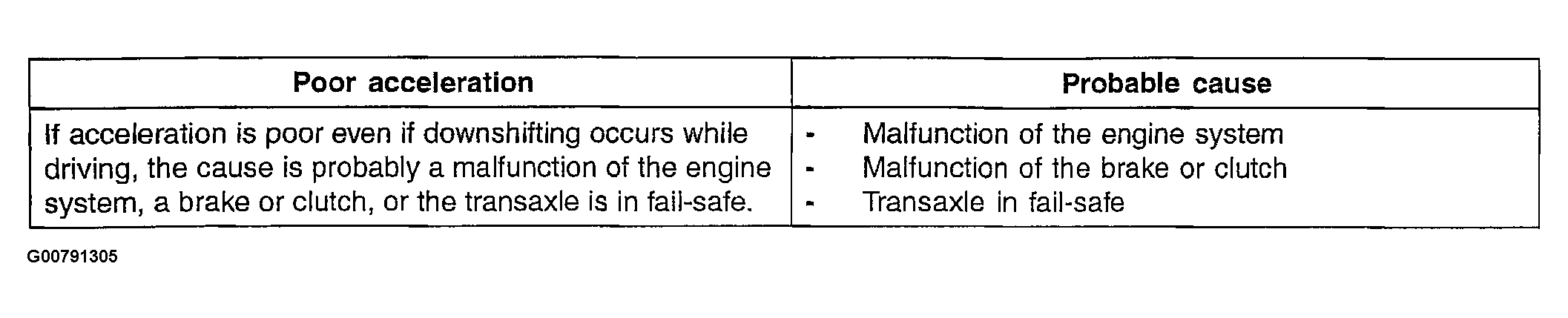

Fig 1: Inspection Procedure 14 Definitions & Probable Causes

G00791305

Courtesy of HYUNDAI MOTOR CO.

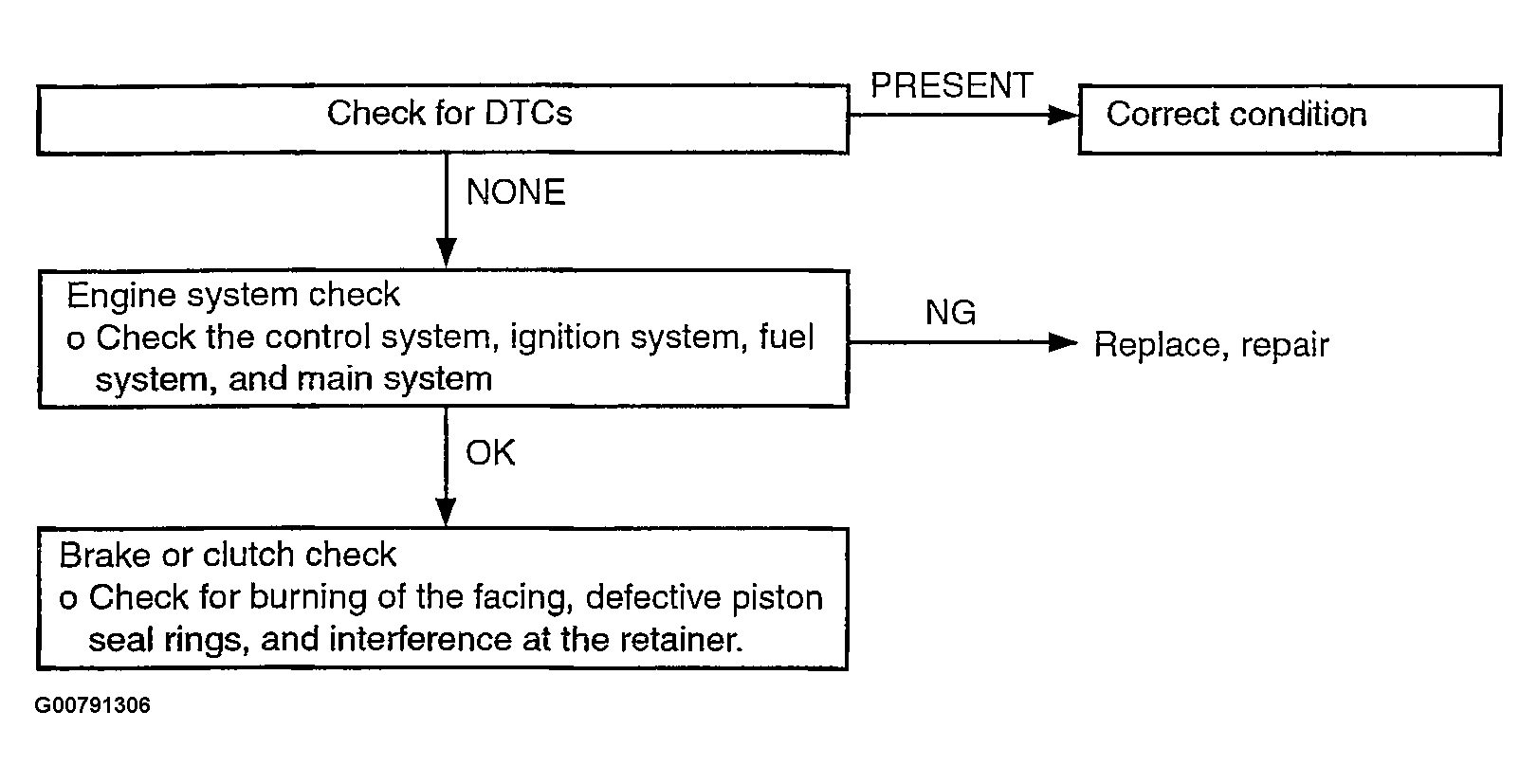

Fig 2: Inspection Procedure 14 Diagnostic Flow Chart

G00791306

Courtesy of HYUNDAI MOTOR CO.
