Automatic Transaxle Hydraulic Circuit: First

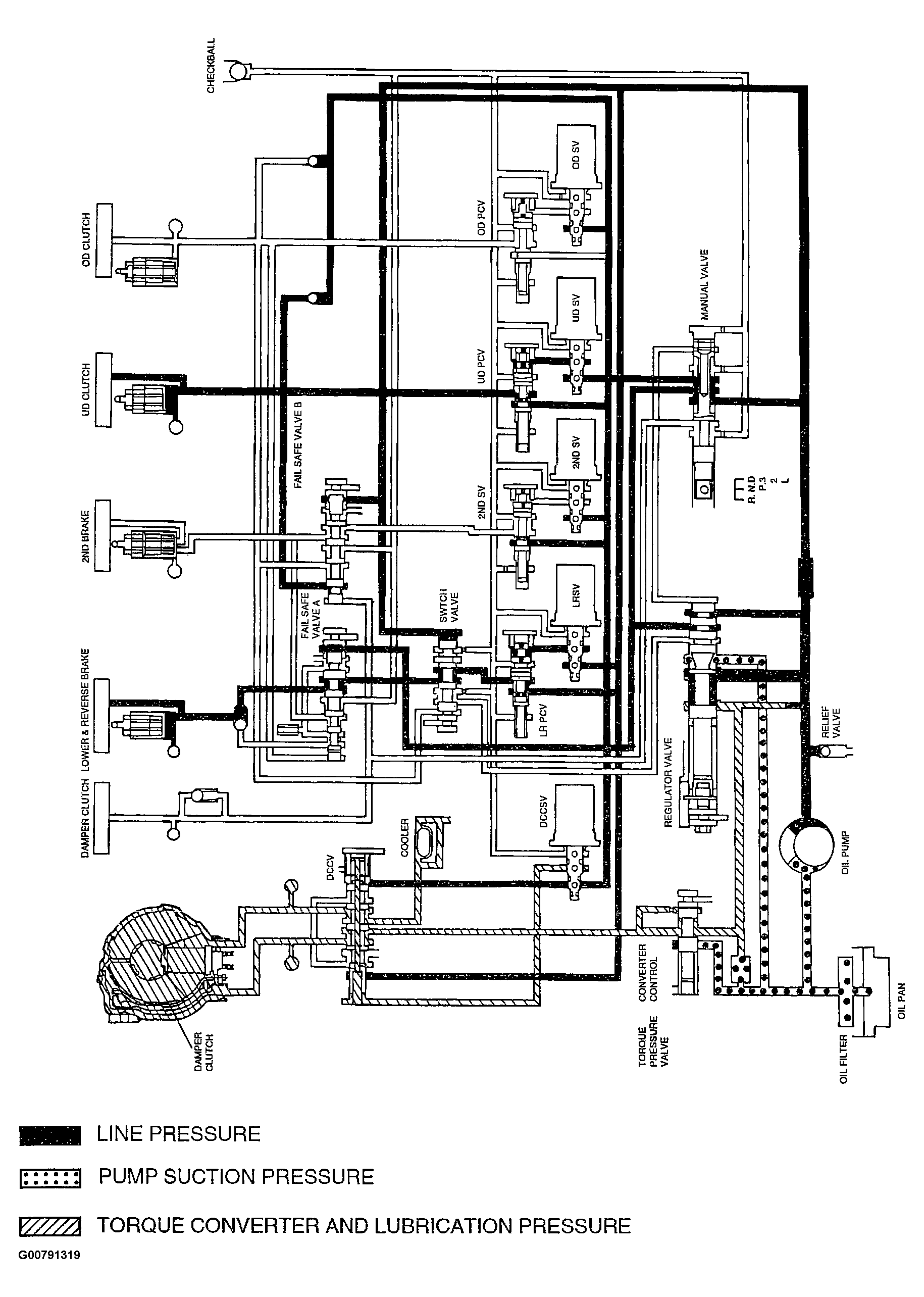

Fig 1: First Gear Hydraulic Circuit

G00791319

Courtesy of HYUNDAI MOTOR CO.
