2-3 Shift Flare TCM - Reprogramming Instructions (02-40-001)

WARNING: This page is about the Elantra GLS, 4D Hatchback, which is a different variant/trim than selected.

Publication date: 2002-01-01
Reference number: 02-40-001

2-3 SHIFT FLARE TCM - REPROGRAMMING INSTRUCTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-40-001, Date of Issue: January, 2002

HYUNDAI:	2001-2002 Elantra
GROUP:	Transaxle

DESCRIPTION

2001-02 ELANTRA 2-3 SHIFT FLARE TCM REPROGRAMMING INSTRUCTIONS

Some 2001-02 Elantra vehicles may experience a 2-3 shift flare condition (engine speed increases during shift). The following procedure describes updating the TCM (Transaxle Control Module) software by using the Hi-Scan Pro.

BULLETIN CONTENT

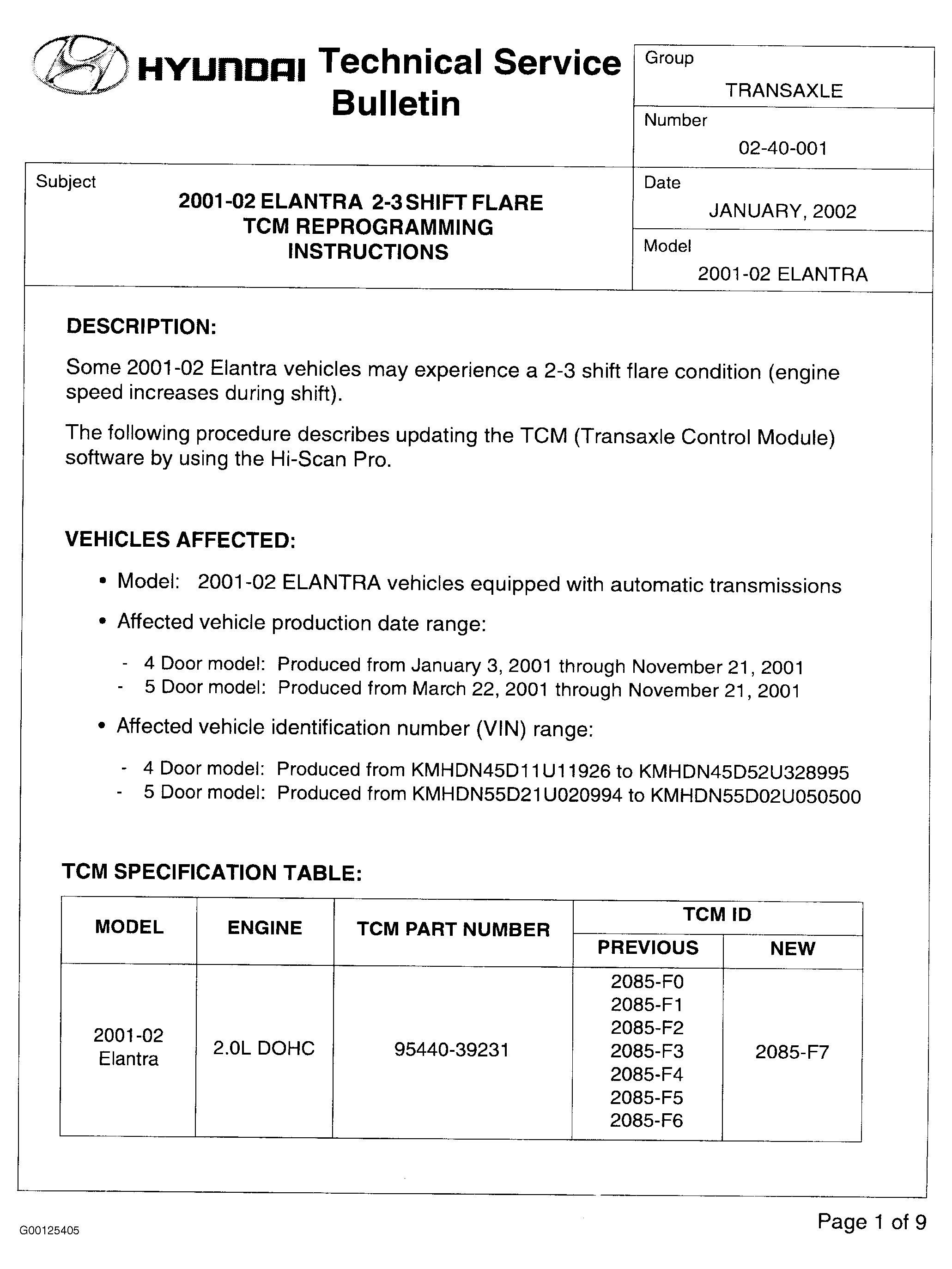

Fig 1: Page 1 of Bulletin

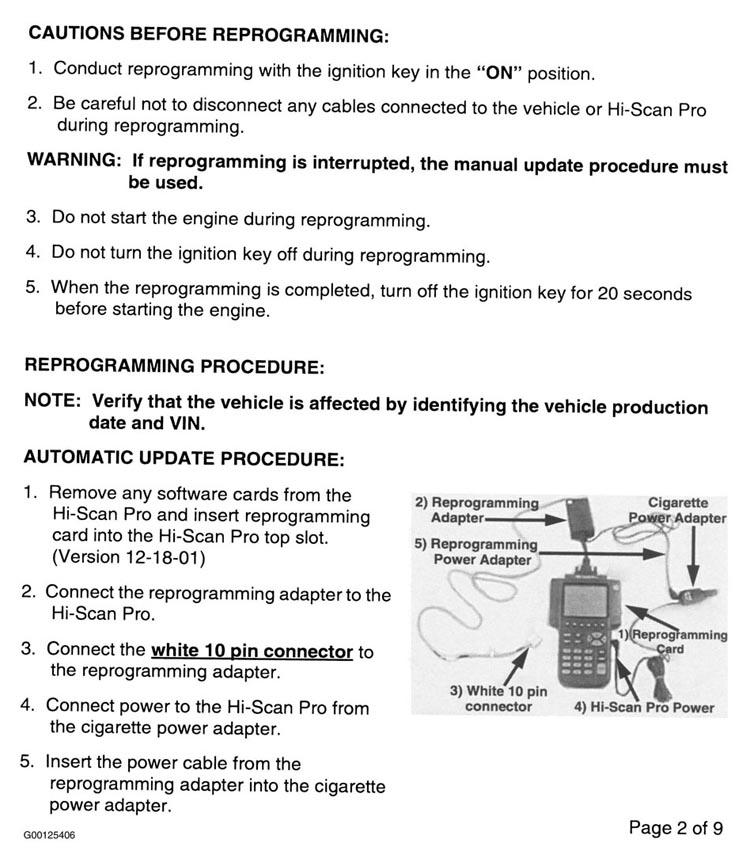

Fig 2: Page 2 of Bulletin

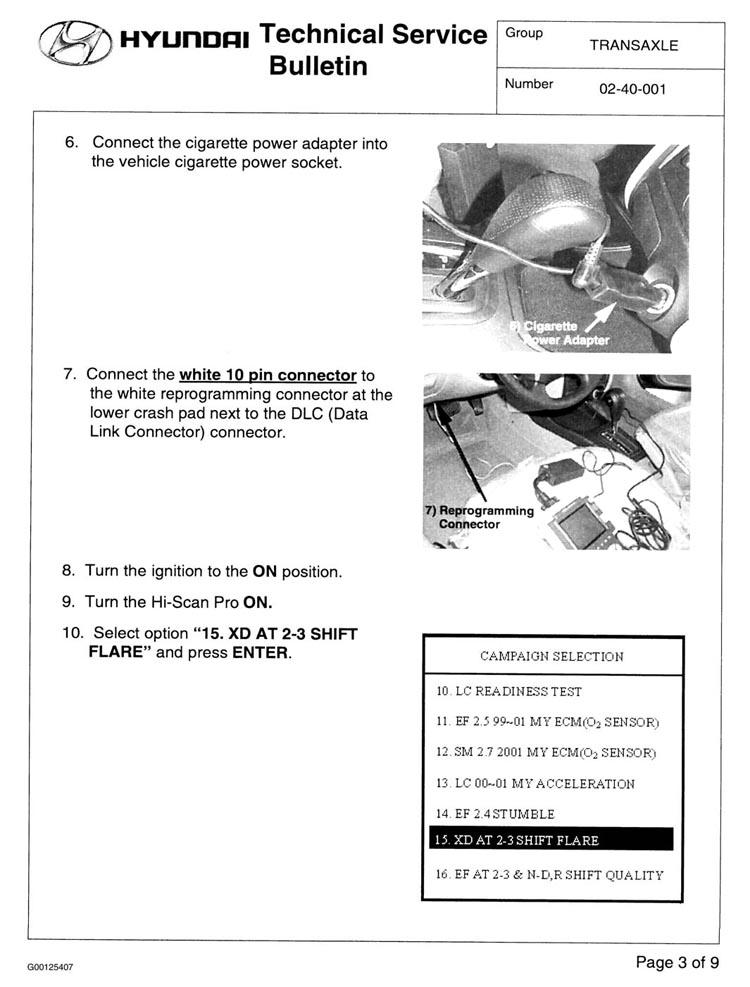

Fig 3: Page 3 of Bulletin

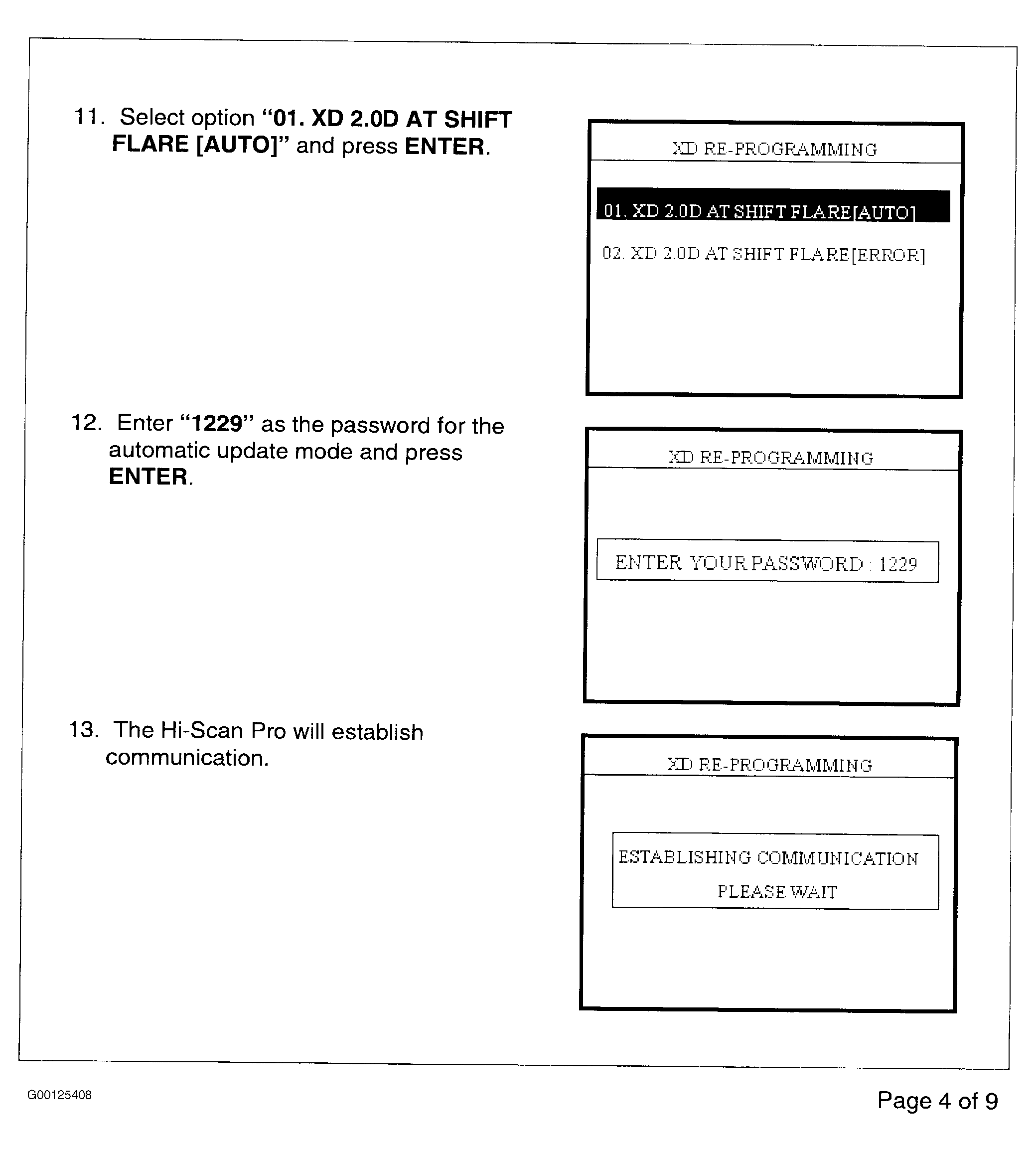

Fig 4: Page 4 of Bulletin

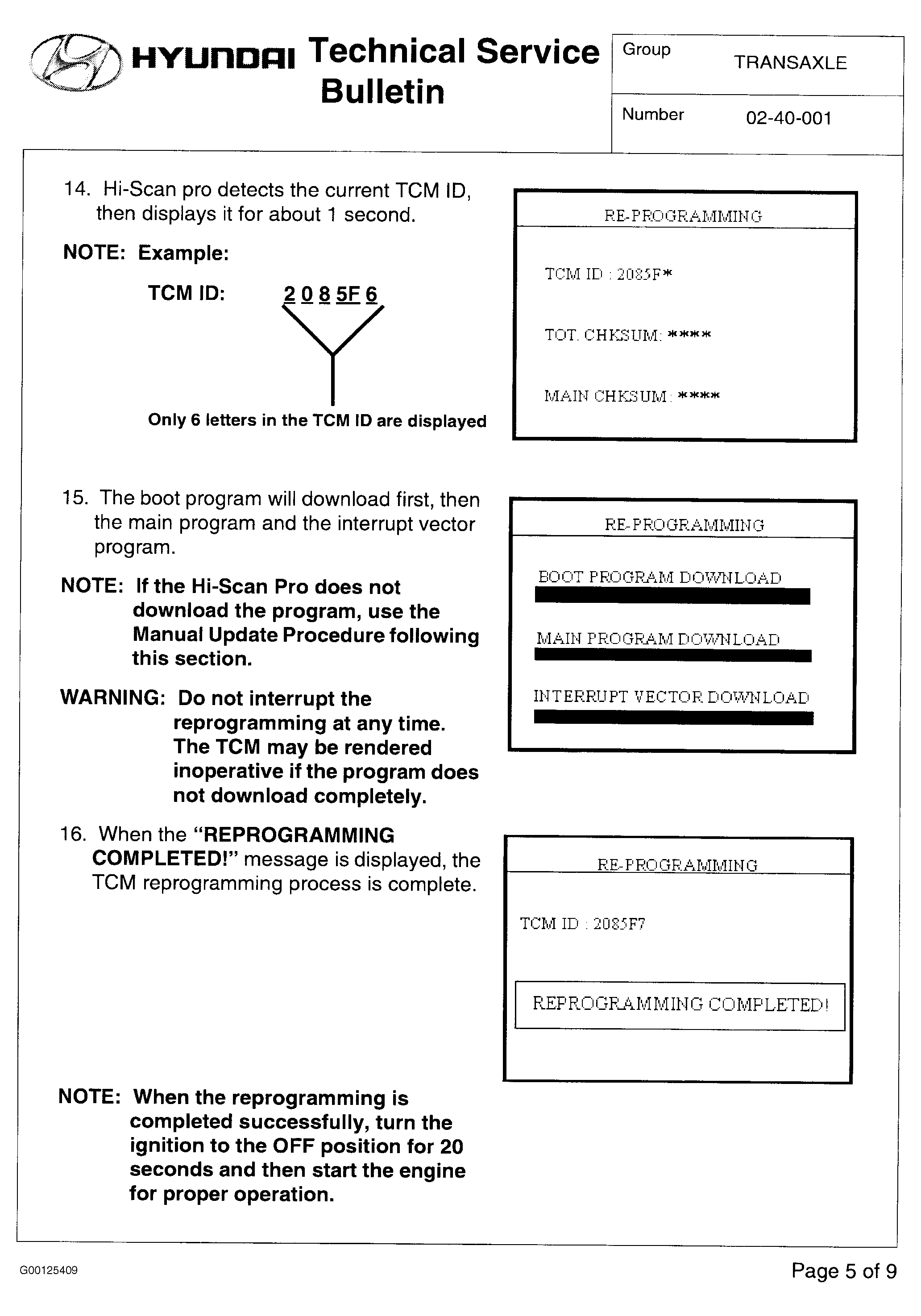

Fig 5: Page 5 of Bulletin

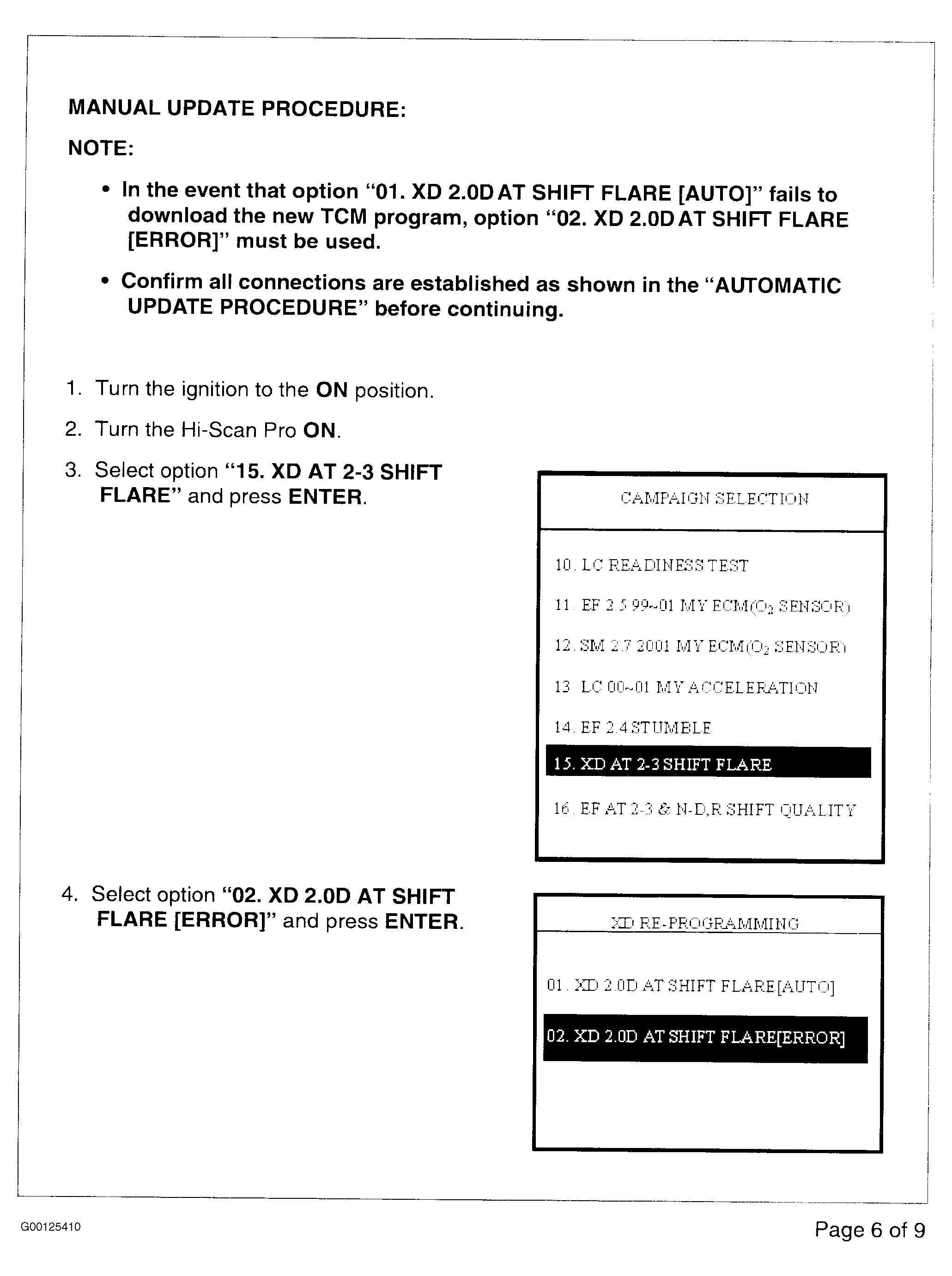

Fig 6: Page 6 of Bulletin

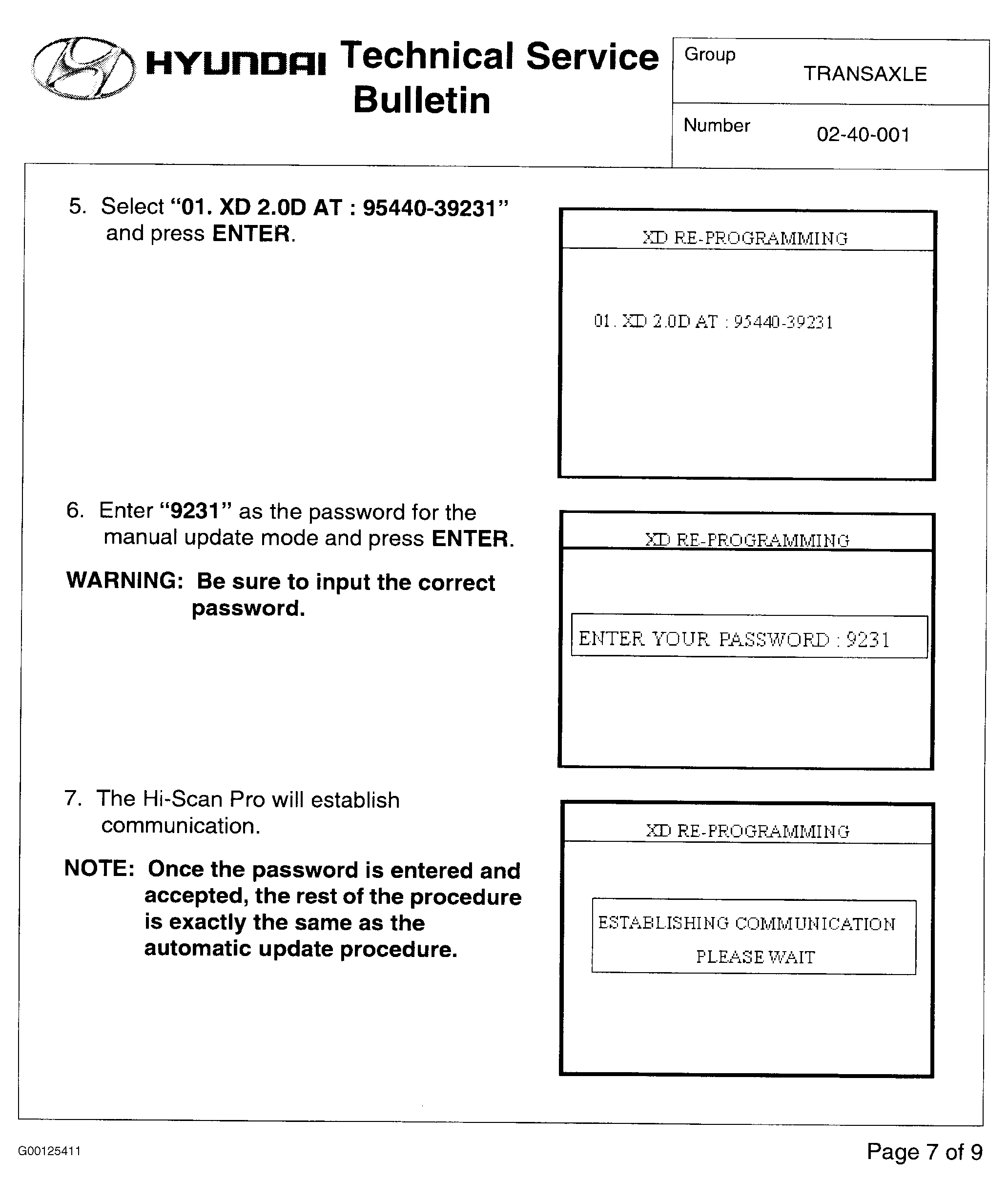

Fig 7: Page 7 of Bulletin

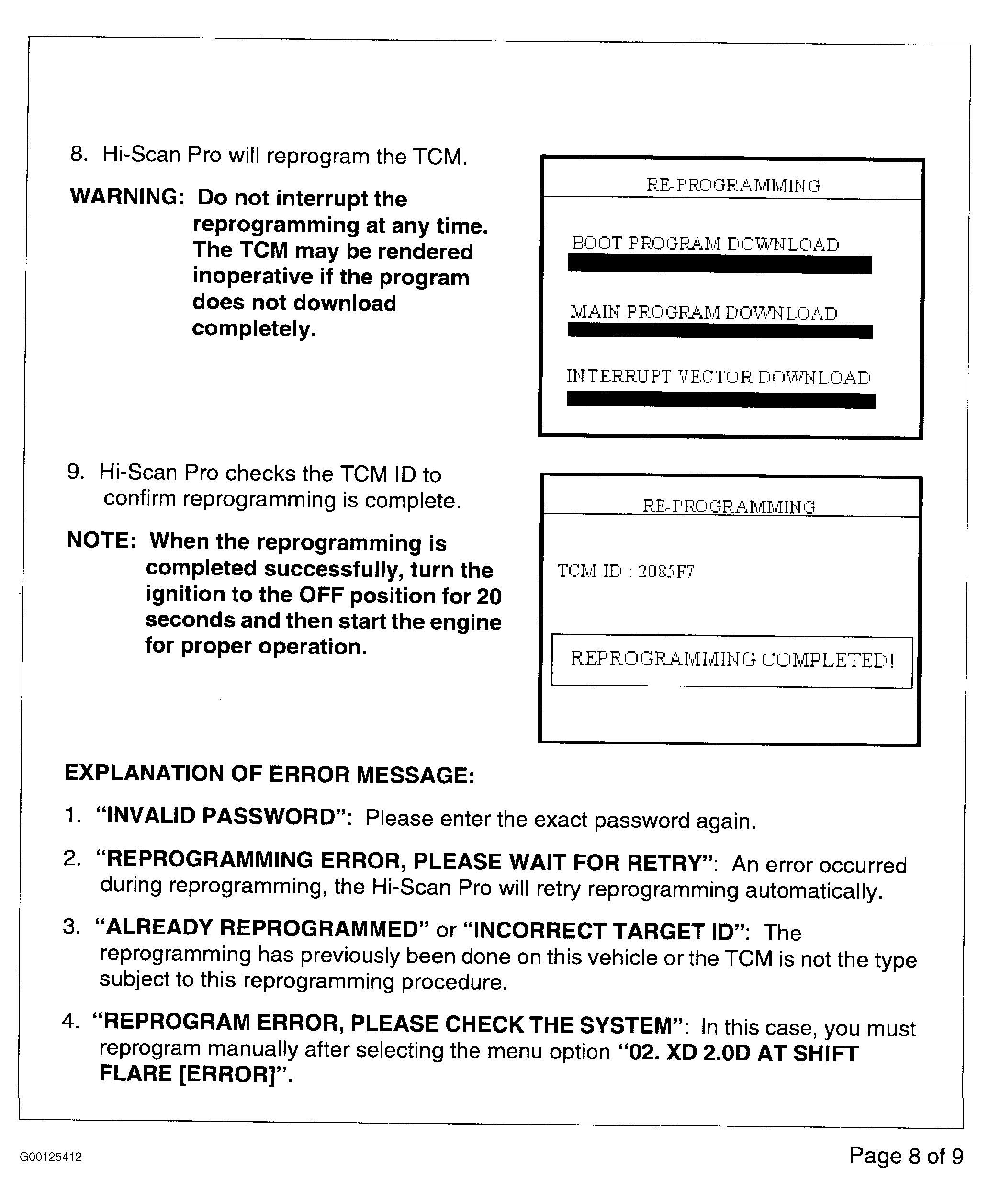

Fig 8: Page 8 of Bulletin

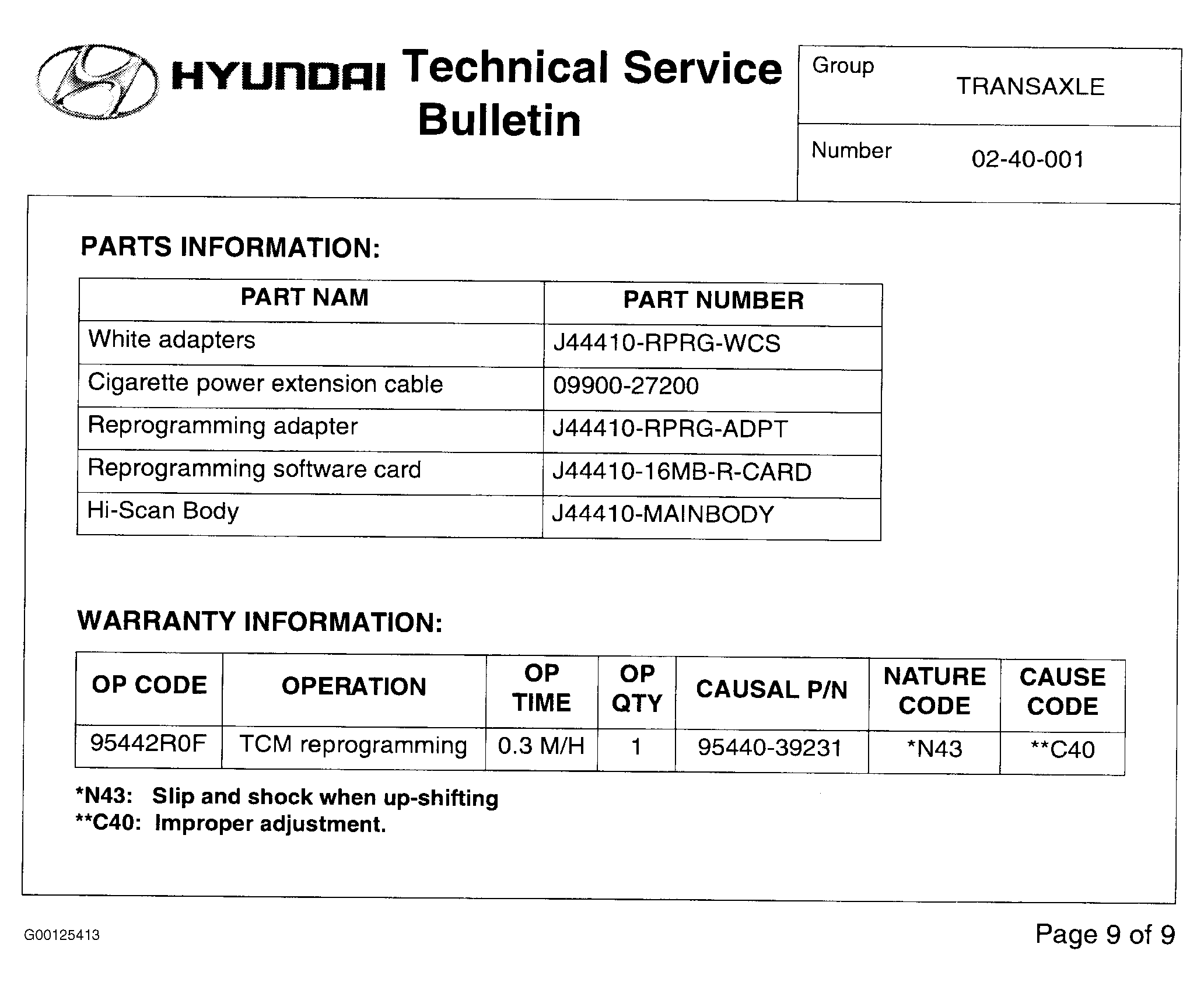

Fig 9: Page 9 of Bulletin
