Anti-Lock Braking System Control Module: Removal

Disconnect the brake tubes from the HECU.

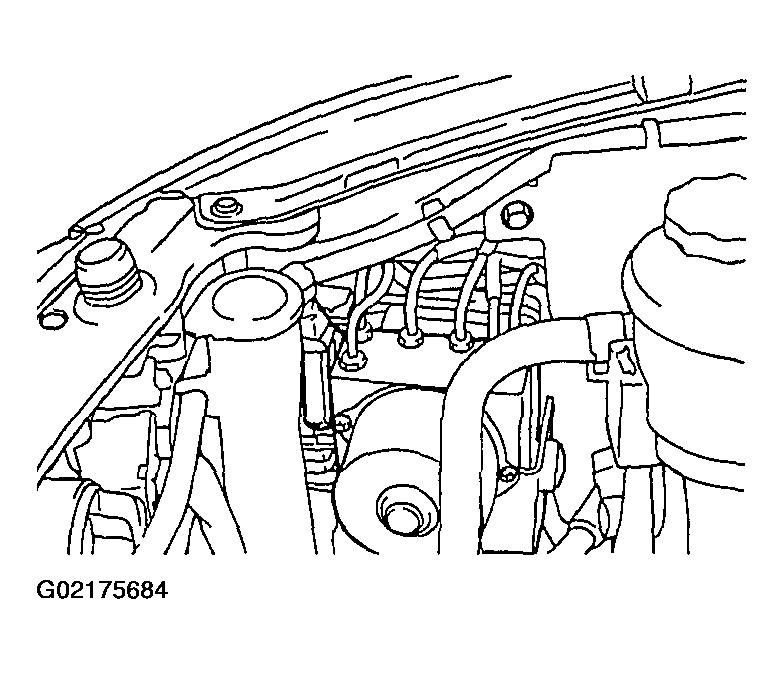

Fig 1: Identifying Brake Tubes & HECU
Remove the HECU bracket mounting bolt and remove the HECU.
CAUTION:
1. Never attempt to disassemble the HECU.
2. The HECU must be transported and stored in an upright position and with the ports sealed. The HECU must not be drained.

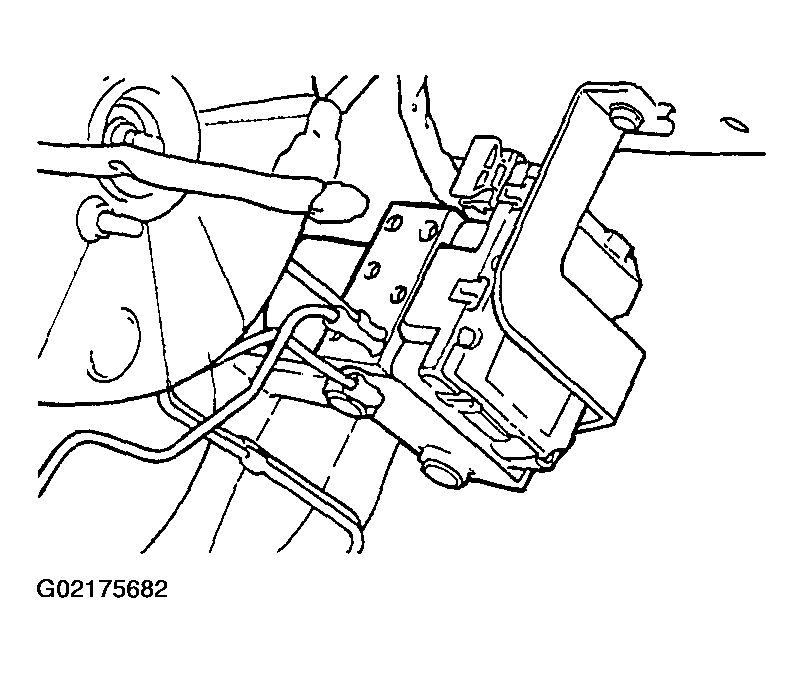

Fig 2: Identifying HECU
Disconnect the HECU (Hydraulic and Electronic Control Unit) and motor connector.

Fig 3: View Of HECU
