Automatic Transaxle Hydraulic Circuit: Lock

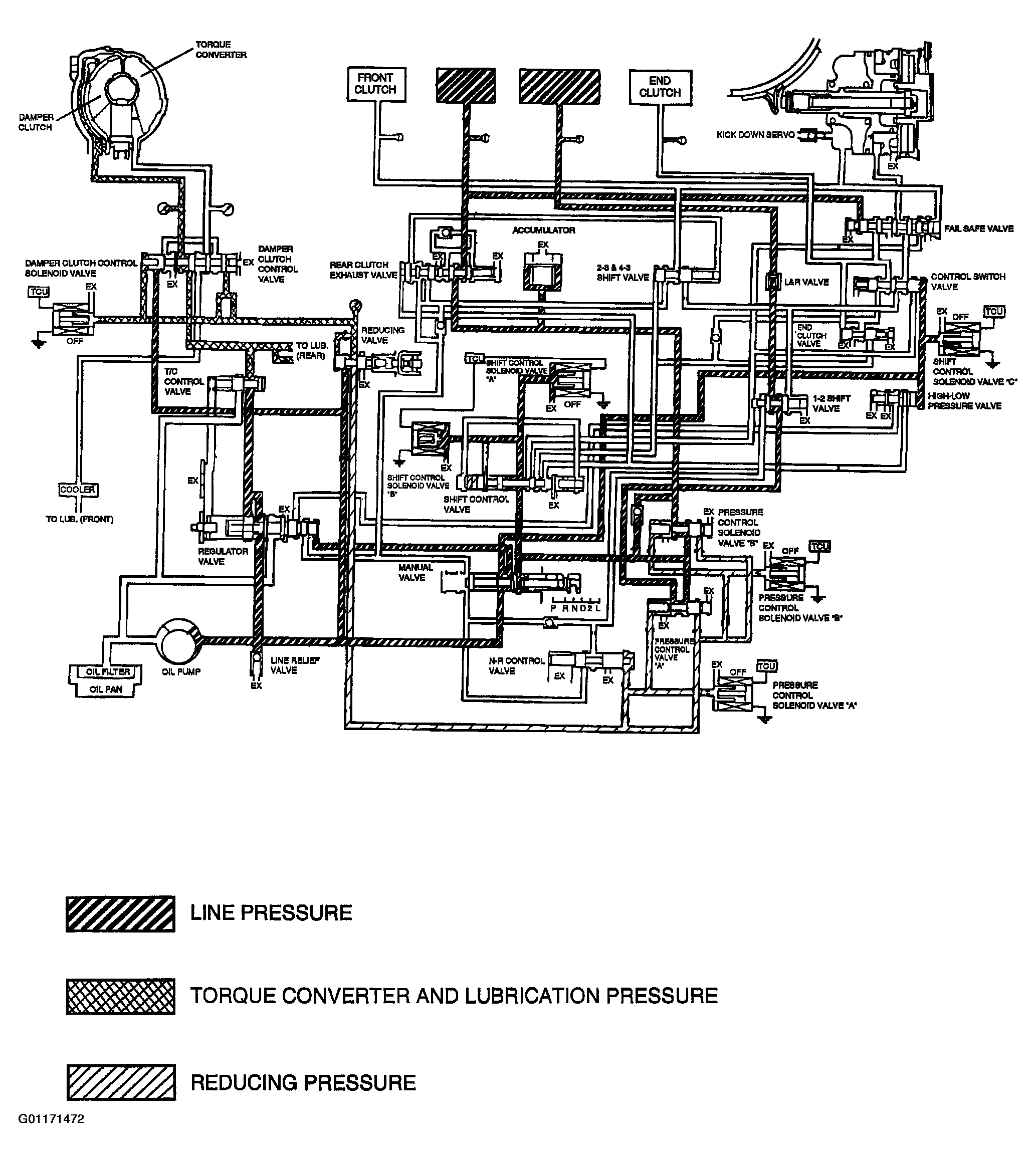

Fig 1: Automatic Transaxle Hydraulic Circuit - Lock

G01171472

Courtesy of HYUNDAI MOTOR CO.
